Archer D5 AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
11
Note:
1) Do not mix up the user name and password with your ADSL account user name and password
which are needed for PPP connections.
2) If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu→Internet Options→Connections→LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.

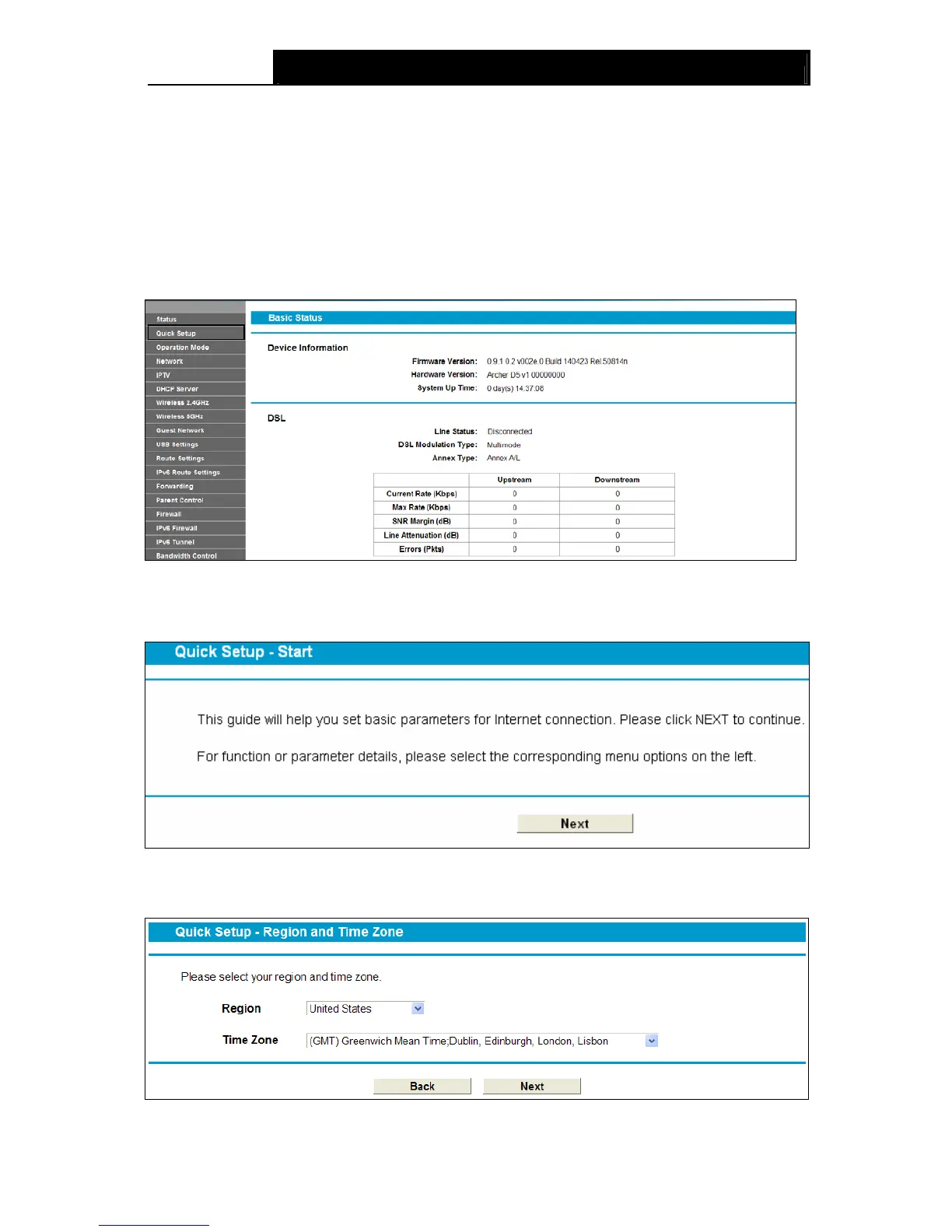

2. After your successful login, you will see the Login screen as shown in Figure 3-3. Click
Quick Setup menu to access Quick Setup Wizard.
Figure 3-3
3. The Quick Setup page will appear for you to quickly configure your modem router. And then
click Next to continue.
Figure 3-4
4.
Select the Region and the Time Zone from the drop-down list, then click Next.
Figure 3-5
