TP-Link Archer D7

Archer D7 AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
35

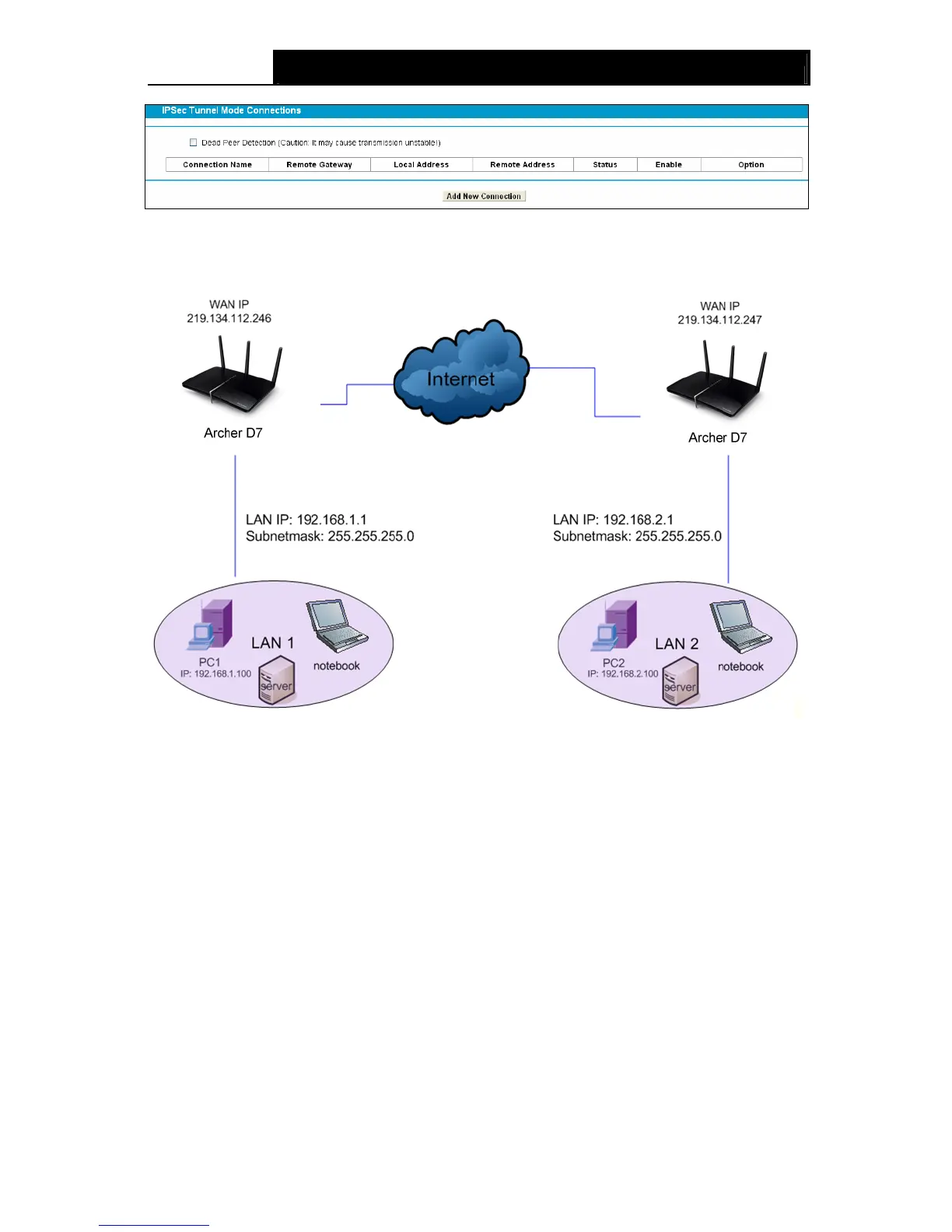

Figure 4-21
This section will guide you to configure a VPN tunnel between two Archer D7s. The topology is as
follows.

Note:
You could also use other VPN Routers to set VPN tunnels with Archer D7. Archer D7 supports up
to 10 VPN tunnels simultaneously.
Click Add New Connection in Figure 4-21 and then you will enter the screen shown in Figure
4-22.
