Chapter 1
Get to Know About Your Router
1. 2. 2. The Back Panel

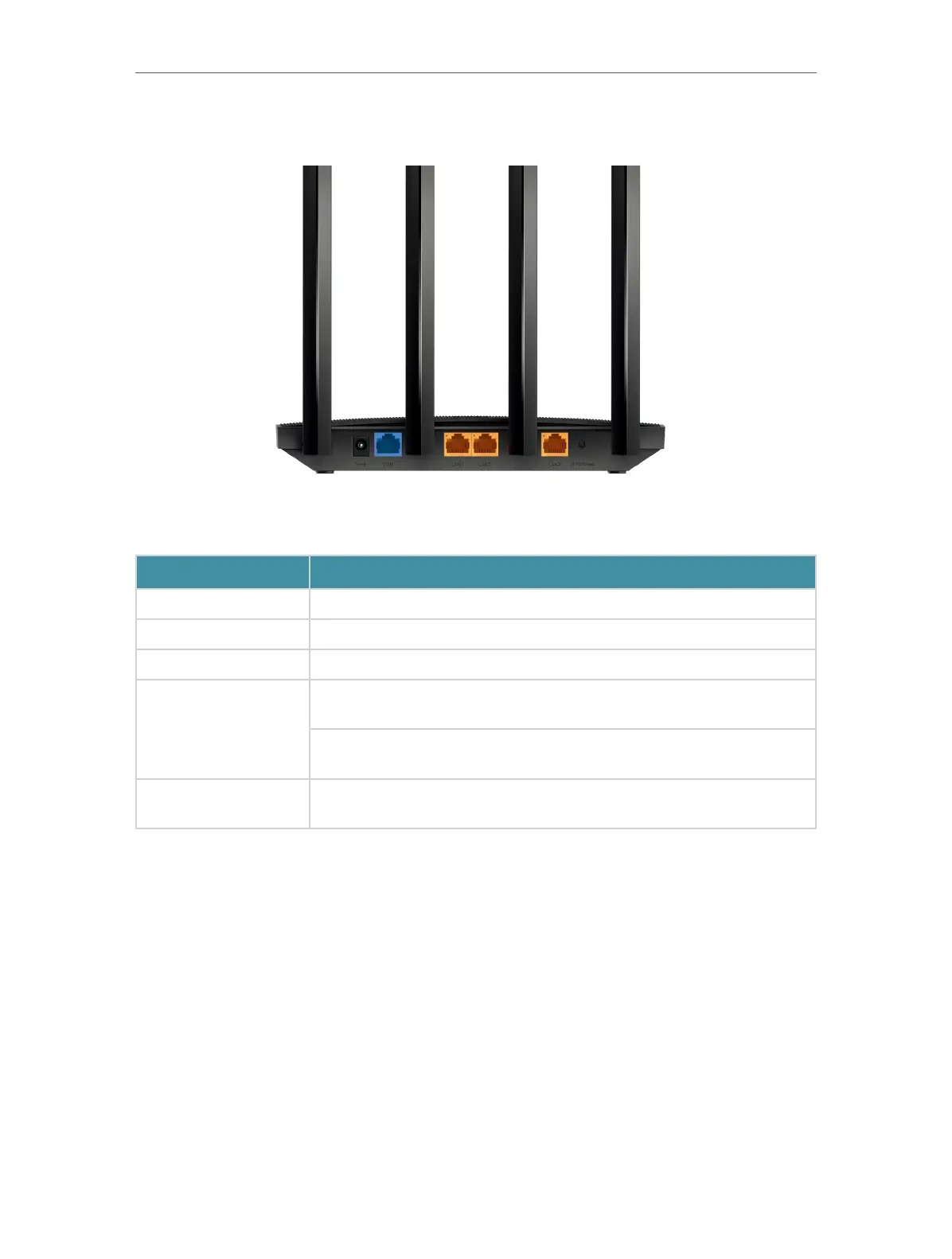

The following parts (view from right to left) are located on the back panel.
Button and Port Explanation
Item Description
Power Port For connecting the router to a power socket via the provided power adapter.
WAN Port For connecting to a DSL/Cable modem, or an Ethernet jack.
LAN Ports (1/2/3) For connecting your PC or other wired devices to the router.
WPS/Reset Button
Press the button for 1 second, and immediately press the WPS button on
your client to start the WPS process.
Press and hold the button for about 6 seconds until the Power LED blinks to
reset the router to its factory default settings.
Antennas
Used for wireless operation and data transmit. Upright them for the best
Wi-Fi performance.
