JetStream L2 Managed Switch
06 Introduction
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. For
T2500G-10MPS/T2600G-28MPS, the port can also provide power for PDs.
SFP Port
Designed to install the 1Gbps SFP module. For T2600G-28SQ, ports 17-24 also support 100Mbps
SFP module.
SFP+ Port
Designed to install the 10Gbps SFP+ module.
Combo Ports
A Combo port consists of one RJ45 port and one SFP port, and they share the same port ID. The
SFP port and the associated RJ45 port cannot work simultaneously. If both of the two ports are
connected, only the SFP port works.
For T2500-28TC, RJ45 ports 25-28 and SFP ports 25-28 are combo ports; For T2600G-28SQ, RJ45
ports 21-24 and SFP ports 21-24 are combo ports.
Port Feature
Model
10/100/1000Mbps
RJ45 Port
10/100Mbps RJ45
Port
SFP Port SFP+ Port
Console
Port
TL-SG5412F 4 0 12 0 1
T250 0G-10TS 8 0 2 0 2
T2500-28TC 4 24 4 0 1
T250 0G-10 M PS 8 0 2 0 2
T2600G-18TS 16 0 2 0 2
T2600G-28TS 24 0 4 0 2
T2600G-28TS-DC 24 0 4 0 2
T2600G-28MPS 24 0 4 0 2
T2600G-28SQ 4 0 24 4 2
T2600G-52TS 48 0 4 0 2
■

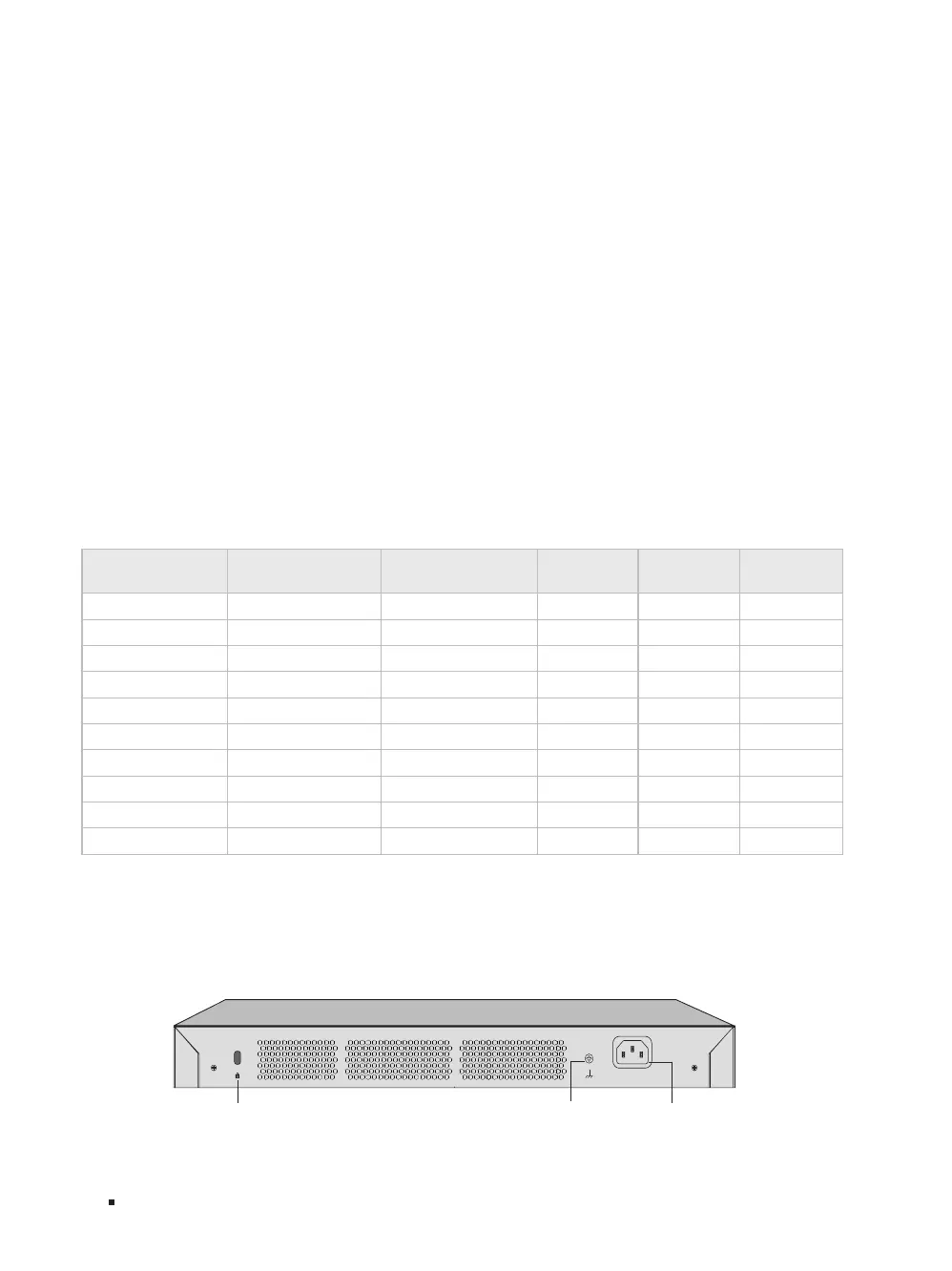

Rear Panel
For TL-SG5412F/T2500G-10TS/T2500G-10MPS/T2500-28TC/T2600G-18TS/T2600G-28TS/
T2600G-28MPS/T2600G-28SQ/ T2600G-52TS
The rear panel is shown as the following figure. Here we take T2600G-28TS as an example.
Figure 1-11 Rear Panel of T2600G-28TS
Power Socket
Grounding Terminal
Kensington Security slot
