The front panel of The T2600G-28MPS is shown as the following figure.

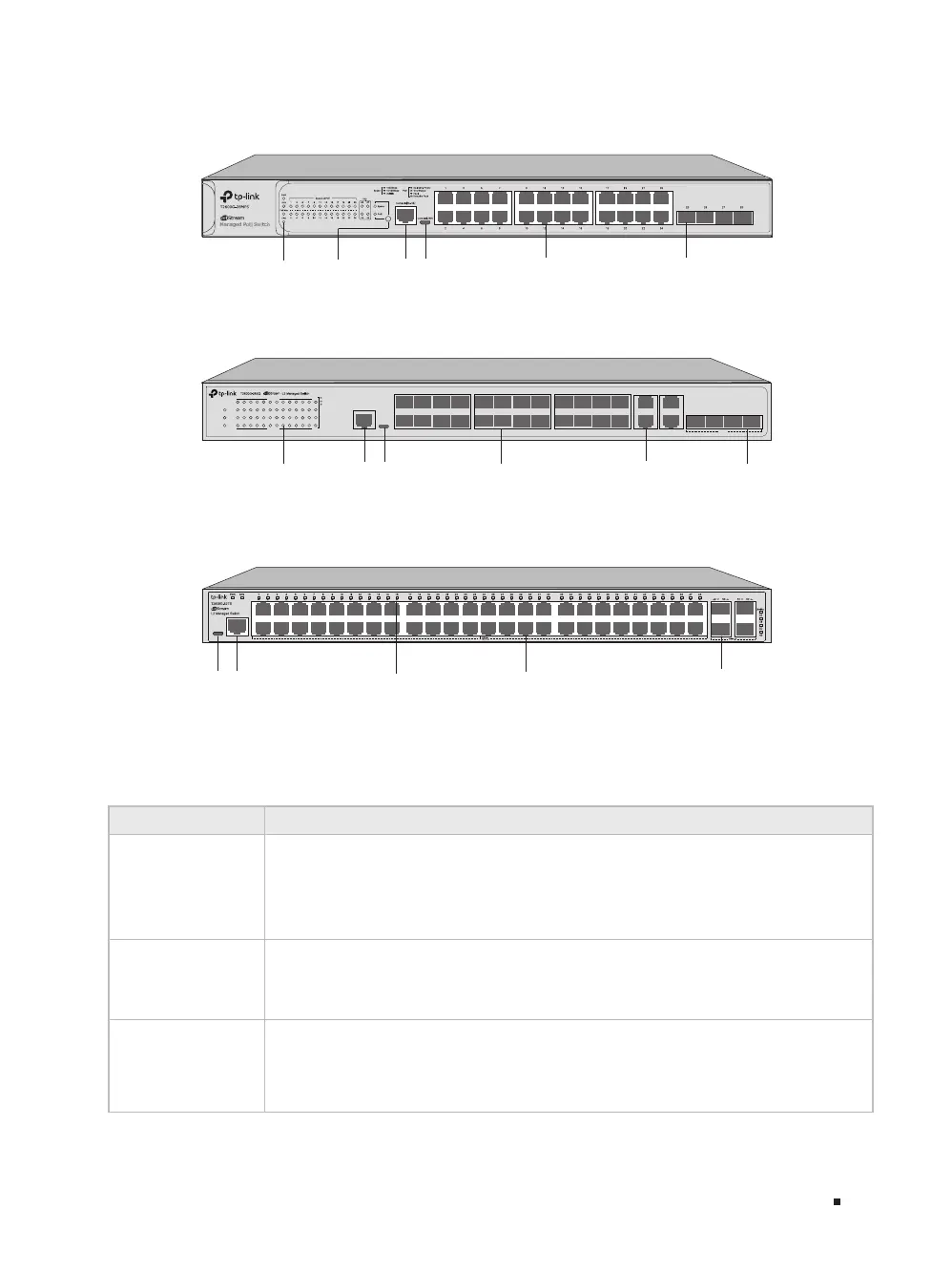

Figure 1-8 Front Panel of T2600G-28MPS
10/100/1000Mbps
RJ45 Port
LEDs
Console Port
(RJ45/USB)
SFP Port
LED Mode
Switch Button
The front panel of The T2600G-28SQ is shown as the following figure.
Figure 1-9 Front Panel of T2600G-28SQ
PWR
SYS
FAN
2 4 6 8 10 12 14 16 18 20 22 24
26
28
1 3 5 7 9 11 13 15 17 19 21 23 25
27
1000Mbps
Link/Act
Console
(
RJ
-
45
)
Console
(
USB
)
3 5 7
84 62
1 11 13 15
1612 1410
9 19 21 23
2420 22
21T 23T SFP+
24T22T18
17
25 26 27 28
activity
10Gbps
1Gbps
10/100/1000Mbps
RJ45 Port
LEDs
Console Port
(RJ45/USB)
SFP+ PortSFP Port
The front panel of The T2600G-52TS is shown as the following figure.
Figure 1-10 Front Panel of T2600G-52TS
ConsoleConsole(USB)
10/100/1000Mbps
RJ45 Port
LEDs
Console Port
(RJ45/USB)
SFP Port
LEDs
For TL-SG5412F/T2500G-10TS/T2500-28TC/T2600G-18TS/T2600G-28TS/T2600G-28TS-DC/
T2600G-28SQ / T2600G-52TS
LED Indication
Power
PWR
Note: Power for T2500-28TC and PWR for the other switches.
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal.
System
SYS
Note: System for T2500-28TC and SYS for the other switches.
Flashing: The switch works properly.
On or Off: The switch works improperly.
FAN
Note: Only for T2600G-28SQ.
Green On: The fan works normally.
Yellow On: The fan works abormally.
