JetStream Smart Switch
06Introduction
Unit ID LED
Designed to display the stack Unit ID of the switch. For the switch that does not join any stack system, it
displays its default Unit ID. To modify the default unit number, please log on to the GUI of the switch and
go to Stack→Stack Management→Stack Cong page and congure the New Unit ID. The new Unit ID
will take eect after you reboot the switch.
10/100 Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10 Mbps or 100 Mbps.
10/100/1000 Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps.
SFP Slot
Designed to install the SFP module. For products except T1700X-16TS, the switch features some slots
that are shared with the associated RJ45 ports. The associated two ports are referred as a "Combo"
port, which means they cannot be used simultaneously, otherwise only SFP slot works.
SFP+ Slot
Designed to install the SFP module. For T1700G-28TQ and T1700X-16TS, the switch supports 1G SFP
or 10G SFP+ module connection.
Port Feature
Model
100M/1000 M/10Gbps
RJ45 Port
10/100/1000 Mbps
RJ45 Port
10/100 Mbps RJ45
Port
SFP Slot SFP+ Slot
T1600G -18TS / 16 / 2 /
T1600G-52TS / 48 / 4 /
T1600G-52PS / 48 / 4 /
T1700G-28TQ / 24 / / 4
T1700X-16TS 12 / / / 4
TL-SG2218 / 16 / 2 /
TL-SG2210MP / 8 / 2 /
TL-SG2428P / 24 / 4 /
TL-SL2428P / 4 24 2 /
■
Rear Panel

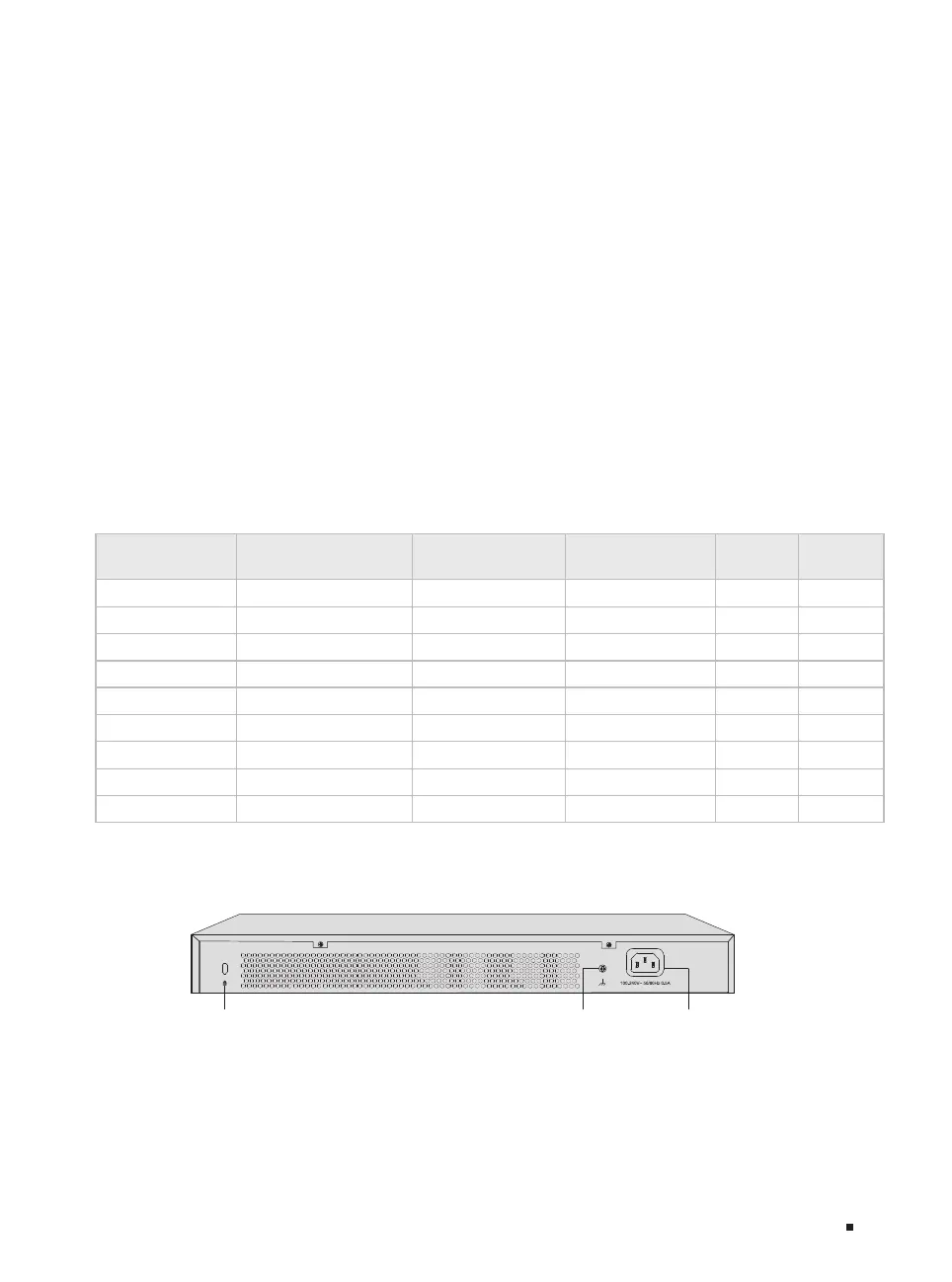

The rear panel is shown as the following figure. Here we take TL-SG2428P as an example.
Figure 1-10 Rear Panel
Power SocketGrounding TerminalKensington Security slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
To Next Page
