TP-Link M7000 User Manual

38
Chapter 6 Customize Your Network

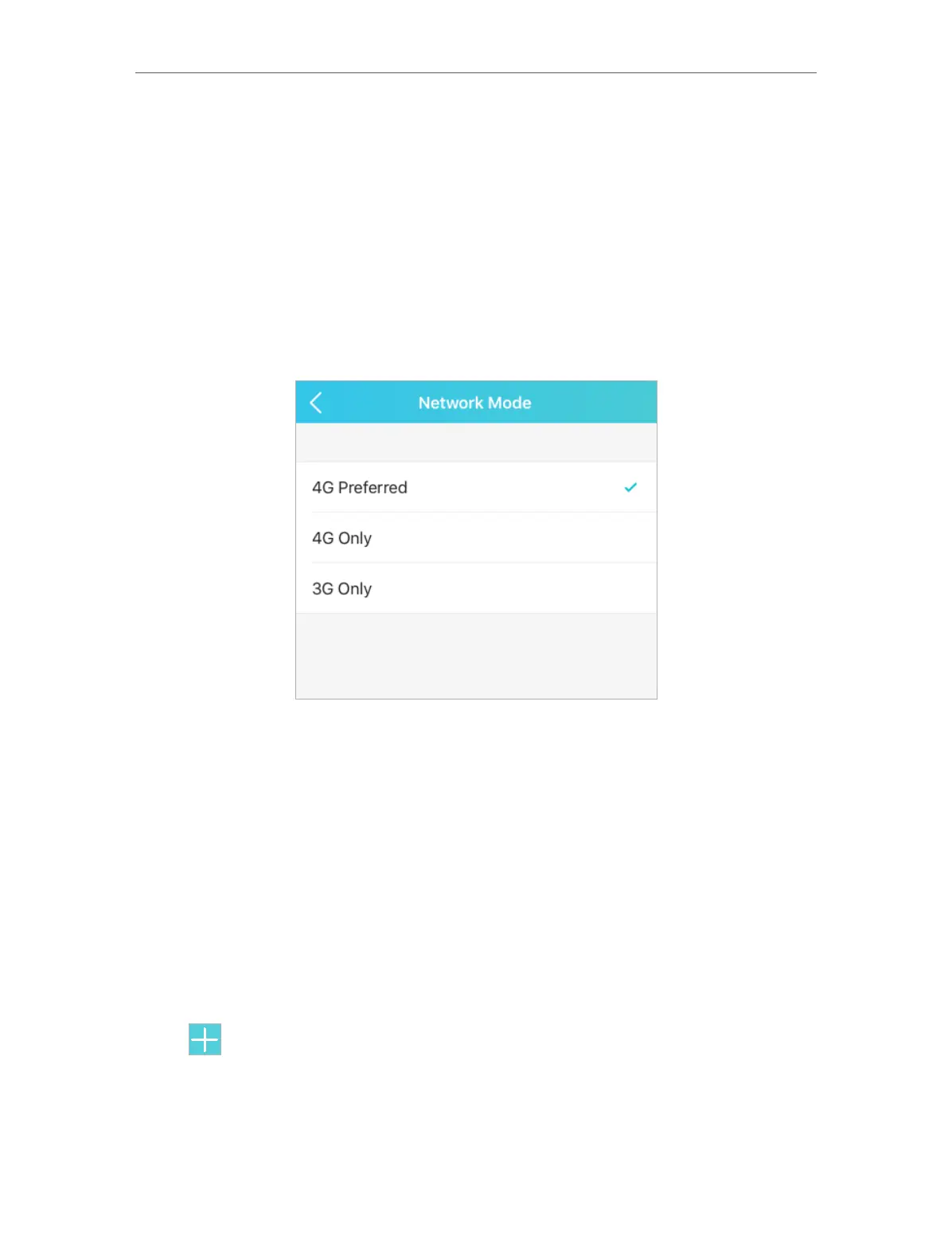

6. 1. Specify Network Mode
This Mobile Wi-Fi supports three modes of network connection: 4G Preferred,
4G Only and 3G Only. If your SIM card supports WCDMA, select 3G Only; if your
SIM card supports FDD-LTE or TDD-LTE, select 4G Preferred or 4G Only as
needed. In general, the 4G network is faster than the 3G one.
1. Open your tpMiFi app and log in with the password you set.
2. Go to Tools > Internet Settings > Network Mode.
3. Select 4G Preferred, 4G Only or 3G Only as needed.
4. Tap Done.
6. 2. Configure APN
6. 2. 1. Configure APN Settings
If you are in a location beyond your mobile carrier’s service area, you may need to
configure the dial-up settings to access the internet provided by a local mobile
carrier.
1. Open your tpMiFi app and log in with the password you set.
2. Go to Tools > Internet Settings > APN Management.
3. Tap
to build an APN profile.
4. Specify a name for the profile and fill in the parameters provided by your
carrier.

TP-Link M7000 Specifications

General

Ethernet WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	-
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Device type	Cellular network router
Product type	Portable router
Product color	Black
LED indicators	Power, WLAN
Transmit power	20 dBmW
Output current	1 A
Output voltage	5 V
Battery capacity	2000 mAh
Power source type	Battery
Battery life (max)	8 h
USB port type	Micro-USB
Ethernet LAN (RJ-45) ports	0
4G standard	LTE-FDD
3G standards	HSPA, HSPA+, UMTS
Data network	3G, 4G, LTE
SIM card type	MicroSIM
4G bands supported	800, 850, 900, 1800, 2100, 2600 MHz
UMTS bands supported	850, 900, 2100 MHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11b 11Mbps: -87.5dBm 11g 54Mbps: -74dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS7: -68dBm
Ethernet LAN interface type	Not available
Security algorithms	SSID, WPA-PSK, WPA2-PSK
Certification	CE, RoHS
Mobile operating systems supported	Android, Windows Phone, iOS
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Package depth	95 mm
Package width	135 mm
Package height	50 mm
Package weight	150 g
Number of products included	1 pc(s)
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	56.6 mm
Width	94 mm
Height	19.7 mm
