Omada VPN Gateway
03 Appearance
LED Indication
SFP
On: The SFP port is running at 1000 Mbps, but no activity.
Off: No device is linked to the SFP port.
Flashing: The SFP port is running at 1000 Mbps, and transmitting or receiving data.
USB
For USB Modem:
Flashing: A modem is connected, and it is initializing.
On: The modem is loaded.
Off: No modem is inserted, or it is corrupted or incompatible.
For USB Storage:
On: A USB storage device is inserted and identified.
Off: No USB storage device is inserted, or it is corrupted or incompatible.
Link/Act
Green On: Running at 1000 Mbps, but no activity.
Green Off: No device is linked to the corresponding port.
Green Flashing: Running at 1000 Mbps, and transmitting or receiving data.
Yellow On: Running at 100/10 Mbps, but no activity.
Yellow Off: No device is linked to the corresponding port.
Yellow Flashing: Running at 100/10 Mbps, and transmitting or receiving data.
Interface Description
USB USB 3.0 port for USB modem and USB storage device.
Reset
Press and hold the button for 5 seconds, the SYS LED will flash quickly, indicating the
device is being reset to its factory default settings.
Port 1
SFP WAN/LAN port.
By default, it is a WAN port.
You can configure it to a LAN port on the management page
Port 2 Gigabit RJ45 WAN port.
Port 3-6
Gigabit RJ45 WAN/LAN ports.
By default, they are LAN ports connecting to local PCs or switches.
You can configure each port to a WAN port on the management page.

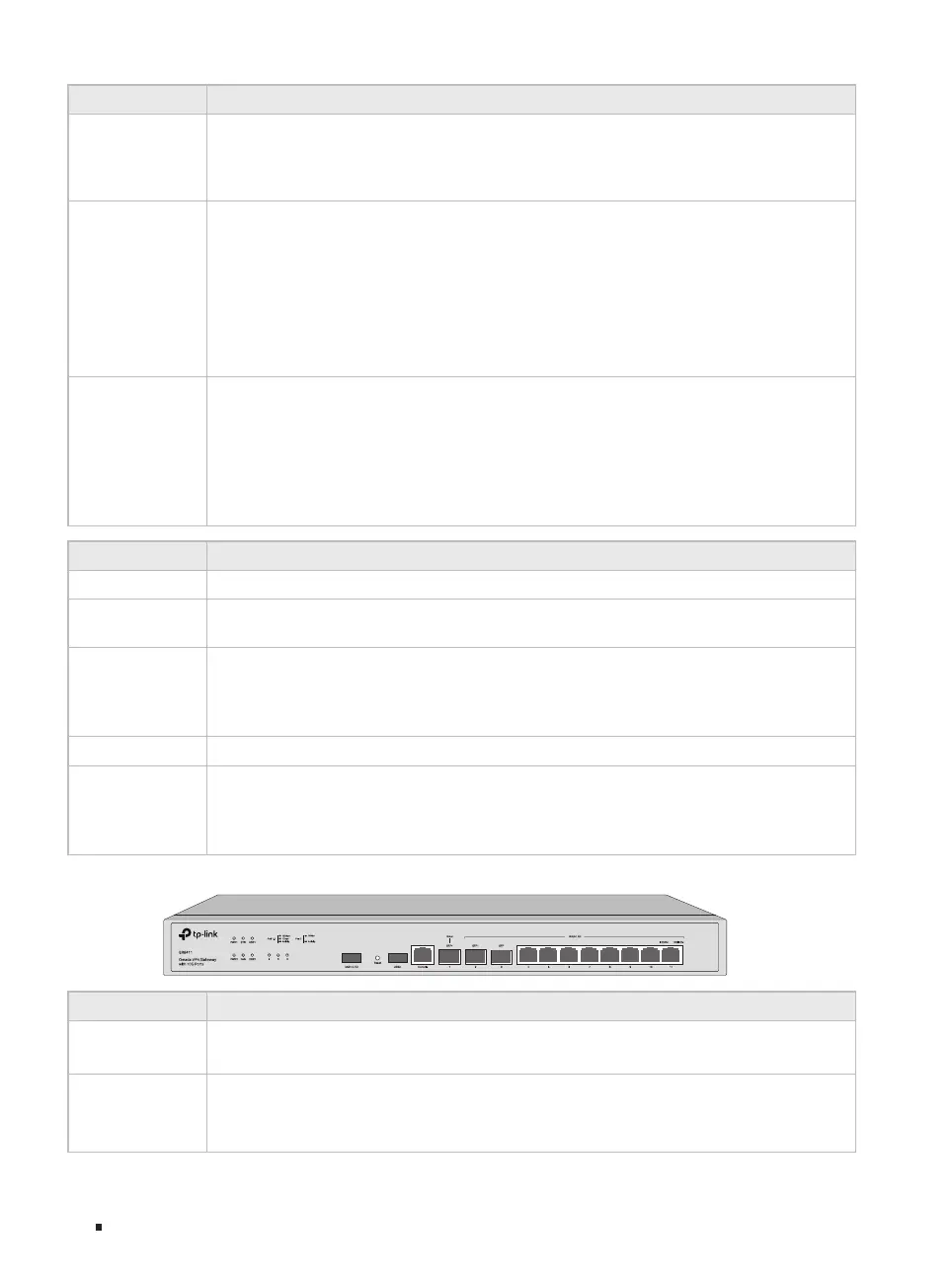

The front panel of ER8411 is shown as the following figure.
LED Indication
PWR1*
On: The gateway is powered by PWR1.
Off: PWR1 is disconnected or it works improperly, or the gateway is powered off.
PWR2
Green On: The gateway is powered by PWR2.
Yellow On**: PWR2 are connected, but the gateway is powered by PWR1.*
Off: PWR2 is disconnected or it works improperly, or the gateway is powered off.
