Omada VPN Gateway
05 Appearance
SFP+ WAN/LAN
(Port 2)
10G SFP+ WAN/LAN port connecting to an SFP+ module.
By default, it is a LAN port.
You can configure it to a WAN port on the management page.
SFP WAN/LAN
(Port 3)
Gigabit SFP WAN/LAN port connecting to an SFP module.
By default, it is a LAN port.
You can configure it to a WAN port on the management page.
Port 4
Gigabit RJ45 WAN/LAN port.
By default, it is a WAN port.
You can configure it to a LAN port on the management page
Por t 5-11
Gigabit RJ45 WAN/LAN ports.
By default, they are LAN ports connecting to local PCs or switches.
You can configure each port to a WAN port on the management page.
■

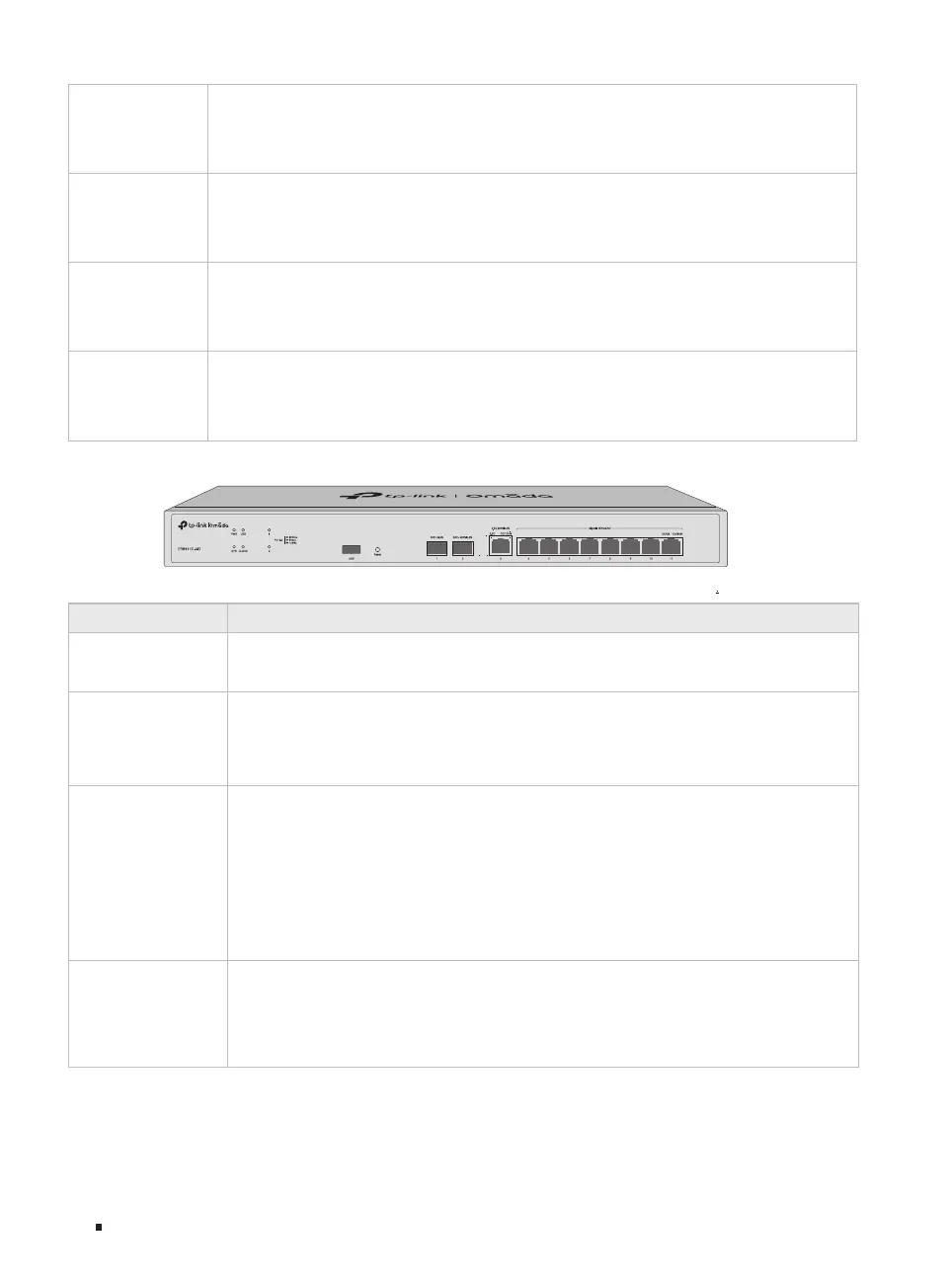

The front panel of ER8411C-M2 is shown as the following figure.
Omada 10G VPN Gateway with
Integrated Switch and Controller Ability
LED Indication
PWR
On: The gateway is powered on.
Off: The gateway is powered off or power supply is abnormal.
SYS
Slow Flashing: System is running normally.
Quick Flashing: The gateway is being reset.
On or Off: System is starting up or running abnormally.
USB
For USB Modem:
Flashing: A modem is connected and it is initializing.
On: The modem is loaded.
Off: No modem is inserted, or it is corrupted or incompatible.
For USB Storage:
On: A USB storage device is inserted and identified.
Off: No USB storage device is inserted, or it is corrupted or incompatible.
CLOUD
On: The device is bound to a TP-Link ID.
Slow Flashing: The device is connected to cloud but not bound to a TP-Link ID.
Quick Flashing: The device is being reset to its factory default settings.
Off: The device is disconnected from cloud.
