02Appearance
Interface Description
USB USB 3.0 port for USB modem and USB storage device.
Reset
Press and hold the button for 5 seconds, the SYS LED will flash quickly, indicating the
device is being reset to its factory default settings.
Console Connect with a computer for monitoring and configuring the router.
Port 1
2.5G RJ45 WAN/LAN port.
By default, it is a WAN port.
You can configure it to a LAN port on the management page
Port 2
2.5G RJ45 WAN/LAN port.
By default, it is a LAN port connecting to local PCs or switches.
You can configure it to a WAN port on the management page.
Port 3
Gigabit RJ45 WAN/LAN port.
By default, it is a WAN port.
You can configure it to a LAN port on the management page.
Por t 4-10
Gigabit RJ45 WAN/LAN ports.
By default, they are LAN ports connecting to local PCs or switches.
You can configure each port to a WAN port on the management page.
Por t 11-12
Gigabit SFP WAN/LAN port connecting to an SFP module.
By default, it is a LAN port.
You can configure it to a WAN port on the management page.
■

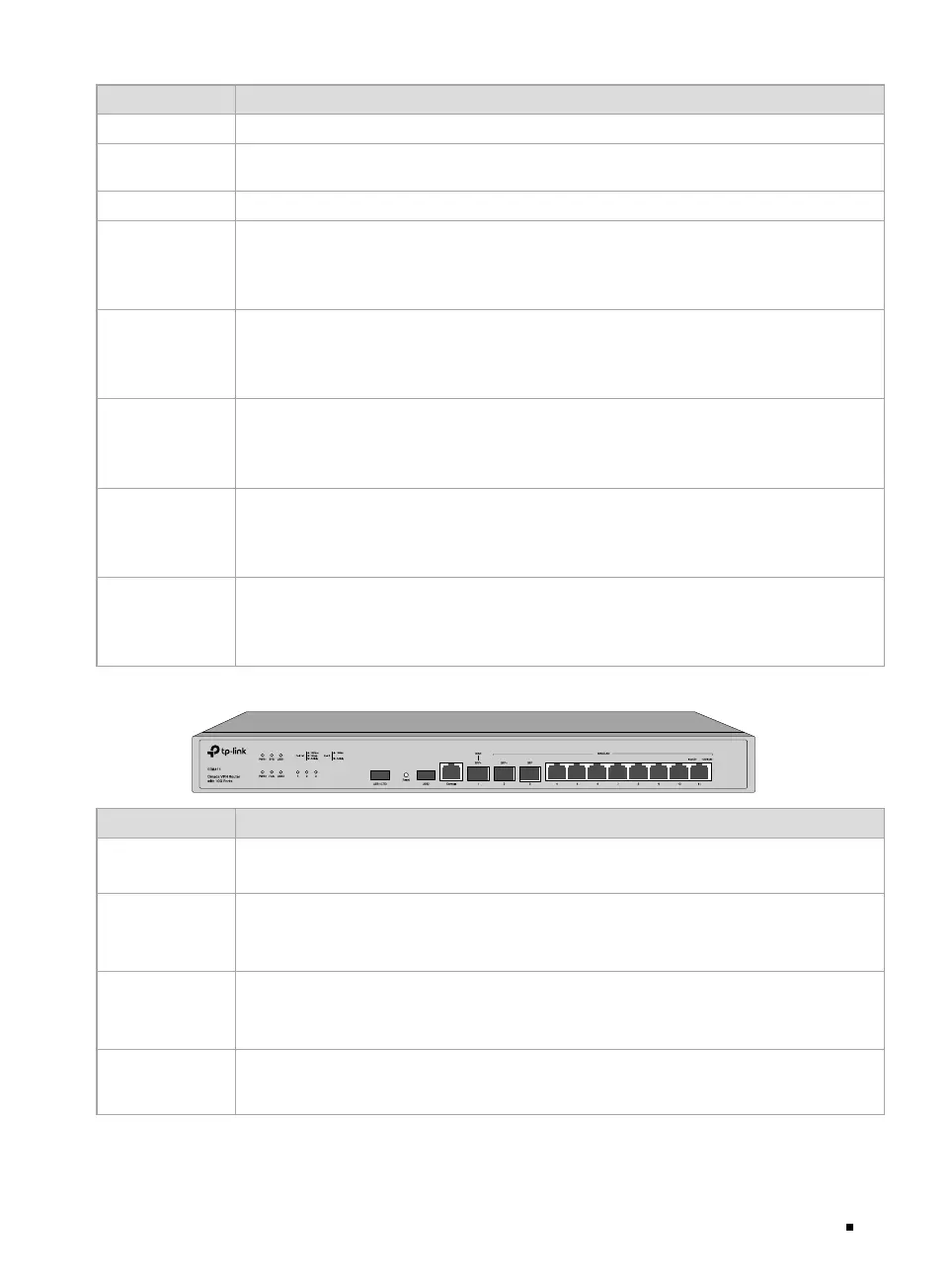

The front panel of ER8411 is shown as the following figure.
LED Indication
PWR1*
On: The router is powered by PWR1.
Off: PWR1 is disconnected or it works improperly, or the router is powered off.
PWR2
Green On: The router is powered by PWR2.
Yellow On**: PWR2 are connected, but the router is powered by PWR1.*
Off: PWR2 is disconnected or it works improperly, or the router is powered off.
SYS
Flashing: The router works properly.
On or Off: The router works improperly.
Quick Falshing: The router is being reset.
FAN
Green On: The fan works properly.
Yellow On: The fan works improperly.
