TP-Link PHAROS SERIES User Manual

27
$35RXWHU

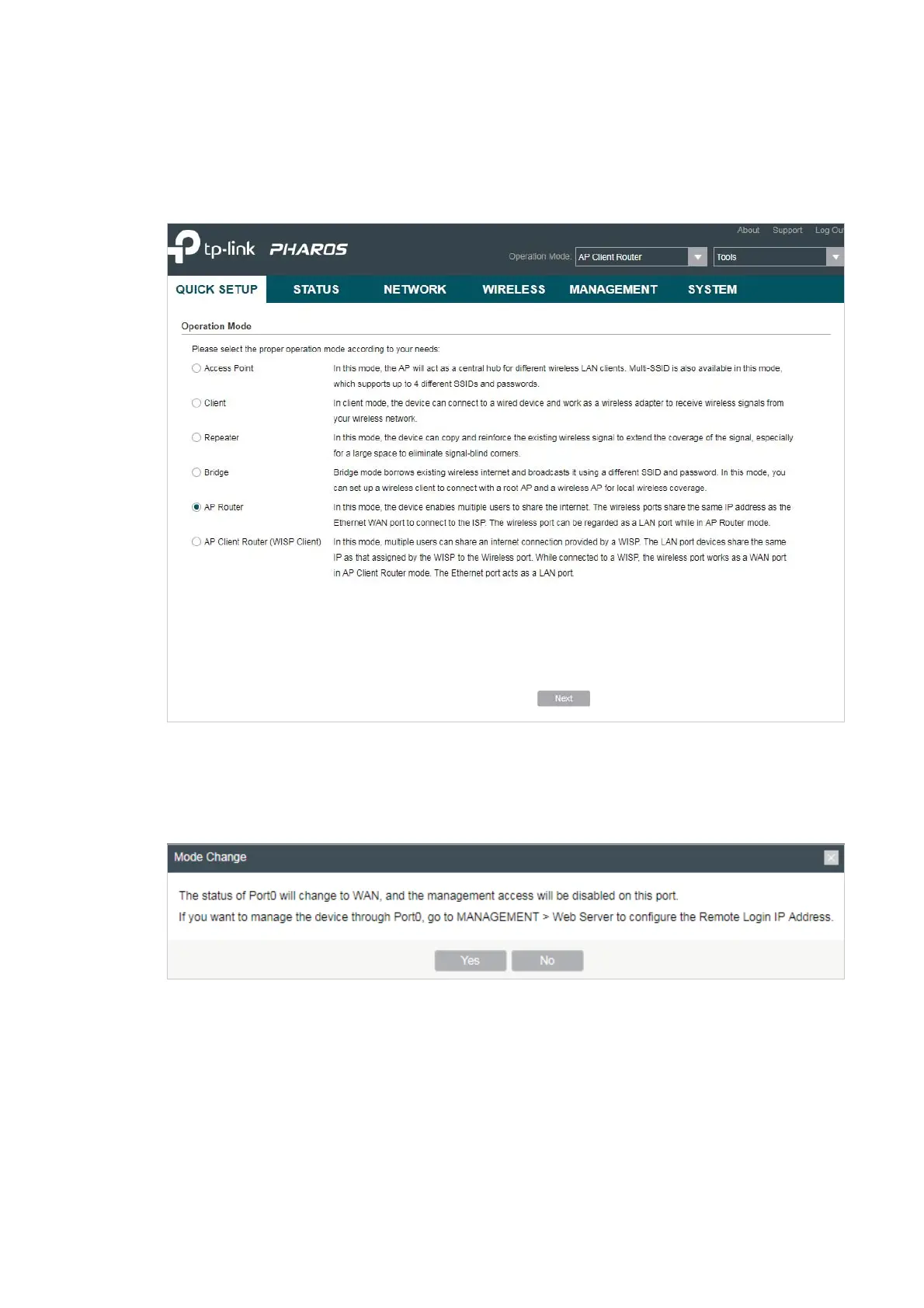

Follow the steps below to configure the device as AP Router Mode:
Go to the 48,&.6(783 page, select
AP Router and click Next .
Note:
The following window will pop up. Click Yes.
• For CPE210/CPE510/CPE610
Note that if you select AP Router as the operation mode, the status of Port0 will change to WAN,
and the management access will be disabled on this port after the process of quick setup. If you
want to manage the device through Port0, configure the Remote Login IP Address. For details,
refer to
6.5. Configure Web Server .

TP-Link PHAROS SERIES Specifications

General

Model	PHAROS SERIES
Category	Wireless Access Point
Frequency	5 GHz
Wireless Standards	IEEE 802.11a/n
Operating Temperature	70°C
Management	Web-based
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK, WEP
Interface	10/100M Ethernet
Operating Modes	Access Point, Client, Repeater
Mounting	Pole Mounting
