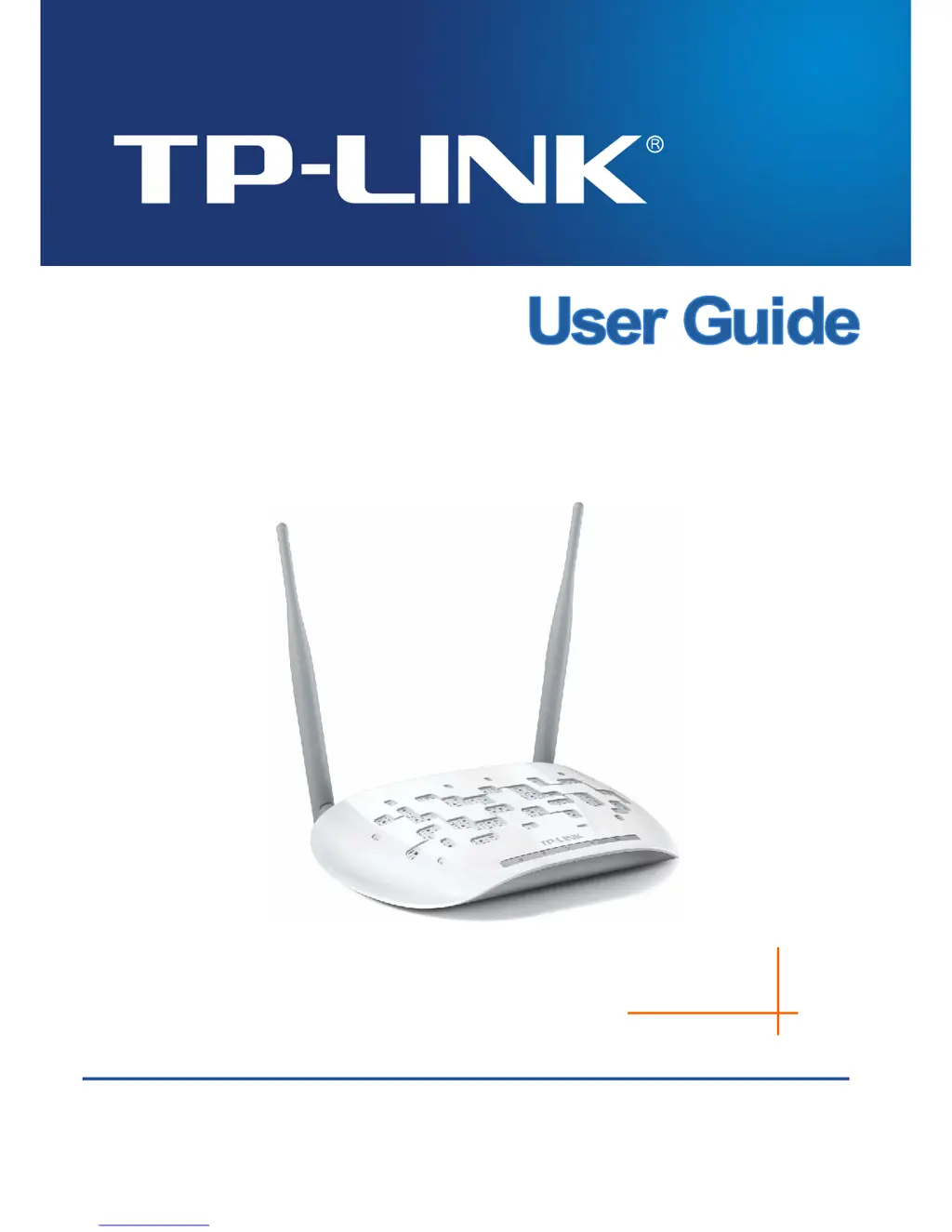

TP-Link TL-WA801ND User Manual (English)

Other manuals for TP-Link TL-WA801ND

Manual100 pages

Quick Installation Guide2 pages

Setup3 pages

Specifications3 pages

Installation14 pages

Questions and Answers:

A
Anthony KirbyJul 26, 2025
What to do if the LAN LED is not lit on my TP-Link TL-WA801ND?
- B
  Bruce MorrisJul 26, 2025
  If the LAN LED is not lit on your TP-Link Wireless Access Point, first, make sure the cable connectors are securely plugged into both the Access Point and the network device (hub, switch, or router). Secondly, ensure that the connected device is turned on. Finally, verify that you are using the correct cable, which should be a standard Category 5 Ethernet patch cable. Note that if your network device supports Auto Uplink™ (MDI/MDIX) ports, you can use either a crossover cable or a normal patch cable.
L
Leslie HoltAug 5, 2025
Why can't I access my TP-Link Wireless Access Point with my computer?
- J
  Jordan Rivera MDAug 5, 2025
  If you cannot access the TP-Link Wireless Access Point with a wireless capable computer, it might be due to a configuration problem. Try restarting the computer with the wireless adapter to ensure TCP/IP changes take effect. Also, check the computer's TCP/IP settings to ensure they are correctly configured for the network; the usual setting for Windows is 'Obtain an IP address automatically' in Network Properties. It's also possible that the Access Point’s default values conflict with your network configuration, so check for any conflicts with other devices.
J
Jared HaynesAug 14, 2025
How to fix TP-Link TL-WA801ND when no LEDs are lit?
- W
  William WarnerAug 14, 2025
  If no LEDs are lit on your TP-Link Wireless Access Point, ensure the power cord is securely connected. Verify that the power adapter is plugged into a functioning electrical outlet and the outlet's switch is turned on. Also, confirm that you are using the correct TP-Link power adapter that was provided with your Access Point.

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g
