TP-Link SafeStream TL-ER6020 - Chapter 4 Connection; WAN Port; LAN Port; Console Port

14
Gigabit Dual-WAN VPN Router


Please connect the WAN port of the Router to the interface provided by ISP via
Ethernet cable.

Connect a LAN port of the Router to the computer by RJ45 cable as the following figure
shown.
RJ45 Port
LAN Port
RJ45 Cable

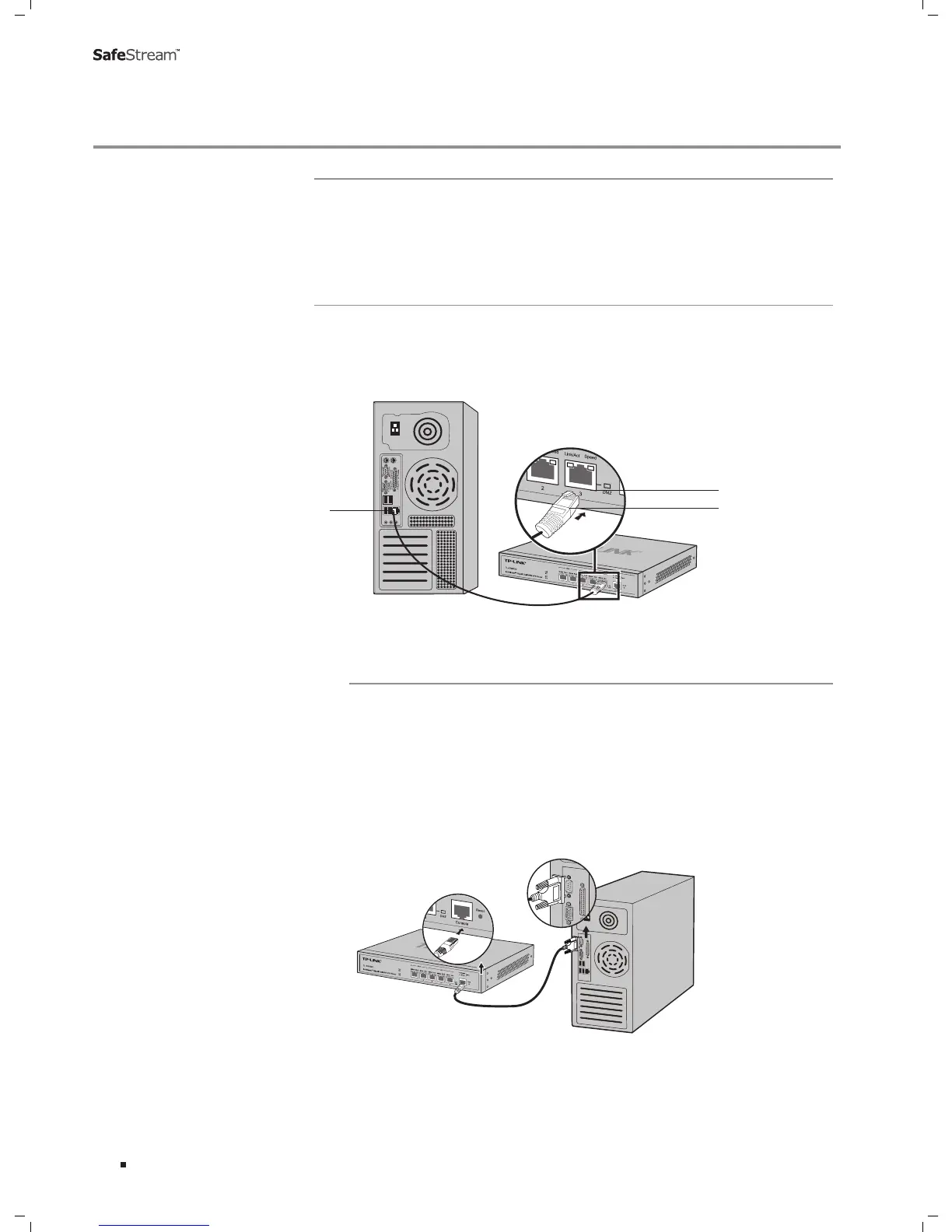

Connecting the LAN PortFigure 4-1

CLI (Command Line Interface) enables you to do some simple operations to the Router,
thus you can load the CLI after connecting the PCs or Terminals to the console port
on the Router via the provided cable. For TL-ER6020, you can check and monitor some
simple system information of the Router.
Connect the console port of the device with your computer by the console cable as the
following figure shown.
Connecting the Console PortFigure 4-2
Connection
