03Introduction

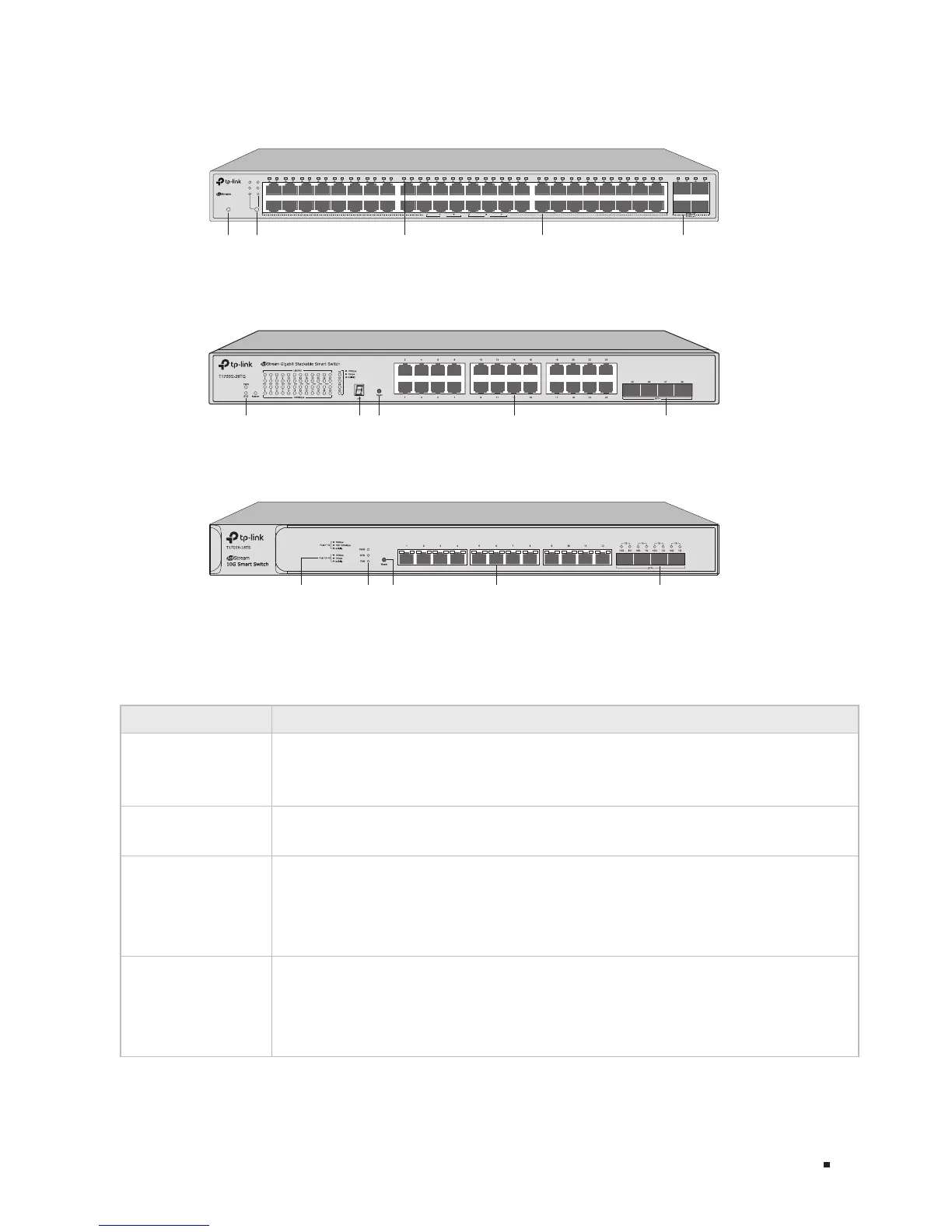

The front panel of The T1600G-52PS (TL-SG2452P) is shown as the following figure.
Figure 1-8 Front Panel of T1600G-52PS (TL-SG2452P)
Reset
Speed
PWR
SYS
PoE Max
FAN
PoE
PoE
Delivering Power Over Budget
Fault
Speed
activity1000Mbps 10/100Mbps
T1600G
-
52PS
Smart PoE Switch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
F
Reset LED Mode Switch
LEDs 10/100/1000Mbps RJ45 Port SFP Port
The front panel of The T1700G-28TQ is shown as the following figure.
Figure 1-9 Front Panel of T1700G-28TQ
LEDs Unit ID LED Reset 10/100/1000Mbps RJ45 Port SFP+ Port
The front panel of The T1700X-16TS is shown as the following figure.
Figure 1-10 Front Panel of T1700X-16TS
ResetLEDs 100M/1000M/10Gbps
RJ45 Port
1G/10Gbps SFP+ PortLEDs Indication
LEDs
For T1500-28TC (TL-SL2428) / T1600G-18TS (TL-SG2216) / T1600G-28TS / T1600G-52TS (TG-
SG2452) / T1700G-28TQ / T1700X-16TS
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal.
SYS
Flashing: The switch works properly.
On or Off: The switch works improperly.
10/100M
Link/Act
On: A device is connected to the corresponding port but no activity.
Flashing: Data is being transmitted or received.
Off: No device is connected to the corresponding port.
Note: 10/100M for T1500-28TC. Link/Act for T1600G-18TS (TL-SG2216), T1700G-28TQ.
1000Mbps
On: Running at 1000Mbps.
Off: Running at 10/100Mbps or no device is linked to the corresponding port.
Note: For T1600G-18TS (TL-SG2216), T1700G-28TQ.
