-13-
Choose the menu Network→WAN→WAN1 to load the configuration page.
1) Static IP
If a static IP address has been provided by your ISP, please choose the Static IP connection type to
configure the parameters for WAN port manually.

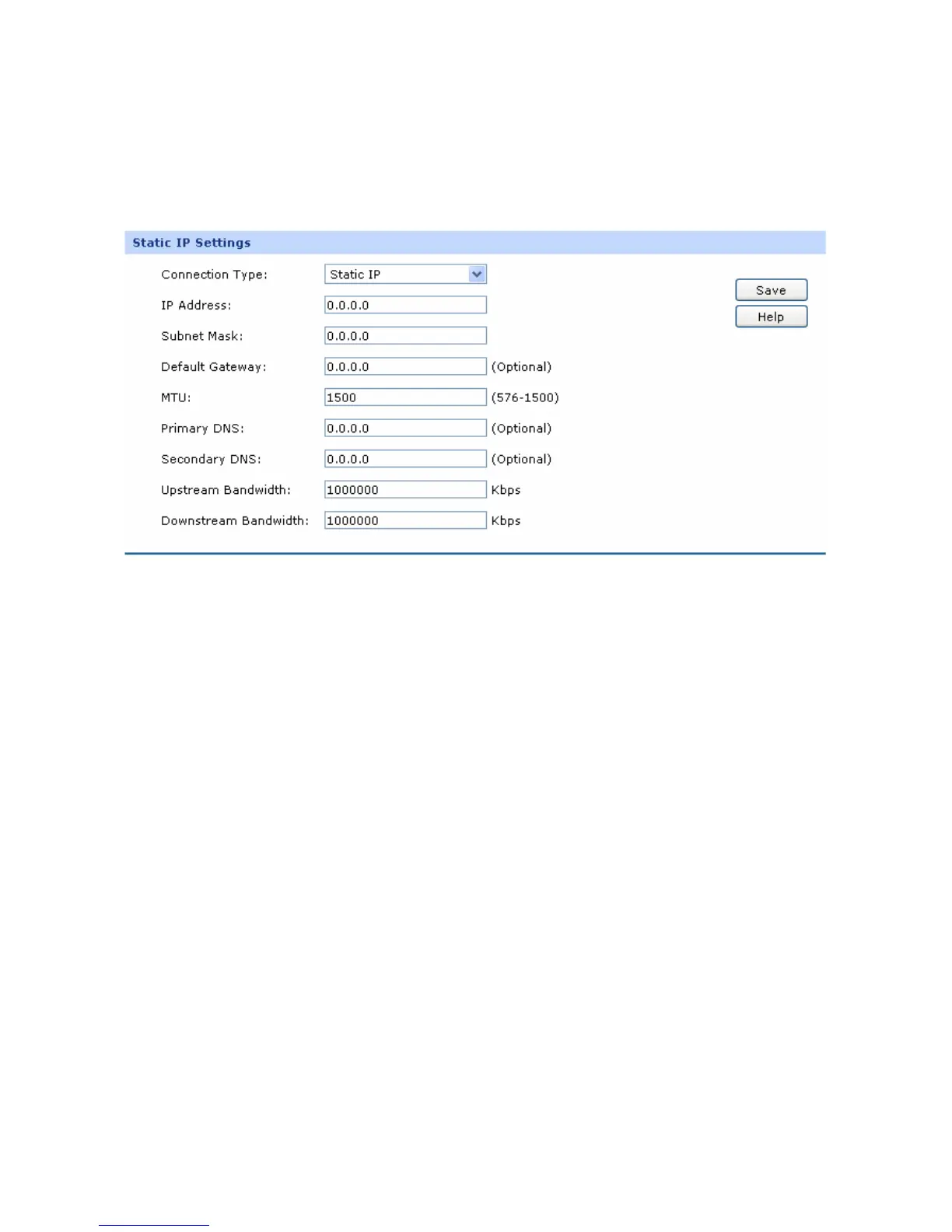

Figure 3-7 WAN – Static IP
The following items are displayed on this screen:
¾ Static IP
Connection Type:
Select Static IP if your ISP has assigned a static IP address for your
computer.
IP Address:
Enter the IP address assigned by your ISP. If you are not clear,
please consult your ISP.
Subnet Mask:
Enter the Subnet Mask assigned by your ISP.
Default Gateway:
Optional. Enter the Gateway assigned by your ISP.
MTU:
MTU (Maximum Transmission Unit) is the maximum data unit
transmitted by the physical network. It can be set in the range of
576-1500. The default MTU is 1500. It is recommended to keep the
default value if no other MTU value is provided by your ISP.
