TP-Link TL-PA4010 User Manual

TL-PA4010 AV500 Nano Powerline Adapter
14

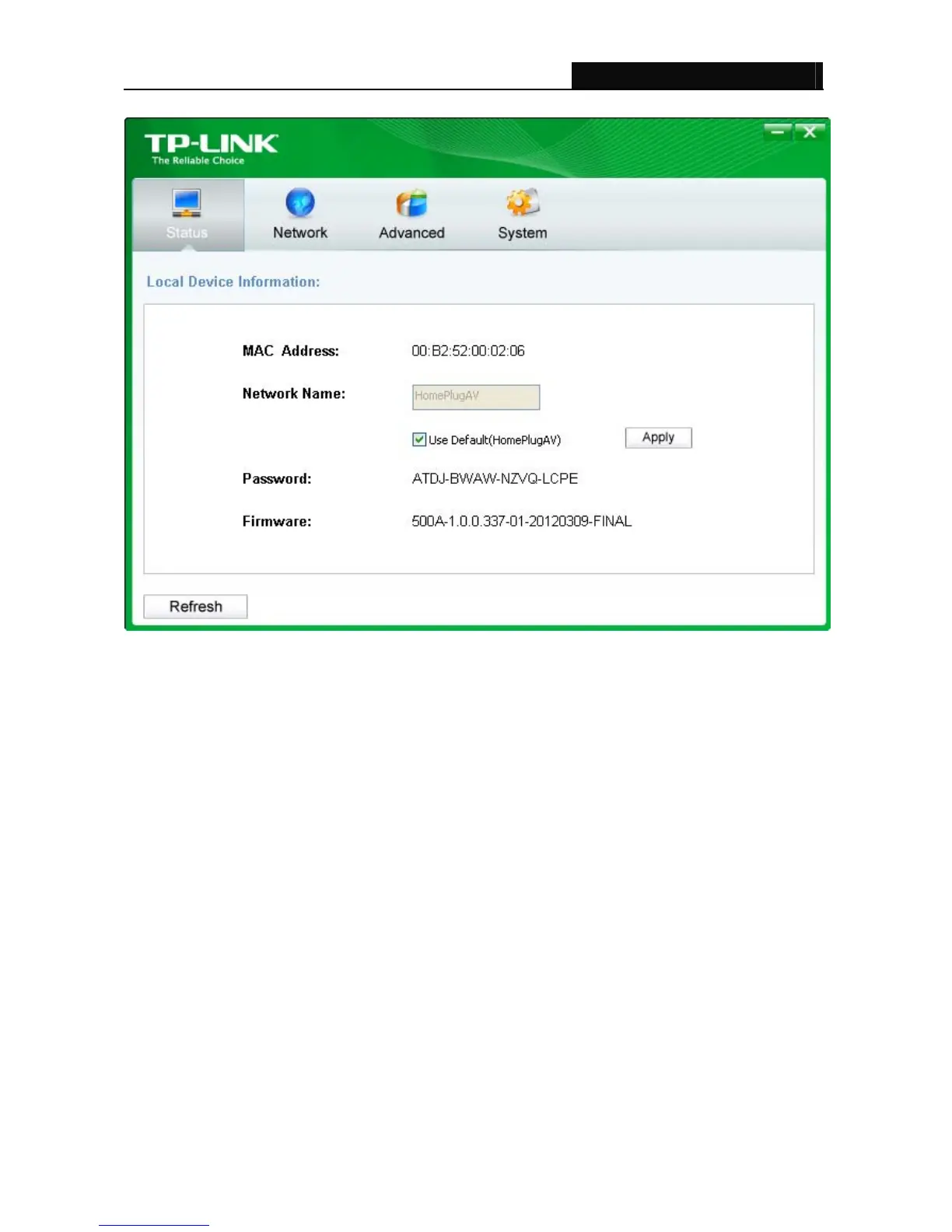

 MAC Address: Displays the MAC address of the powerline adapter connected to the current
computer where this management utility is running.
 Network Name: Displays the network name of the current network or you can give a name for the
network in which the powerline adapter is. By default, the network name is HomeplugAV.
 Use Default (HomePlugAV): Check the box before this item to use the default network name.
 Apply: Click the Apply button to make the setting effective.
 Password: Displays the password of the current powerline adapter. Every powerline adapter has
its own password by default, which can be also found on the back of the adapter.
 Firmware: Displays the current firmware version used by the adapter.
 Refresh: Click the Refresh button to update the information.
4.1.1 Set Local Device’s Network Name
To set the lo
cal device’s network name, please take the following steps:
(1) Click Status tab to display the Status tab window.
(2) Enter a name for the current network using 4~23 characters. Or you can check the Use Default
(HomePlugAV) to use the default name as the network name. By default, the network name is
HomeplugAV.
(3) Click the Apply button to make the settings take effect.

TP-Link TL-PA4010 Specifications

General

Wi-Fi	No
Modulation	OFDM
Power plug	-
Ethernet LAN	Yes
PowerLine standard	HomePlug AV
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	500 Mbit/s
Maximum operating distance	300 m
Ethernet LAN interface type	Fast Ethernet
Certification	CE, FCC
Product color	White
Power consumption (typical)	2 W
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	52 mm
Width	65 mm
Height	28.5 mm
