-22-

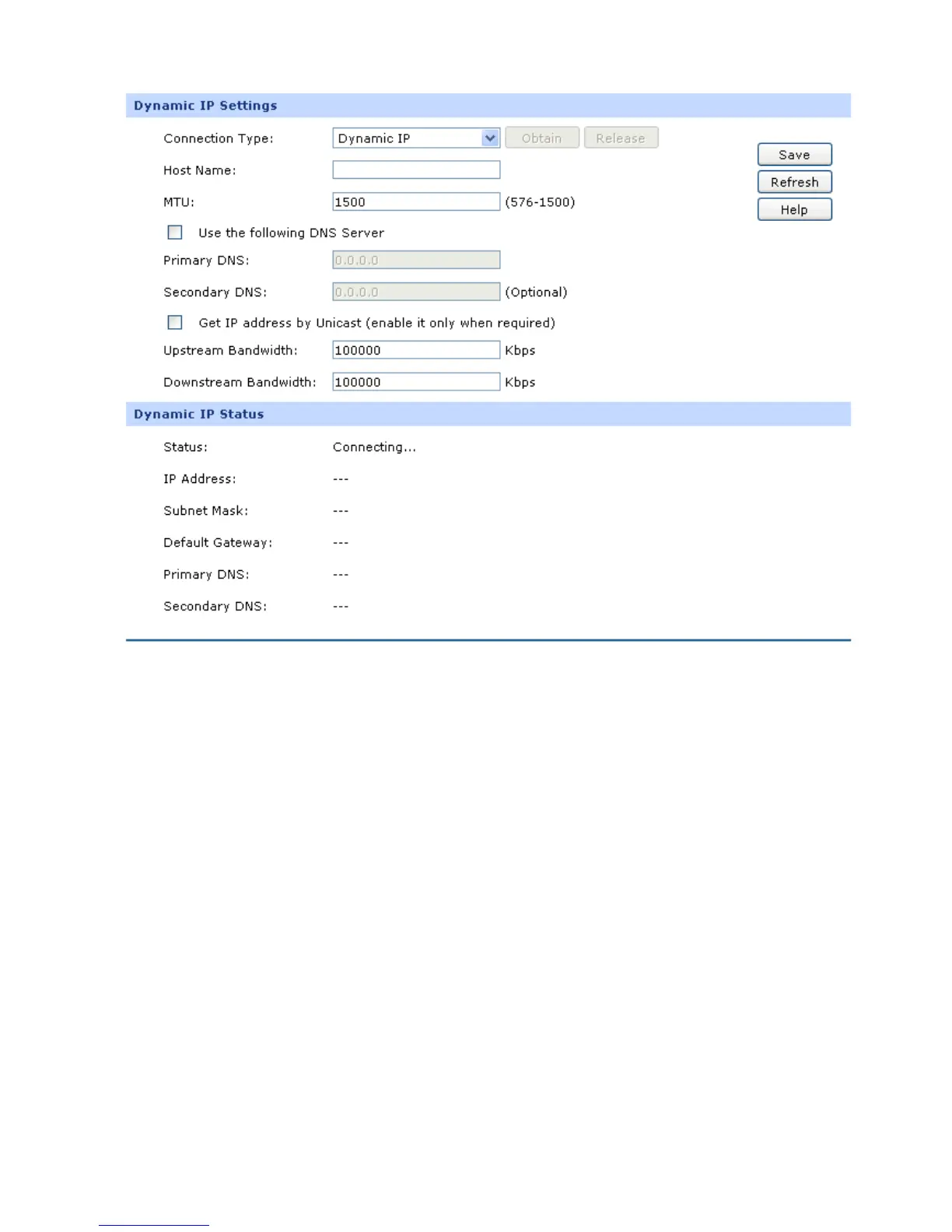

Figure 4-8 WAN – Dynamic IP
The following items are displayed on this screen:
¾ Dynamic IP
Connection Type:
Select Dynamic IP if your ISP assigns the IP address automatically.
Click <Obtain> to get the IP address from your ISP’s server. Click
<Release> to release the current IP address of WAN port.
Host Name:
Optional. This field allows you to give a name for the Router. It's
blank by default.
MTU:
MTU (Maximum Transmission Unit) is the maximum data unit
transmitted by the physical network. It can be set in the range of
576-1500. The default MTU is 1500. You are recommended to keep
the default value if no other MTU value is provided by your ISP.
