-47-

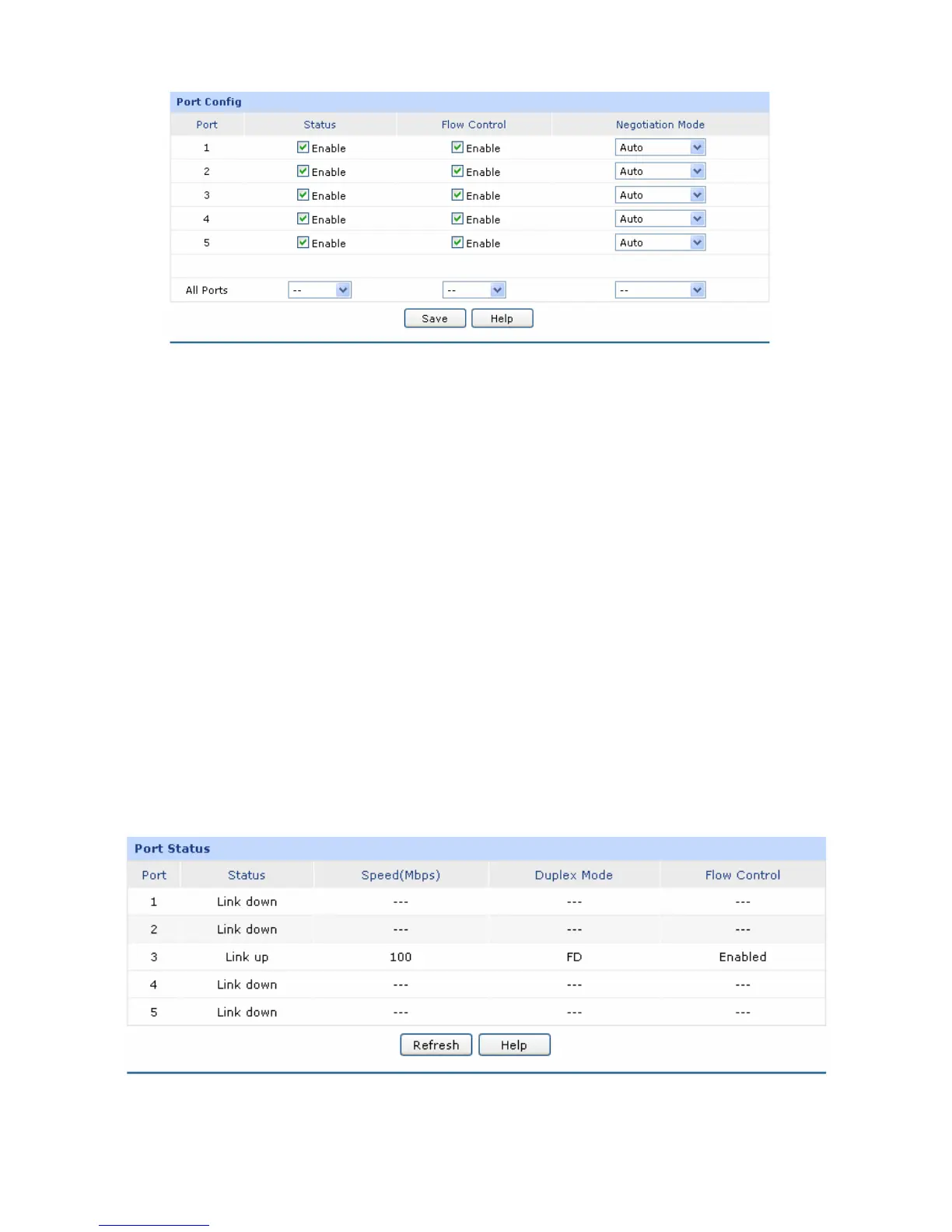

Figure 4-24 Port Config
The following items are displayed on this screen:
¾ Port Config
Status:
Specify whether to enable the port. The packets can be transported via
this port after being enabled.
Flow Control:
Allows you to enable/disable the Flow Control function.
Negotiation Mode:
Select the Negotiation Mode for the port.
All Ports:
Allows you to configure the parameters for all the ports at one time.
4.3.4.5 Port Status
On this page, you can view the current status of each port.
Choose the menu Network→Switch→Port Status to load the following page.
Figure 4-25 Port Status
