-70-

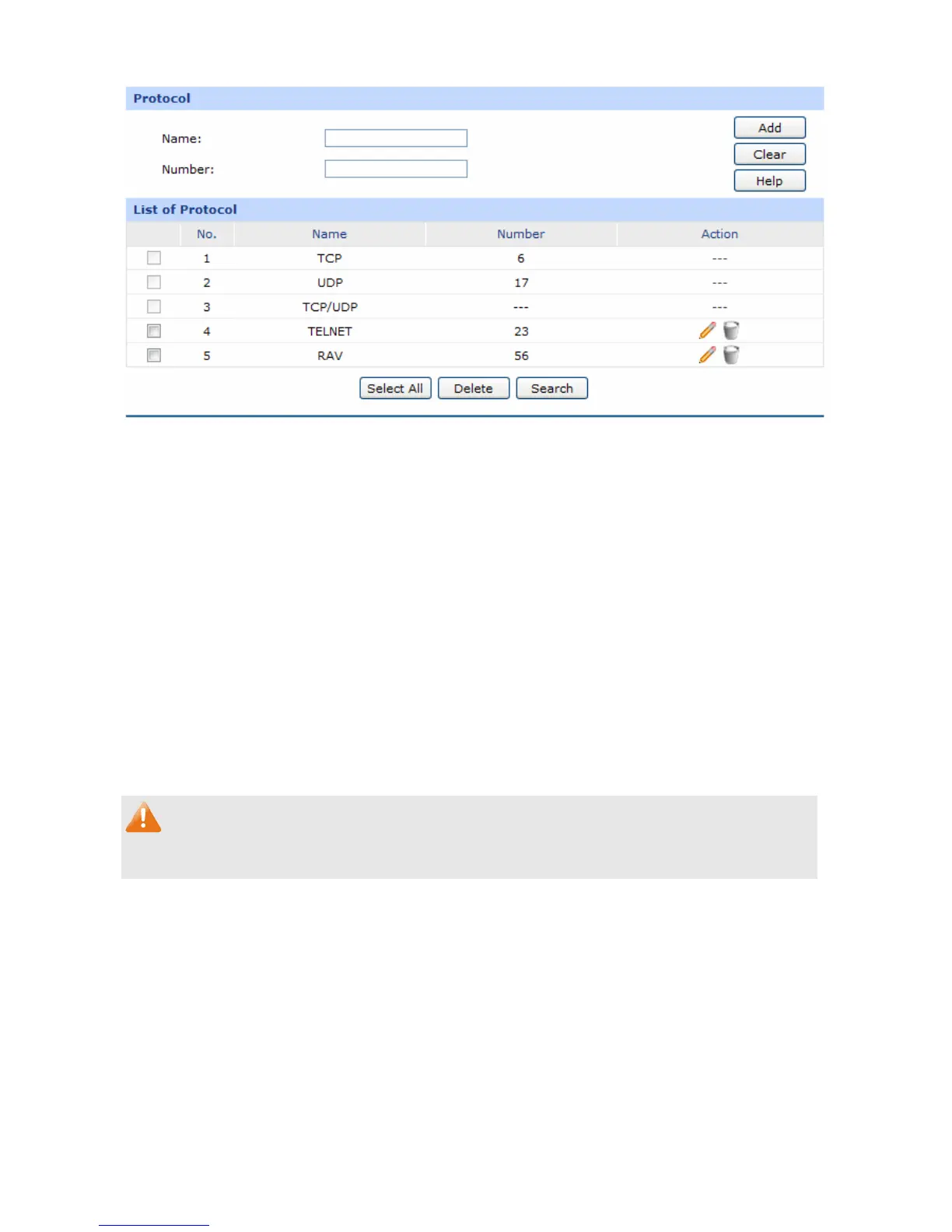

Figure 4-43 Protocol
The following items are displayed on this screen:
¾ Protocol
Name:
Enter a name to indicate a protocol. The name will display in the
drop-down list of Protocol on Access Rule page.
Number:
Enter the Number of the protocol in the range of 0-255.
¾ List of Protocol
You can view the information of the entries and edit them by the Action buttons.
Note:
The system predefined protocols cannot be configured.
4.5.5 Routing
4.5.5.1 Static Route
Routing is the process of selecting optimized paths in a network along which to send network traffic.
Static Route is a kind of special routing configured by the administrator, which is simple, efficient, and
reliable.
Commonly used in small-sized network with fixed topology, Static Route does not change along with
the network topology automatically. The administrator should modify the static route information
manually as long as the network topology or link status is changed.
