-55-
Application Example:
Network Requirements
The LAN subnet of TL-R480T+ is 192.168.0.0 /24, the subnet of VLAN2 under a three layer switch is
192.168.2.0 /24, while the subnet of VLAN3 is 192.168.3.0 /24. The IP of VLAN for cascading the
switch to the Router is 192.168.0.2. Now the hosts within VLAN2 and VLAN3 desire to access the
Internet.

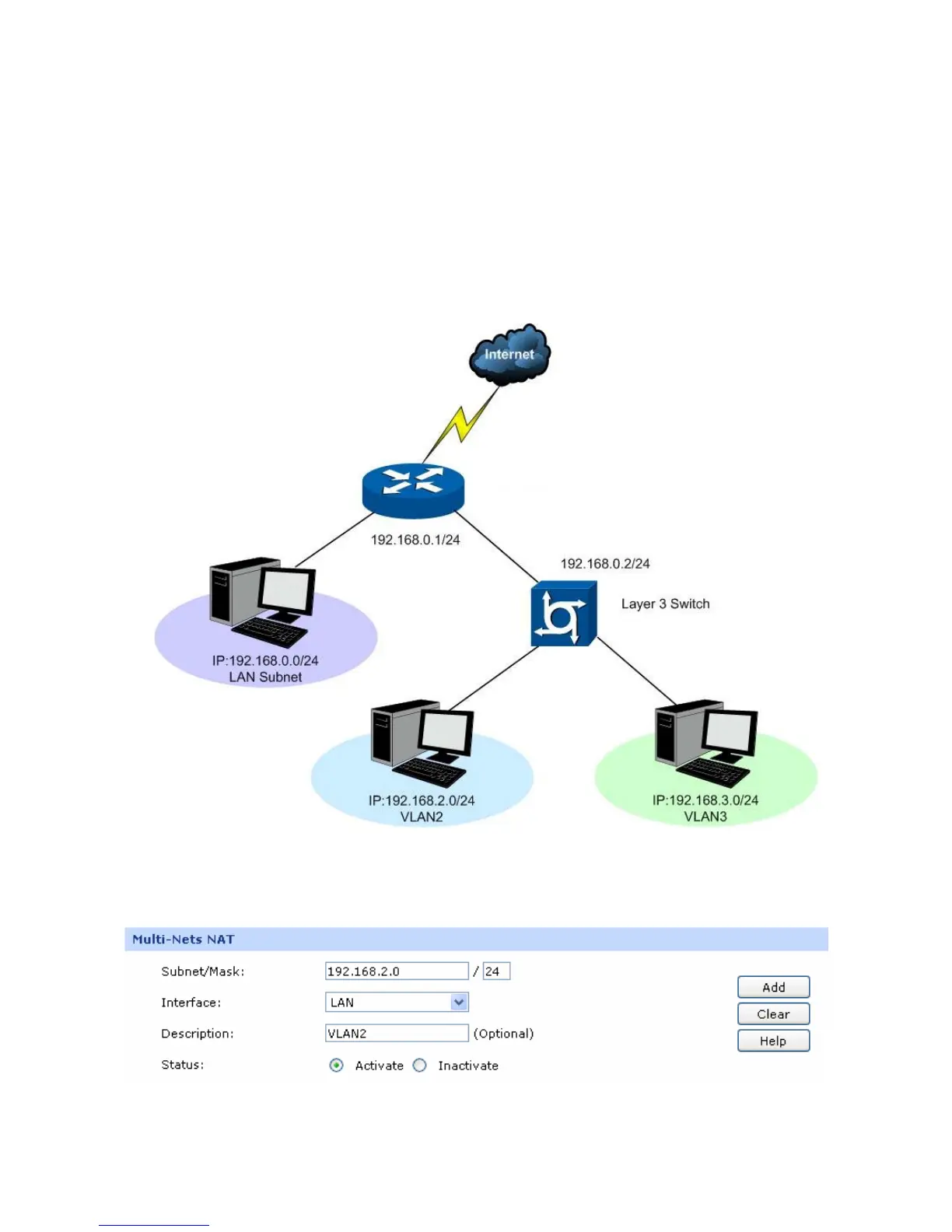

The network topology is shown as the following:
Configuration procedure
1. Establish the Multi-Nets NAT entries with Subnet/Mask of VLAN2 and VLAN3.
The configured entries are as follows:
