300Mbps Multi-Function Wireless N Router User Guide
- 4 -

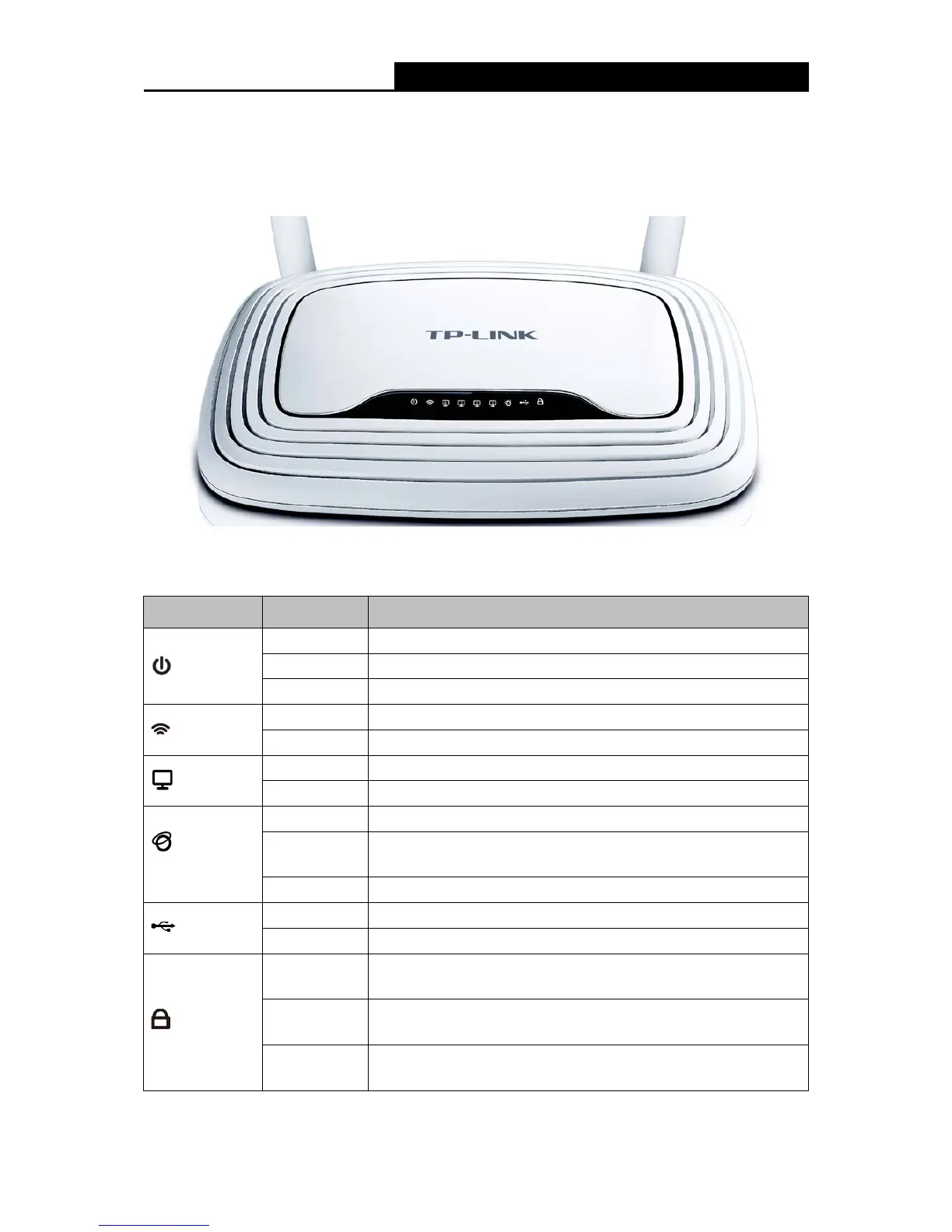

1.4 Panel Layout
1.4.1 The Front Panel
Figure 1-1 Front Panel sketch
The Router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
(Power)
Off
Power is off.
On Power is on.
Flash The device is initializing or upgrading.
(WLAN)
Off The Wireless function is disabled.
The Wireless function is working properly.
(LAN4-1)
Off No device are connected to the corresponding port.
On A device is connected to the corresponding port.
(Internet)
Off The WAN port is not connected.
Orange
The WAN port is connected, but there is no Internet
connection.
Green The router is connected to the Internet.
(USB)
Off No storage device or printer is plugged into the USB port.
On A storage device or printer has connected to the USB port.
(WPS)
Slow Flash
A wireless device is connecting to the network by WPS
function. This process will last in the first 2 minutes.
On
A wireless device has been successfully added to the network
by WPS function.
Quick Flash
A wireless device failed to be added to the network by WPS
function.
Table 1-1 The LEDs Description
