- 13 -

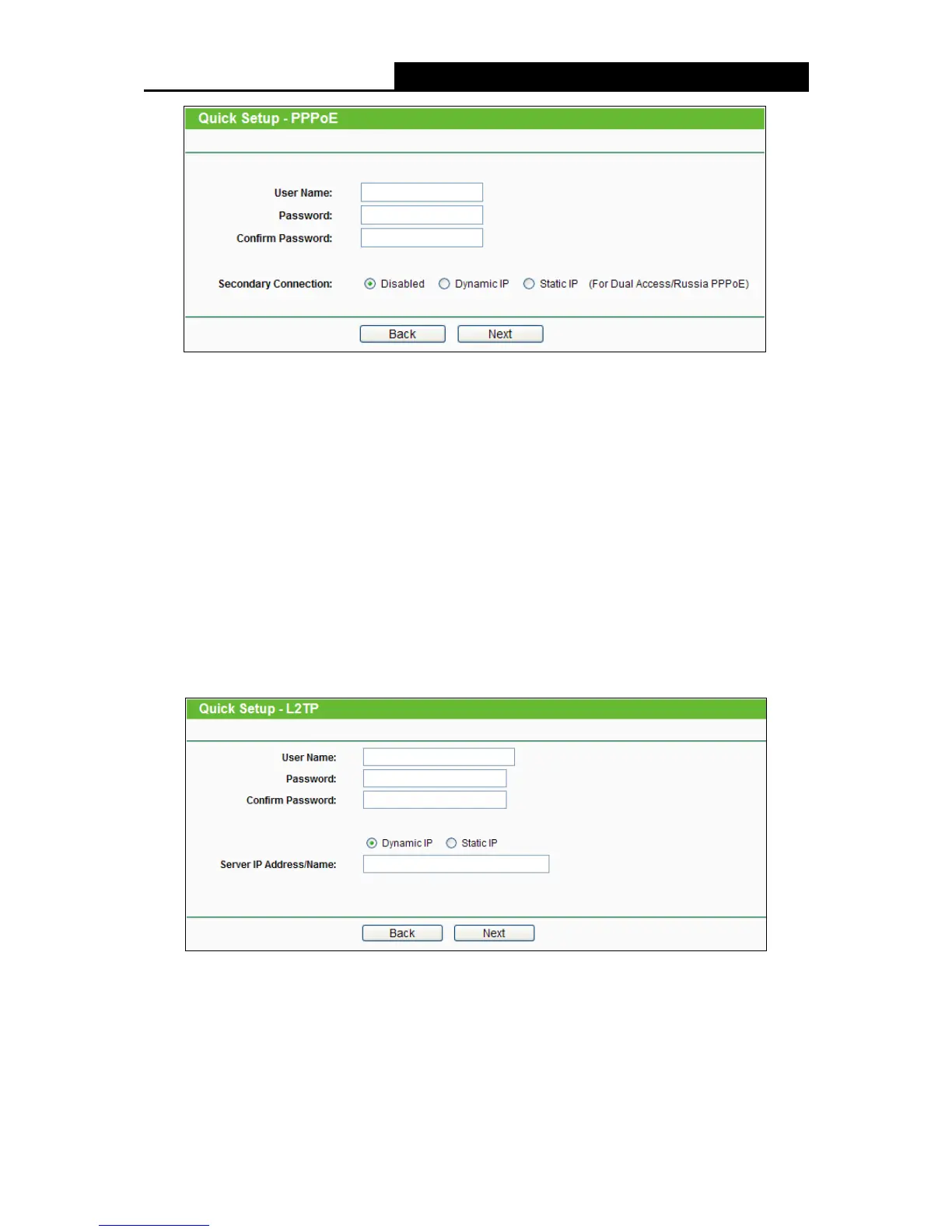

Figure 3-9 Quick Setup – PPPoE/Russia PPPoE
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Confirm Password - Enter the password again to make sure that the password is
correct.
Check the radio button of Dynamic/Static IP to activate the secondary connection if your ISP
provides an extra Connection type such as Dynamic/Static IP to connect to a local area
network.
4) If the connection type detected is L2TP/ Russian L2TP, the next screen will appear as
shown in Figure 3-10.Configure the following parameters and then click Next to continue.
Figure 3-10 Quick Setup – PPTP/Russia PPTP
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
