TL-WR843ND 300Mbps Wireless AP/Client Router User Guide
- 8 -
a) WISP Client Router Mode

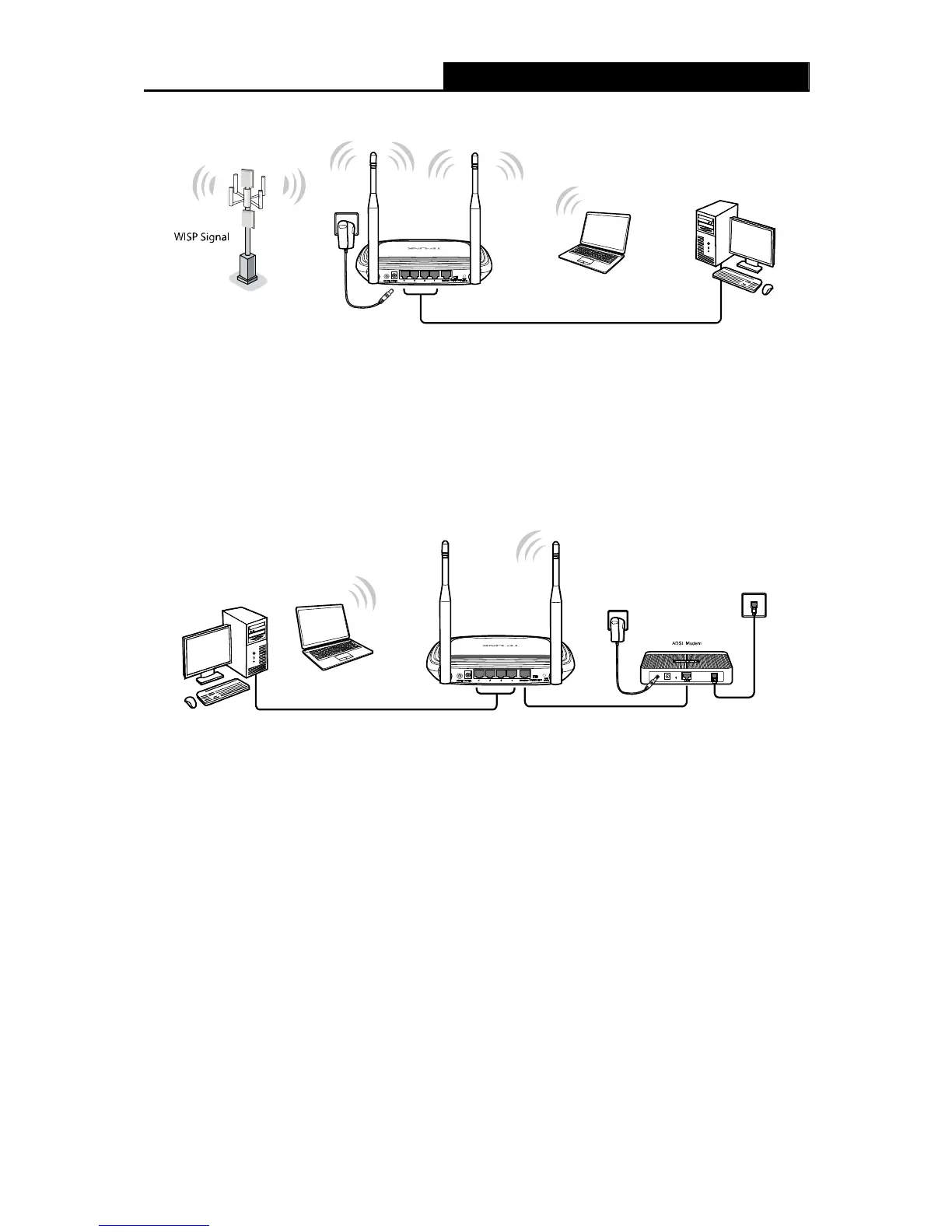

Figure 2-1 Hardware Installation of the TL-WR843ND in WISP Client Router mode
1. Connect the notebook/PC to the LAN port of TL-WR843ND router with an Ethernet cable.
2. Plug one end of the provided power adapter into the POWER jack of the router, and the other
end to a standard electrical wall socket.
3. Press the ON/OFF button of the router.
b) Standard Wireless Router Mode
Figure 2-2 Hardware Installation of the TL-WR843ND in Router mode
1. Connect the PC(s)/Switch/Hub in your LAN to the LAN Ports on the Router.
2. Connect the DSL/Cable Modem to the INTERNET port on the Router.
3. Plug one end of the provided power adapter into the POWER jack of the router, and the other
end to a standard electrical wall socket.
4. Press the ON/OFF button of the router.
