TL-WR843ND 300Mbps Wireless AP/Client Router User Guide
- 9 -

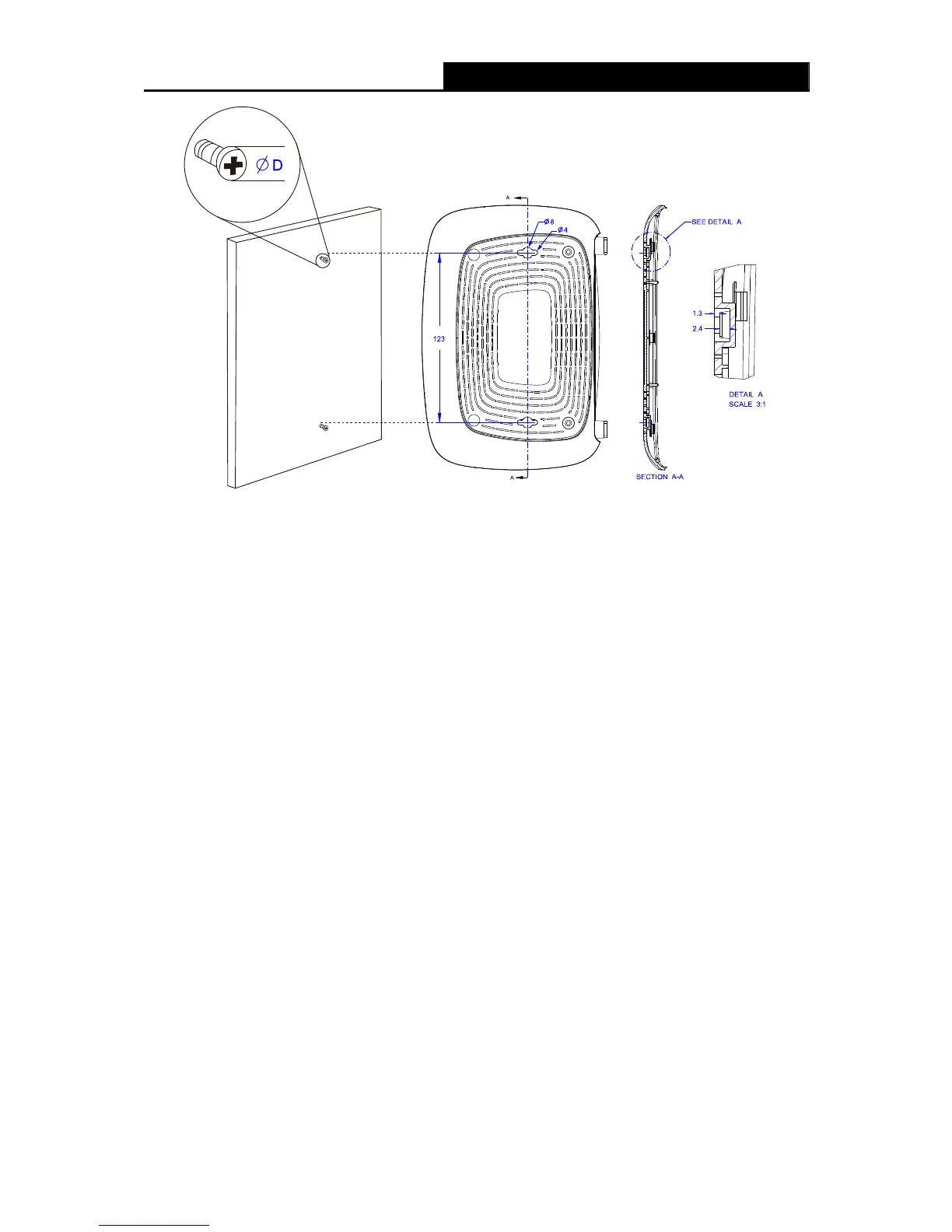

Figure 2-3 Wall-mount Install
Note: The diameter of the screw, 4mm<D<8mm, and the distance of two screws is 123mm. The
screw that project from the wall need around 4mm based, and the length of the screw need to be
at least 20mm to withstand the weight of the product.
