TL-WR843ND 300Mbps Wireless AP/Client Router User Guide
- 18 -

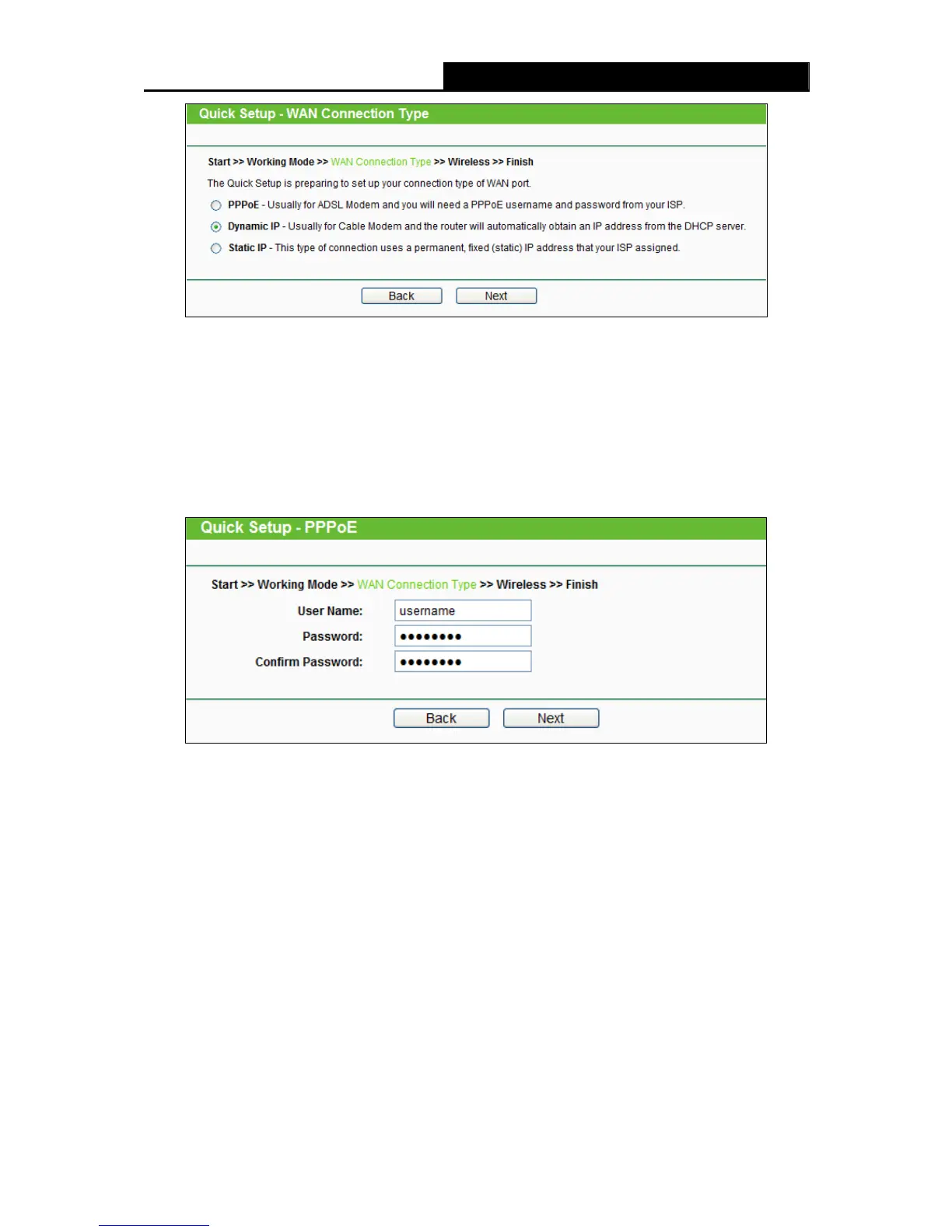

Figure 3-13 Quick Setup – WAN Connection Type
The router in Client Router mode supports three popular ways to connect to the Internet. Please
select the one compatible with your ISP.
a) If you choose "Dynamic IP", the router will automatically receive the IP parameters from your
ISP without needing to enter any parameters.
b) If you choose "PPPoE", you will see this page shown in Figure 3-14.
Figure 3-14 PPPoE
User Name and Password - Enter the User Name and Password provided by your
ISP. These fields are case-sensitive.
Confirm Password - Enter again the Password provided by your ISP to ensure the
password you entered is correct.
c) If you Choose "Static IP", the Static IP settings page will appear as shown in Figure 3-15.
