TL-WR843ND 300Mbps Wireless AP/Client Router User Guide
- 71 -

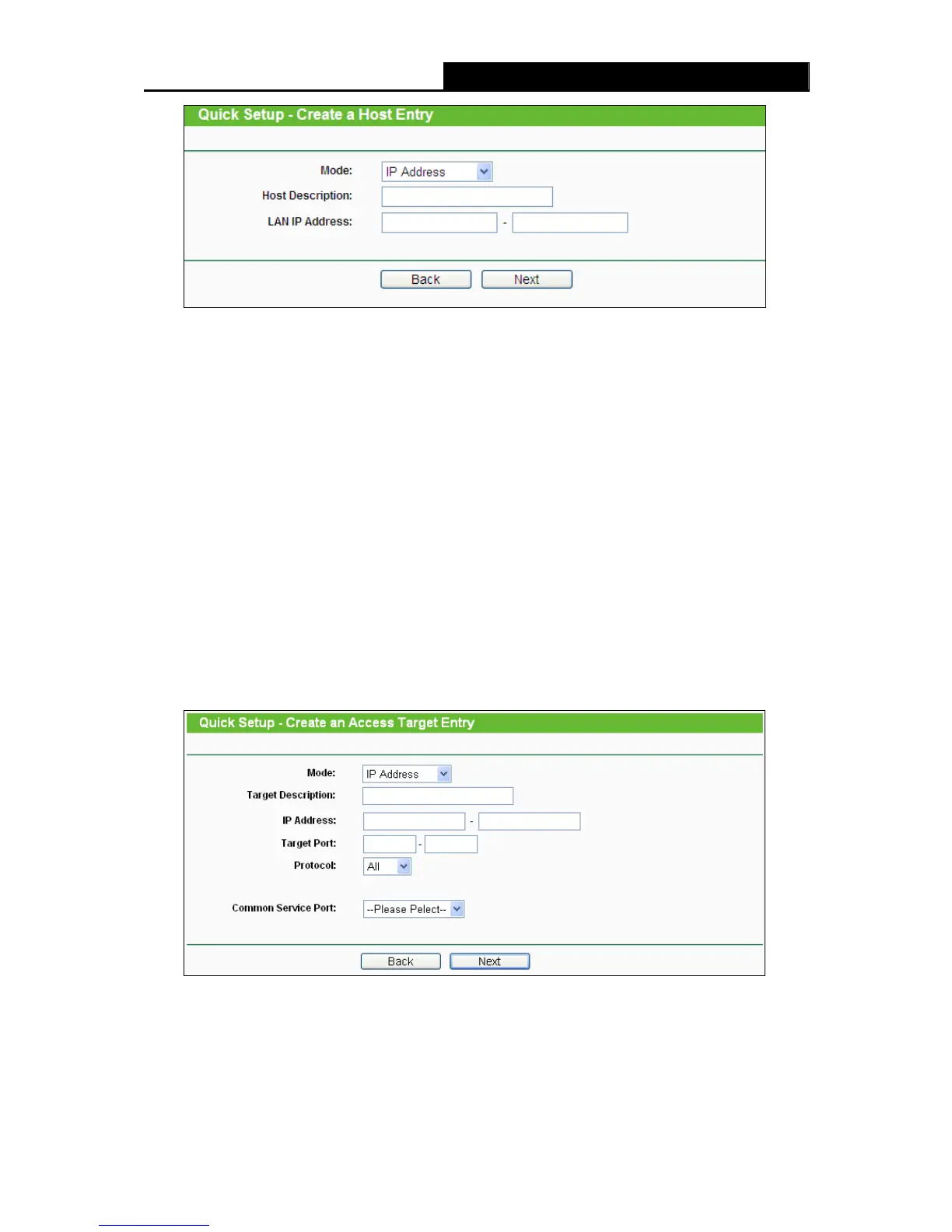

Figure 4-51 Quick Setup – Create a Host Entry
Mode - Here are two options, IP Address and MAC Address. You can select either of them
from the drop-down list.
Host Description - In this field, create a unique description for the host (e.g. Host_1).
If the IP Address is selected, you can see the following item:
LAN IP Address - Enter the IP address or address range of the host in dotted-decimal format
(e.g. 192.168.0.23).
If the MAC Address is selected, you can see the following item:
MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).
2. Click Next when finishing creating the host entry, and the next screen will appear as shown in
Figure 4-52.
Figure 4-52 Quick Setup – Create an Access Target Entry
Mode - Here are two options, IP Address and Domain Name. You can choose either of them
from the drop-down list.
