TQ Display V01 - Operation and Indication Components; Display Overview; Remote Overview

EN – 7
3 Operation and indication components
3.1 Overview Display
Pos. in
Fig. 1
Description
1 State of charge Battery
(max. 10 bars, 1 bar
corresponds 10 %)
2 State of charge range
extender (max. 5 bars,
1 bar corresponds 20 %)
3 Display panel for
different screen views
with riding informa-
tion (see section 6 auf
Seite 9)
4 Assist mode
(OFF,
)
5 Button
3.2 Overview Remote
Pos. in
Fig. 2
Description
1 UP Button
2 DOWN Button

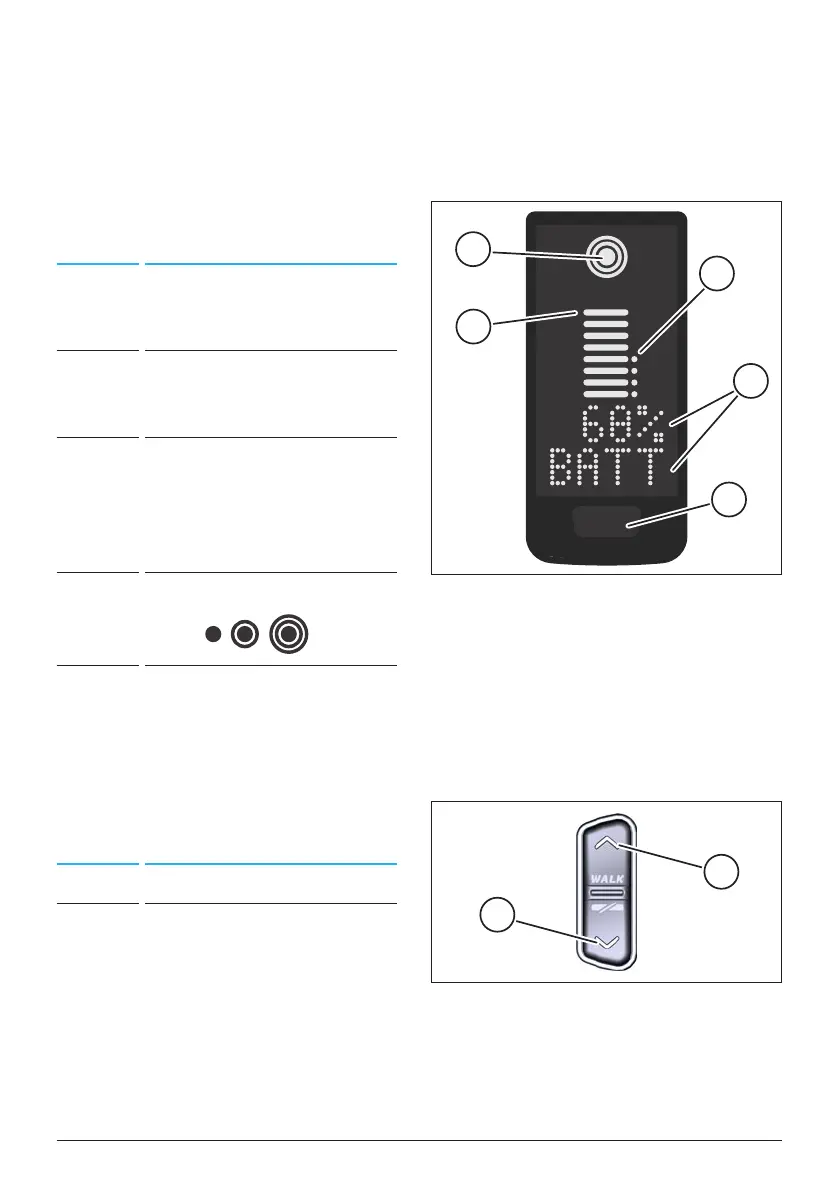

Fig. 1: Operation and indicaton
components on Display
1
2
4
5
3
Fig. 2: Operation on the Remote
1
2
