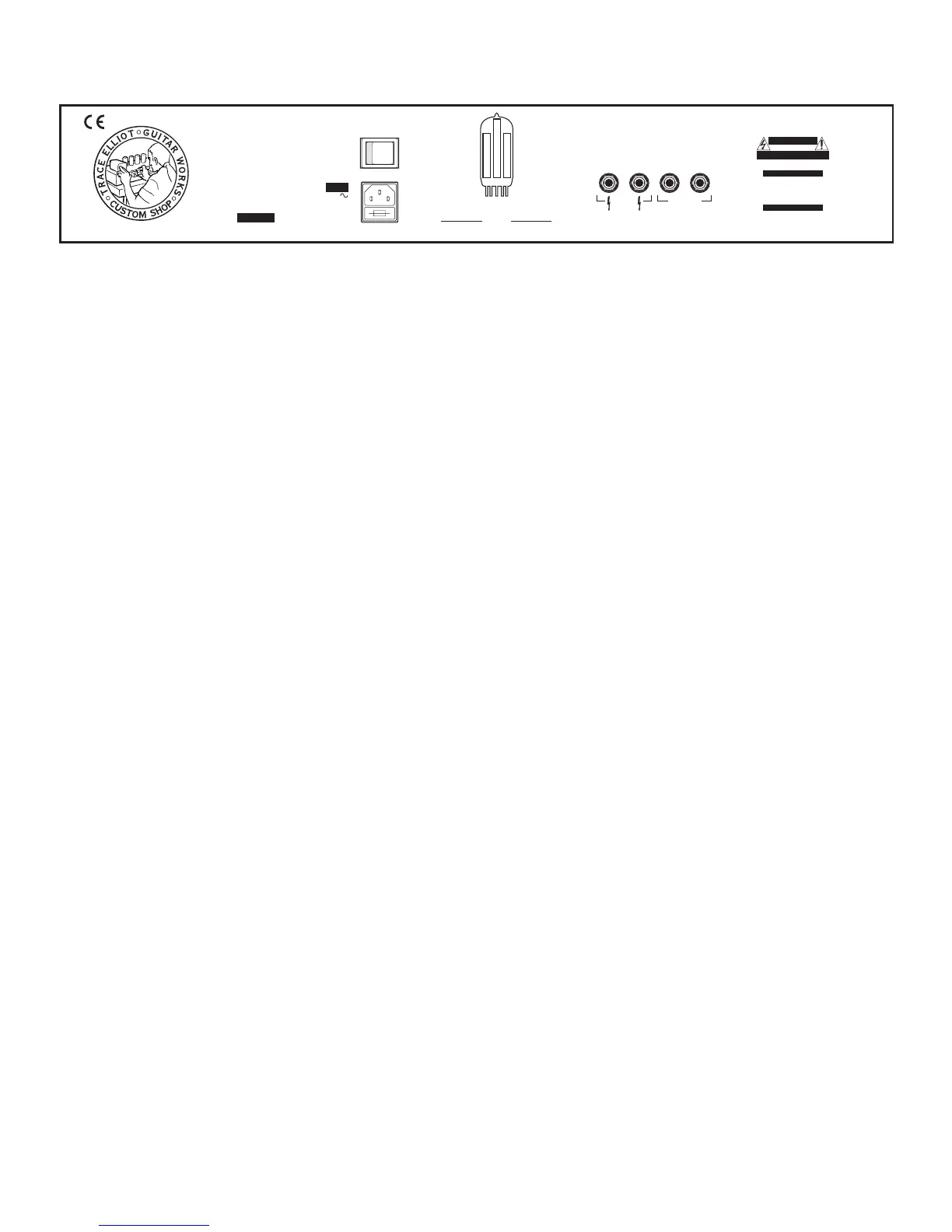

REAR PANEL FEATURES
Mains inlet
Connect the supplied IEC mains lead here. Always ensure that the voltage printed on the rear of the unit
corresponds with the mains supply voltage in your area.
Fuse holder
The fuse holder tray forms part of the IEC mains inlet. If the mains fuse should blow, replace it with one of
EXACTLY the same type and rating. If the fuse should blow a second time, please refer the unit to an
approved Trace Elliot Service Centre.
Power Switch
Switches mains power to the unit ON and OFF. After using the amplifier, please switch it OFF and leave it to
stand for a couple of minutes before moving it, to allow the valve to cool down. This will increase the life of
the ECC83 inside your amplifier.
Loudspeaker output sockets
These sockets allow the loudspeaker output signals from your amplifier to be connected into extension
loudspeaker cabinets.
Always switch the amplifier OFF before disconnecting or connecting loudspeakers.
The overall minimum load impedance for each socket must NEVER be less than 8 ohms, or you may
cause damage to the amplifier and will invalidate your warranty.
Boost/chorus footswitch socket
Plugging a dual latching footswitch into this socket will enable you to remotely control the master volume
BOOST and Quad chorus effect.
Channel/gain footswitch socket
Plugging a dual latching footswitch into this socket will enable you to remotely switch between channels one
and two, and select the two gain modes of channel two.
OUTPUT POWER
130 WATTS RMS @ 2x8Ω
260 WATTS PEAK
SERIAL No:
MAINS INPUT 311 V
.
A
(2.71 A @ 115 V)
MAINS FUSE
100 V - T3.15 A
115 V - T3.15 A
230 V - T1.6 A
50/60 Hz
V A.C.
OFF
ON
POWER
ECC83
SUPER TRAMP
TUBE
SPEAKER
OUTPUT
MIN 8Ω
SPEAKER
RIGHT
SPEAKER
LEFT
BOOST/
CHORUS
CHANNEL/
GAIN
FOOTSWITCH
WARNING - ATTENTION
THIS APPARATUS MUST BE EARTHED.
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE ONLY
WITH SAME TYPE AND RATING OF FUSE
UTILISER UN FUSIBLE DE RECHANGE DE
MEME TYPE ET CALIBRE
