e) Connect the two control cables together,
connection is by male and female connectors.
Both connectors have a positive fitting (D)
connections and can only be connected in
one alignment only (Fig. 22 & 23). The
connector should tighten completely.
(Fig. 24 item E)
10.2 Connecting to power supply and
function control
a) Activate Power supply:
a. Plug in the control box power supply 110 V -
1 PH, 50/60 Hz, (15 amp) (UL/CSA) or 220 V
- 1 PH, 50/60 Hz, (10 amp) (EU -
2006/42/EC) to an approved outlet.
b. Turn the key of the service switch (Fig. 24)
to the right – the EMERGENCY-STOP-
button comes out, the signal lamp
illuminates green.
The Tractelift™ Type II is ready for use.
WARNING
Never set the remote to a higher weight than
the current user weight.
First time users should test the remote at the
lowest setting to gain a comfort level of the
pulling system, before adjusting to the higher
pulling levels.
10.3 Disconnecting the Control
Panel
a) Disconnect the power supply and the
control cables
b) Disengage the panel pin and slide the
control box up off the mounting plate.
c) Place the control panel back into the
carrying container

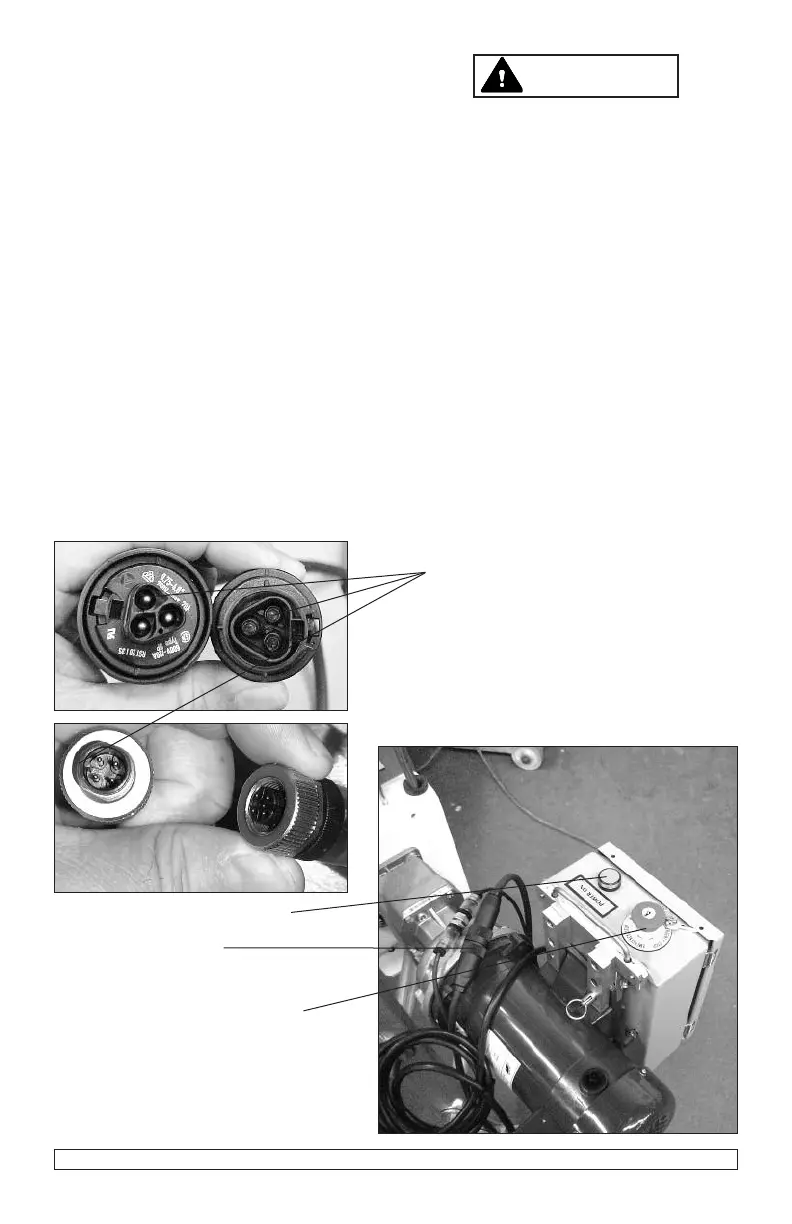

Fig.22
Fig.23
Fig.24
D
Signal lamp
E
Service Switch
and
EMERGENCY-STOP
