Tractel Tractelift Type II User Manual

Model: TRDC
User Weight: Standard: approx. 102 lbf to 160 lbf (51 kg to 80 kg) (Blue Remote)
Option: approx. 160 lbf to 250 lbf (80 kg to 125kg) (Red Remote)
Pulling Force: Standard: approx. 60 lbf to 100 lbf (30 kg to 50 kg) (Blue Remote)
Option: approx. 110 lbf to 150 lbf (55 kg to 75 kg) (Red Remote)
No load round belt speed: max. 120 ft/min / 37 m/min
Belt Diameter: 12.5mm (approximately 0.5”)
Temperature range: -31 °F to +104 °F / -35 °C to + 40 °C /
Power supply: Standard: 110 V - 1 PH, 50/60 Hz, (3/4 HP) (UL/CSA)
220 V - 1 PH, 50/60 Hz, (3/4 HP) (EU - 2006/42/EC)
Wireless: NA - FCC part 15, EU 300-328, EU 300-440 class 2
Duty cycle: 100 %
Insulation class: Standard: IP 56
Sound Levels: Sound levels do not exceed 70 db
Tractel® is a ISO 9001:2008 Company
Rev.: 10/13 – NA Operating manual Tractelift
™
Type II Page 6 of 28
Copyright 2013 Tractel
®
P4796 NA all rights reserved.
2. Technical Data

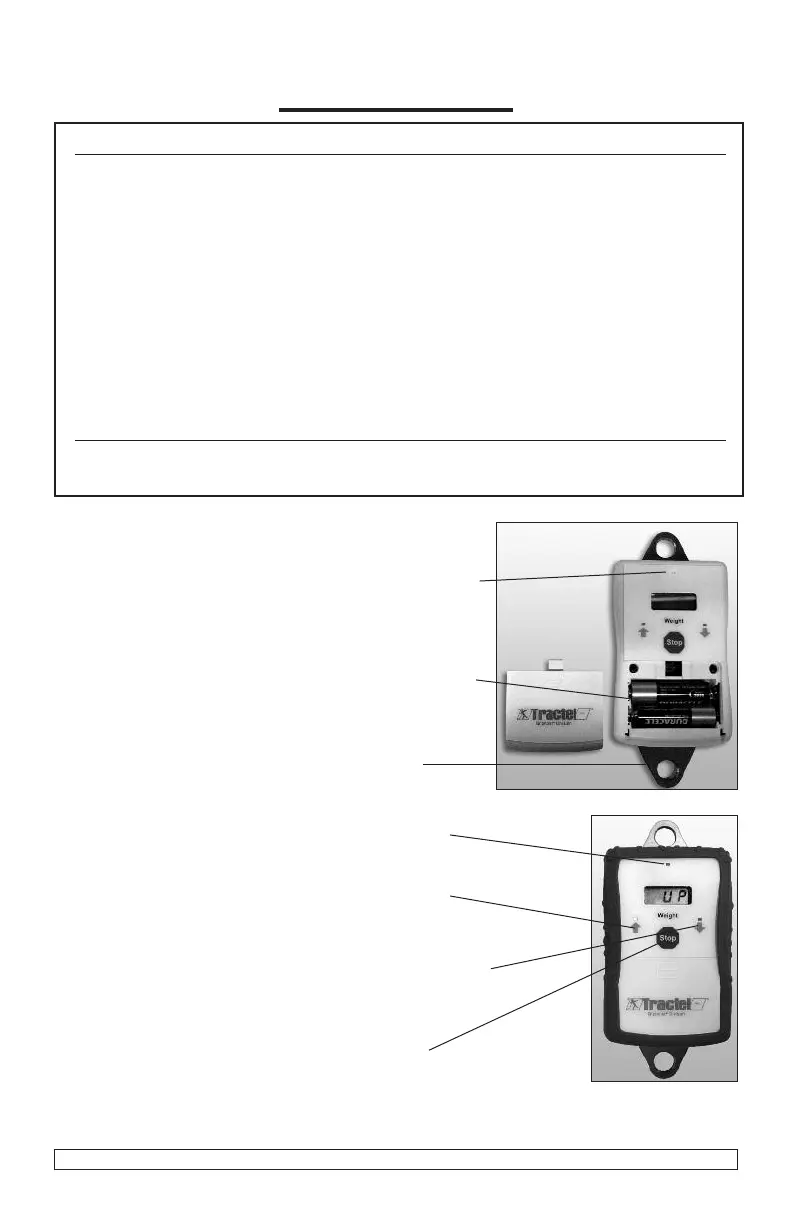

User Remote Control
Low battery indicator
(red)
Battery compartment
(uses 2 AA Alkaline or
rechargeable
batteries)
Steel Plate
Illuminated LCD
display
Direction key -
Increase weight
capacity arrow
(UP displayed)
Direction key -
Decrease weight
capacity arrow
(dn displayed)
Two models based on user weight:
Blue 102 to 160 lbs. (51 - 80 kg)
Red 160 to 250 lbs. (80 - 125 kg)
1.1 User Remote Control
a) The wireless radio uses a 2.4 GHz
frequency and is compliant with,
FCC CFR47 Part 15 (NA), EN300-328,
EN300-428 class 2
b) Plastic case with rubberized cover
(blue for 102-160 lb (51 - 80 kg), red
for 160-250lb (80 kg to 125 kg)
c) Battery compartment with cover LCD
screen, background lit, to indicate
weight selected, operator is able to in-
crease or decrease preset in 10 lb (5 kg)
increments.
d) 3 tactile buttons for Stop, Up and Down.
e) LED’s to indicate Up, Down, Low Battery
and E5 error code, indicates the emer-
gency stop button has pressed.
f) Individual code for each remote,
disables other remotes to command
system at the same time
g) Remote to enter “sleep” mode if
inactive after 5 minutes.
h) Battery compartment for 2 AA
batteries (included). See page 14 Item 7
and Fig. 16 for replacing the batteries.
I) Stainless steel plate with 2 eyelids for
mounting of the remote (top and bottom
part of the remote)

Tractel Tractelift Type II Specifications

General

Brand	Tractel
Model	Tractelift Type II
Category	Safety Equipment
Language	English
