5. Using the belt grab
Follow the instructions delivered
with the belt grab in use!
5.1 Installing the belt grab
a) Attach and lock the locking
carabiner to the lower eye of the belt
grab (Fig. 6).
b) Open the belt grab: Pull down the
black lever, and turn it to the right
together with the clamping jaw. When
letting the lever go, the clamping jaw
should lock in its open position
(Fig. 6).
c) Put the belt grab on the round belt
(Fig. 7), and push the black lever
downwards. The spring mechanism
pushes the clamping jaw towards the
round belt (Fig. 8).
d) Slide the belt grab – with the
Carabineer connector showing
towards the operator.
e) Fix the belt grab to the round belt
by jerkling/pulling it downwards, so
that the teeth of the clamping jaw can
securely grip the belt.
f) Attach the top of the remote
control to this Carabineer and attach
a second Carabiner to the bottom of
the remote control the bottom end is
now connected to the users safety
harness (Fig. 9).
Important: The grip of the belt
grab’s teeth does not affect the
round belt’s safety.

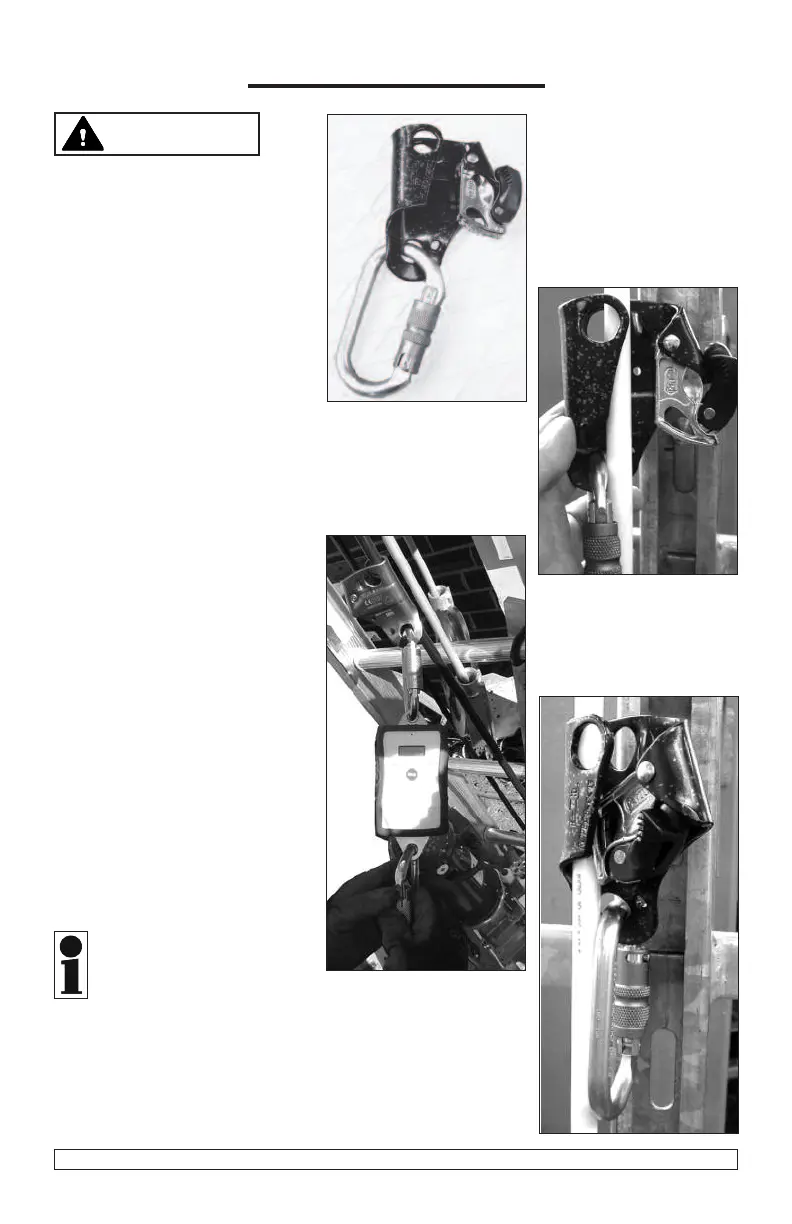

Fig.6
Fig.7
Fig.8
Fig.9
