3.3 Drive and Control
At the lower end of the
ladder (Fig. 3), a motor
that drives pretension
endless round belt by
means of a driver pulley.
Shown with and without
the removable control box
in place.
The continuous welded
round belt, made of special synthetic material
(Ø 1/2 inch / 12,5 mm) runs on the driver pulley
of the motor and a diverter pulley at the upper
end of the vertical ladder (Fig. 2).
3.4 Connection to the round belt
The connection to the round belt is made by a belt grab, fixed to a locking carabiner, with the top of the
remote control attached, on the bottom side of the remote a second carabiner is attached which attaches to
the users safety harness. (Fig. 4).

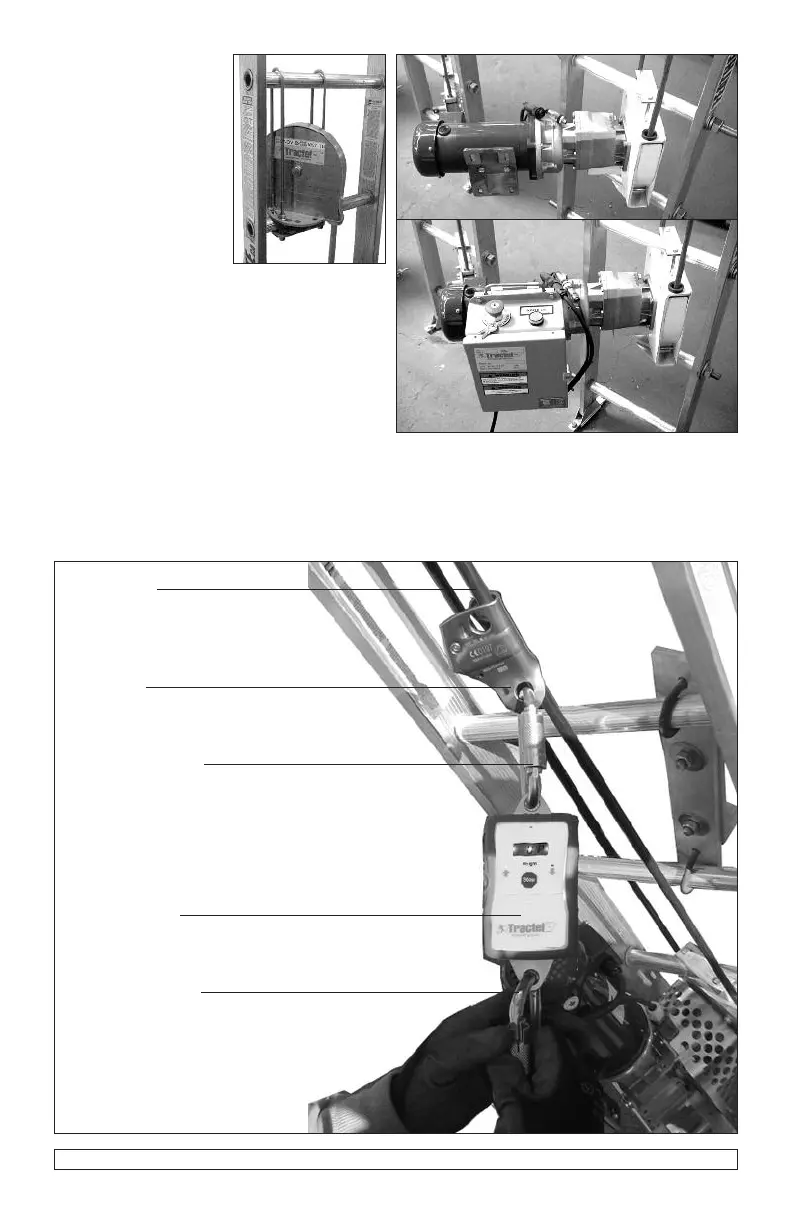

Fig. 2
Fig. 3
Fig.4
Round belt
Belt grab
Locking carabiner
User Remote
Locking carabiner
