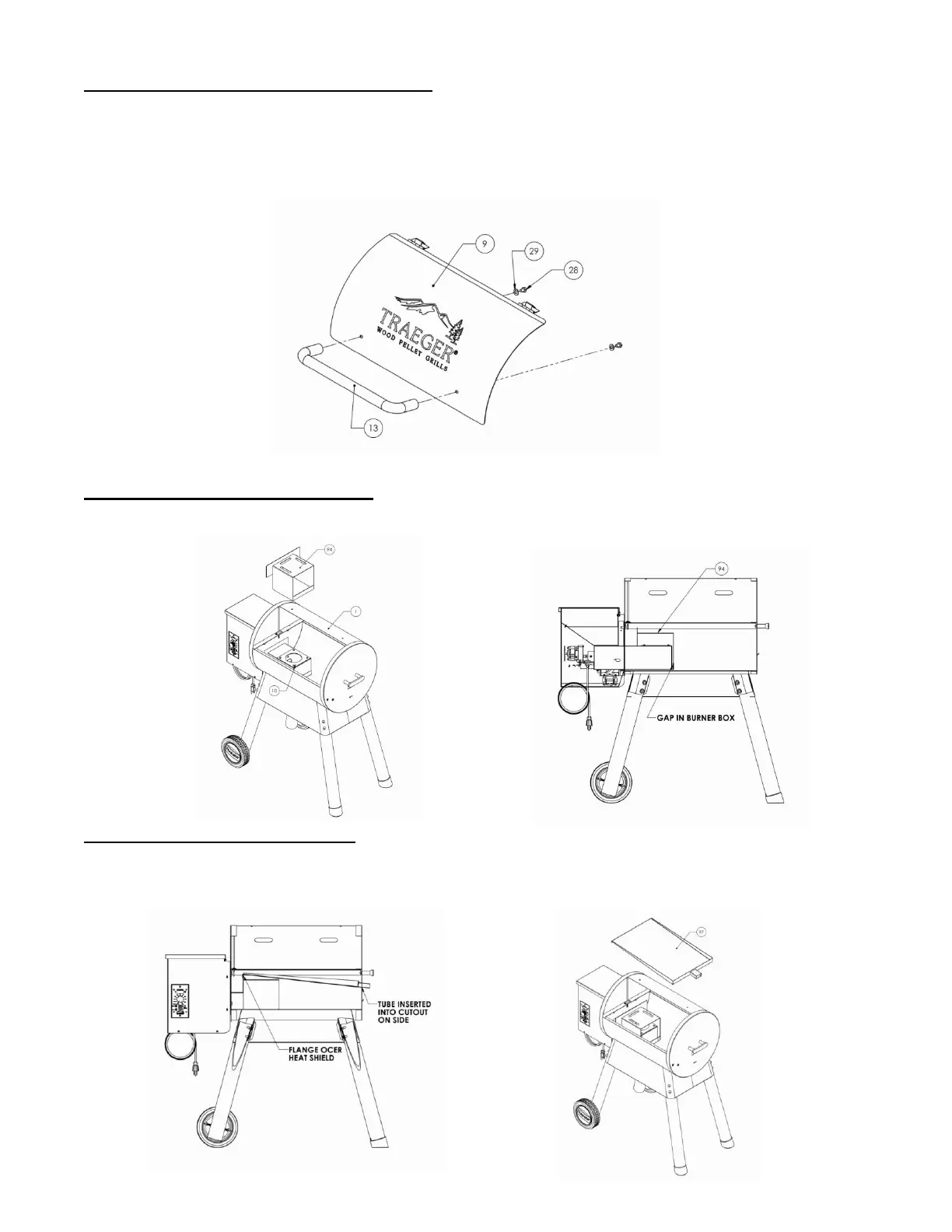

INSTALLING DOOR HANDLE TO DOOR
Hardware required: 2 bolts, 2 washers
1. Insert handle (13) onto the two slots located in the Door (9).
2. Install Washer (29) and Bolt (28) onto the Handle (13) bolt from inside the Door (9) and
tighten. Repeat the process on the other side. Do not over tighten the Bolts.
INSTALLING THE HEAT BAFFLE
Insert the Heat Baffle (94) onto the inside of the Grill Frame Assembly (1) and place onto the
gap in the burner box and centered side to side over the firepot (10).
INSTALL GREASE DRAIN PAN
Insert grease drain pan (97) onto the inside of the Grill Frame Body (1) and insert the
tube into the hole provided on the right side of the Grill Frame Body (1). Then insert the
Flange of the Grease Drain Pan (97) onto the flange on the Heat Baffle (94)
