Blazer4 150X/200X Set up instruction
6
2.6 Assemble the front wheel (pic.9): Take down the tire bolts on the hub,
set up the front wheel on the right position of hub, fix the tire bolts with
37-44NM torque, put on the hub cover.

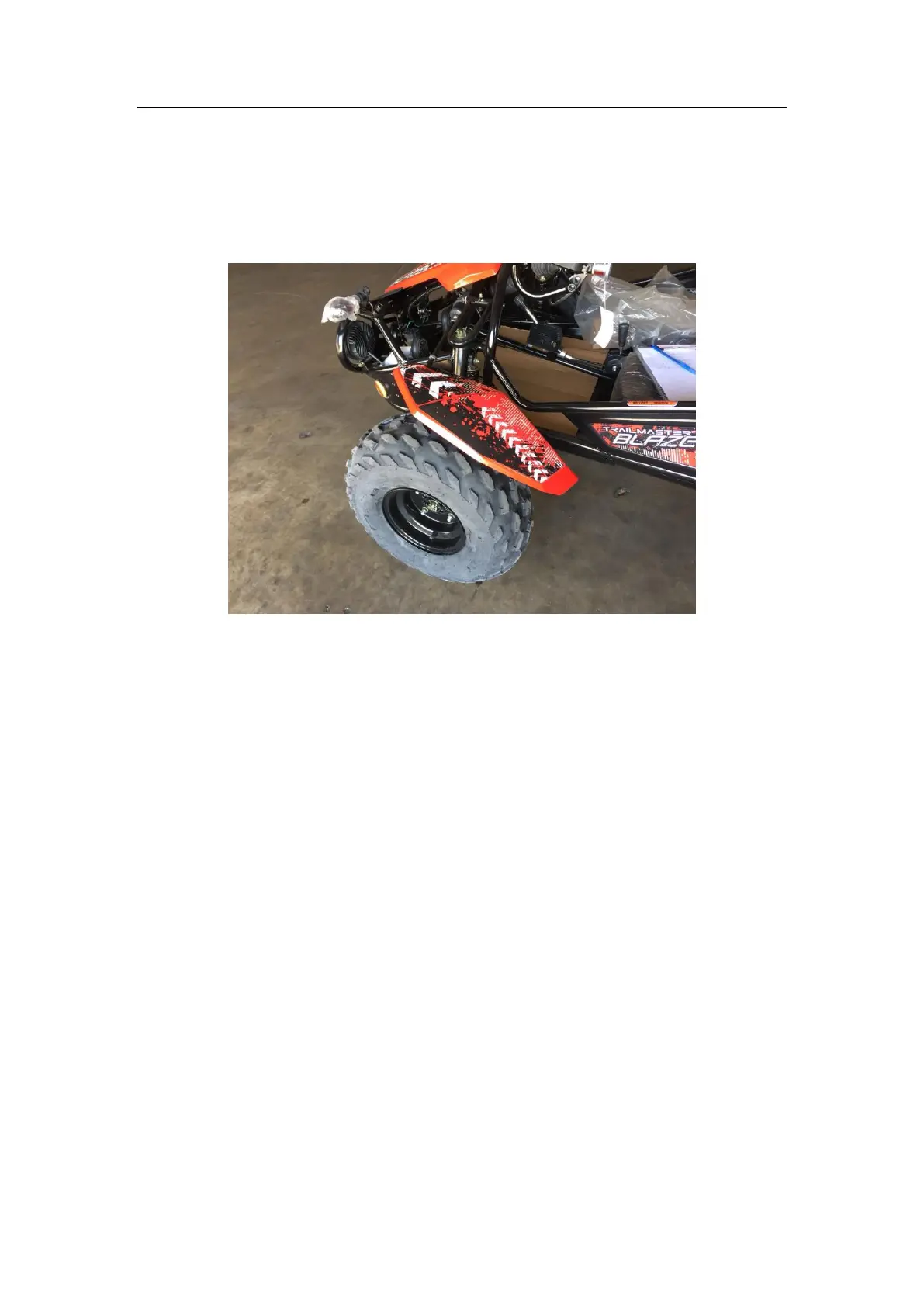

Pic.9
2.6 Assemble the rear cargo rack (pic.10): Hold the rear cargo rack
aiming installation positions on the cargo rack and the frame (to avoid
bumping between frame and cargo rack, please lay on some air bubble on
the frame for better protection!), put the R-washers onto the bolts M8X55,
screw on the bolts 3circle. Then put on the bolts M8x20 and M8
self-locking nuts to the rack support arms, attach the arms with rear cargo
rack and frame together, tightening all the bolts.
