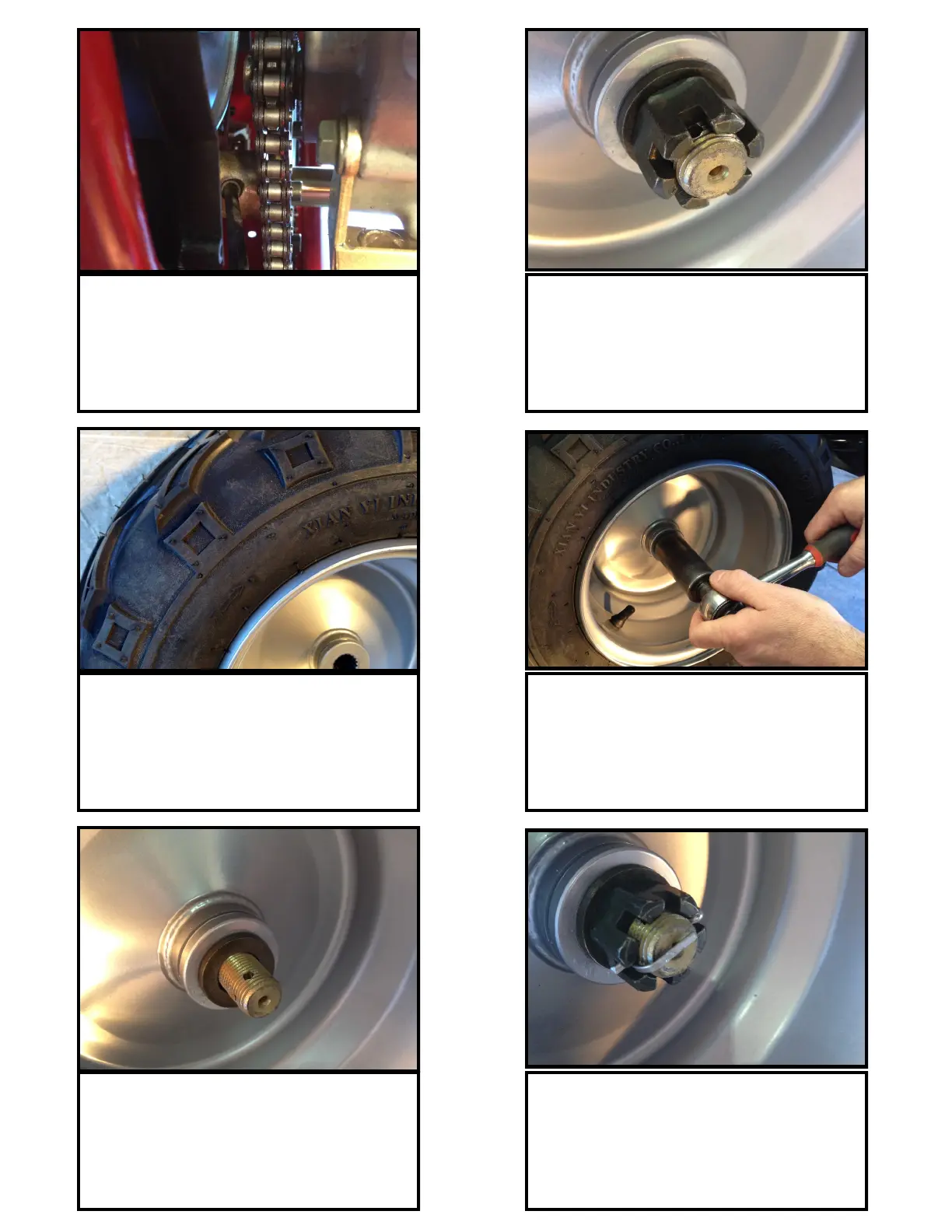

Locate the set bolt on the sprocket
hub and tighten securely.
62
Locate the rear passenger’s side
wheel. This is one of the larger
wheels. The tread on top of the tire will point
towards the front of the go-kart & the air valve
stem will be facing towards the outside.
63
Place the wheel onto the rear axle.
64
Place the largest washer and castle
nut onto the axle.
65
Tighten the castle nut securely and
align the holes in the axle with the
nut.
66
Install the cotter pin into the axle nut.
Bend one end of the cotter pin over
the end of the axle. Clip off other end with
cutters.
