MINI XRX Set up instruction
6
of frame, use 22-29NM torque to fix the shocks attached the frame. (Note:
1NM = 0.74 lb ft)

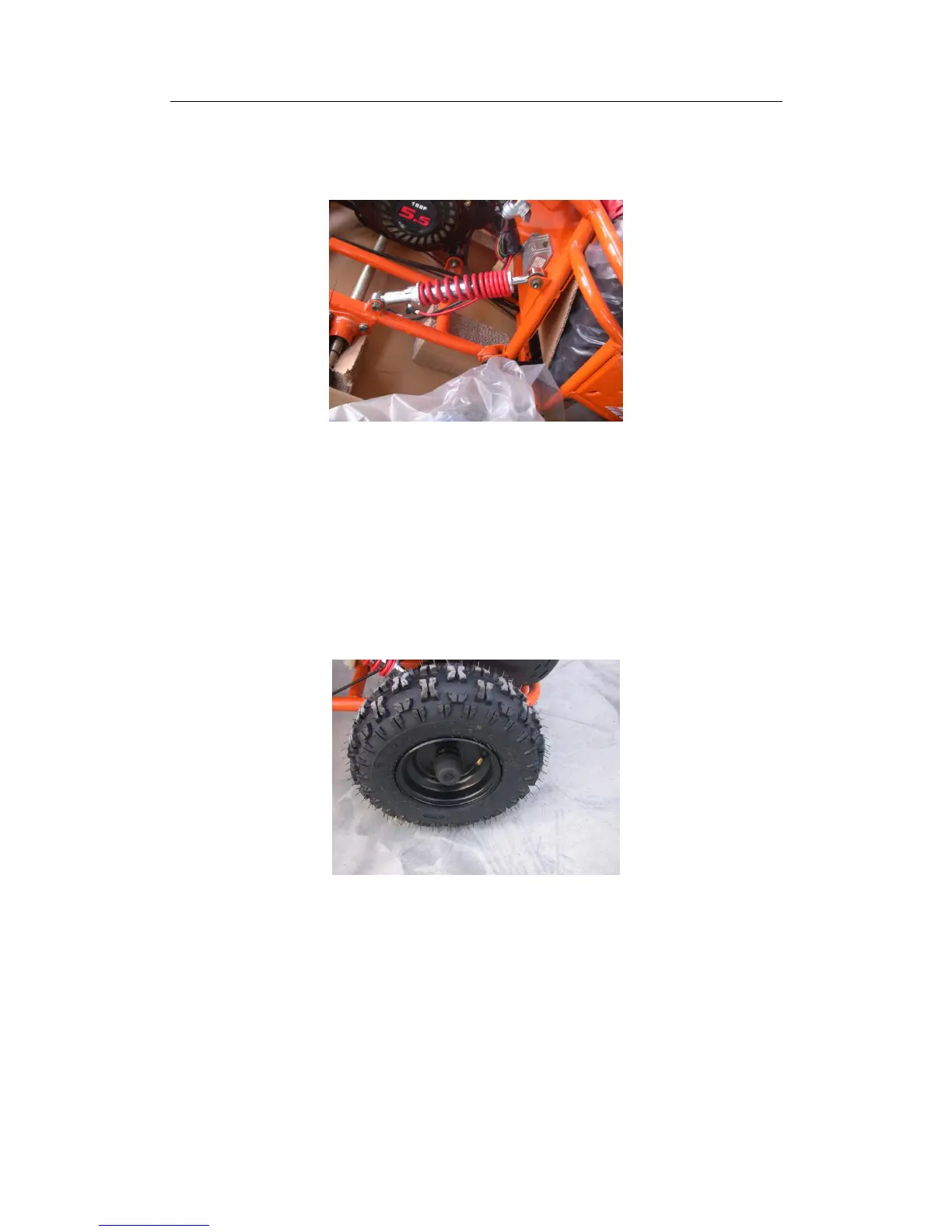

Pic.12
2.2 Assemble the rear wheels (pic.13): Take off the nut M14x1.5 and Φ
14 washer from the rear axle. Raise up the tail part and set up the rear
wheel onto the rear axle, screw the washer and nut screw tightly with
83-98NM, then open the cotter pin 3X40 for fixing, cover the hub cover.
Pic.13
2.3 Assemble front lower suspension arm (Pic.14): lift the front part of go
kart onto a table. Take down the nut and washer from the spindle and strut
support, insert the ball head into the mount position of lower suspension
arm (square part of ball head is placed to the square hole of suspension
