arm), put on the washer and nut. Screw on the bolt with torque 37-44NM.
At last open the cotter pin 2X20 for fixing.

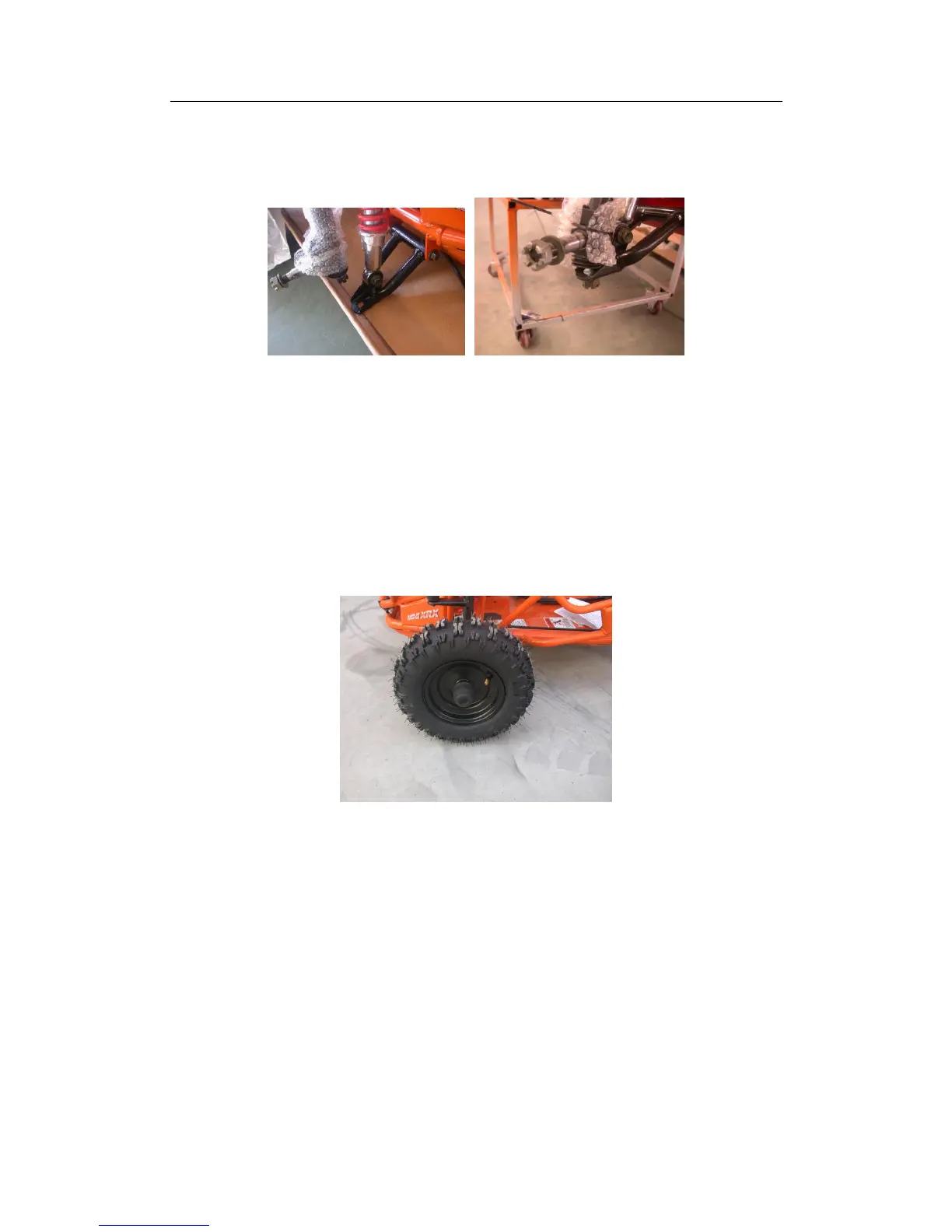

Pic.14
2.4 Assemble the front wheel (pic.15): Take off the nut M12x1.25 and Φ
12 washer from the rear axle. Raise up the front part and set up the rear
wheel onto the rear axle, screw the washer and nut screw tightly with
55-62NM, cover the hub cover.
Pic.15
2.5 Assemble the sport seat (Pic.16): Take down the bolt from the middle
fixing point of safety belt, unloose the safety belt. Cut a 50mm long gap
on the seam between seat and back. Insert the safety belt through the gap,
install the sport seat on the frame, and screw on the 4 M8x35 bolts to fix
the sport seat and safety belt.
