MINI XRX Set up instruction
8

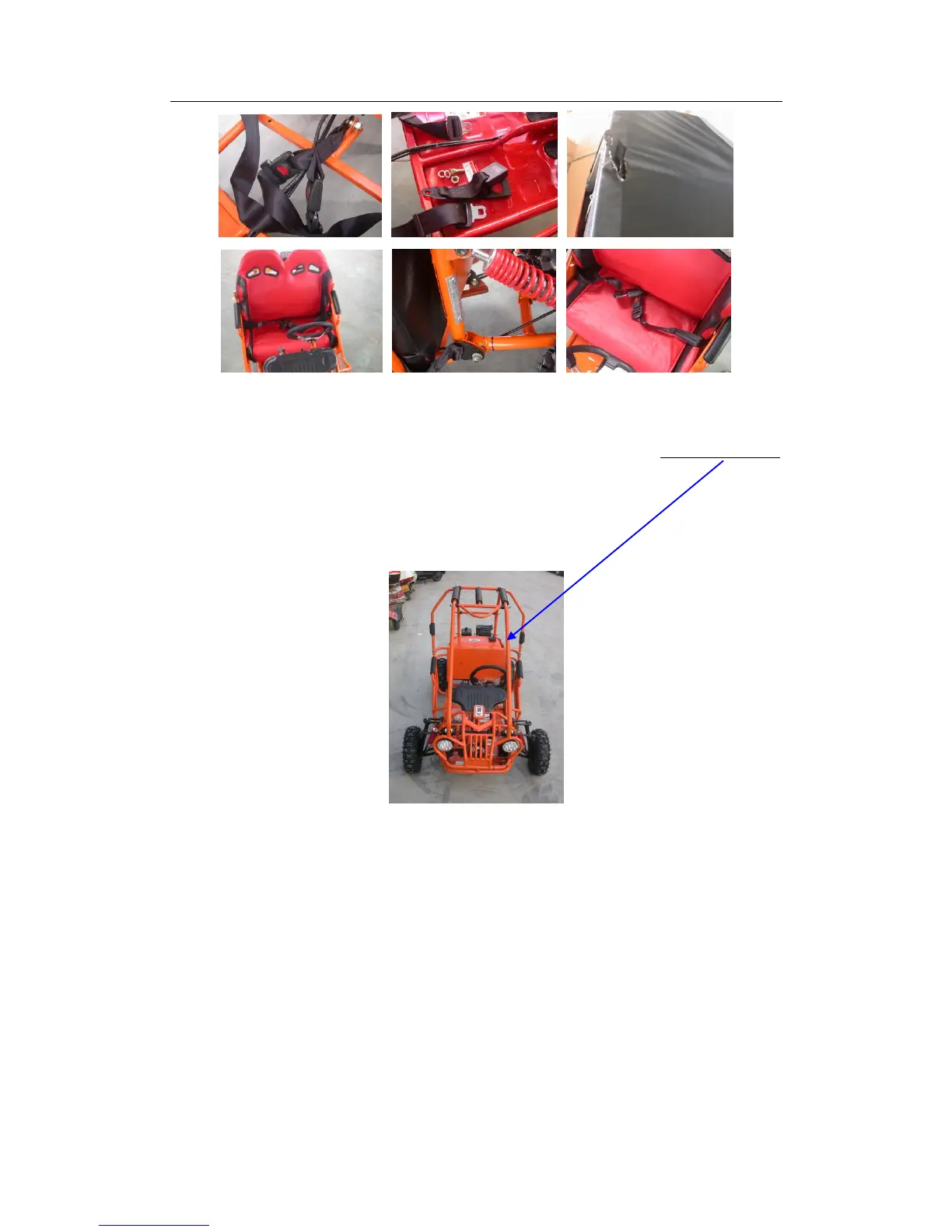

Pic.16
2.6 Assemble the long bar cages (Pic.17): put two sides of long bar cages
onto the connection rods on frame fixing with bolt M8x45, R-washer and
M8 nut. Tighten the bolts.
Pic.17
2.7 Assemble the side bar (pic.18): Put one side of side bar attaching the
long bar cage, connect the side bar and the long bar cage together with
bolt M8x45, R-washer, screw the bolts 3 turns. Connect another side of
side bar onto the connection rod of frame with R-washer, bolt M8x45 and
bolt. Screw on all the bolts tightly.
To Next Page
