TrailMaster MINI XRX - Steering System Assembly and Alignment; Spindle Nut and Steering Joint Assembly

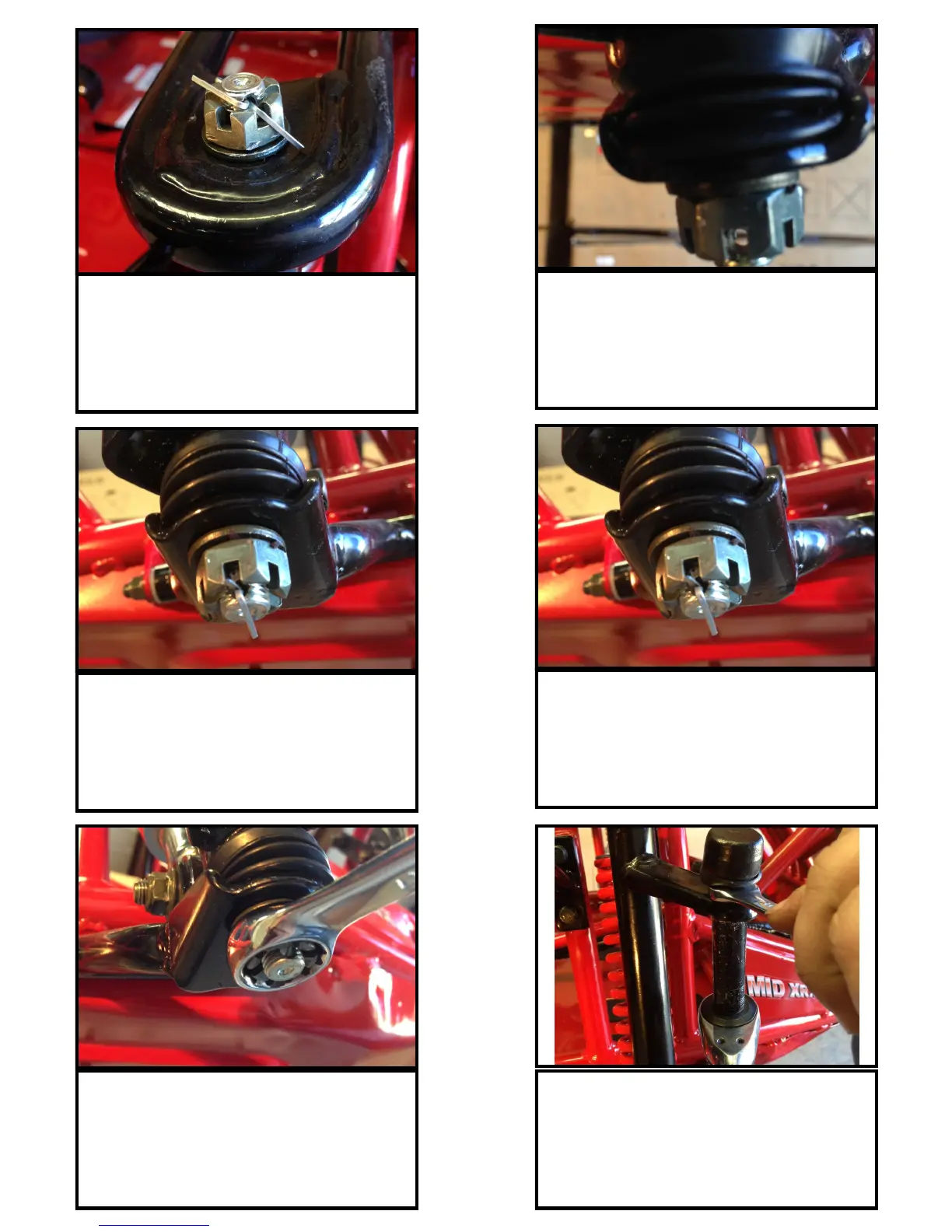

67
Locate passenger’s side top spindle
nut and remove cotter pin.
NOTE: Save cotter pin.
68
Locate passenger’s side bottom spin-
dle nut and remove cotter pin.
NOTE: Save cotter pin.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
69
Tighten both nuts securely with a
17mm wrench.
GOKARTMASTERS.COM
70
Make sure the hole in the spindle
lines up with the castle nut.
71
Reinstall cotter pins. Bend and cut off
excess. Repeat Steps 67-71 on the
driver’s side spindle.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
72
Locate outer steering joints and tight-
en the nut securely using a 12mm
socket on the nut and a 12mm wrench on the
top.
