Trane Technologies Tracer TD7 - Page 17

17
11UNT-PRC002-GB
Sound power levels
Discharge
Measurement conditions:
Measurements taken in a room adjacent to the room containing the FWD, at the outlet of the rectangular duct (1.5 m
long) fixed to its discharge opening.
Fan Power level in dB(A), per Hz frequency band Overall power
Unit speed 125 250 500 1000 2000 4000 8000 dB(A)
1 55 50 42 37 37 31 30 46
FWD 08 2 57 54 47 40 30 38 40 50
3 58 57 50 42 32 40 43 53
1 57 51 45 42 34 33 28 48
FWD 10 2 58 54 48 45 38 39 35 51
3 60 58 50 48 40 42 39 54
1 57 51 45 42 34 33 28 48
FWD 12 2 58 54 48 45 38 39 35 51
3 60 58 50 48 40 42 39 54
1 56 62 50 48 39 38 36 56
FWD 14 2 61 66 55 53 47 46 45 60
3 63 69 58 56 50 50 49 63
1 57 63 51 49 40 39 37 57
FWD 20 2 61 66 55 53 47 46 45 60
3 63 69 58 56 50 50 49 63
Intake
Measurement conditions:
Measurements taken at the horizontal air intake.
Fan Power level in dB(A), per Hz frequency band Overall power
Unit speed 125 250 500 1000 2000 4000 8000 dB(A)
1 56 55 55 53 46 45 42 57
FWD 08 2 63 62 60 60 53 53 53 64
3 66 65 63 62 56 55 57 67
1 62 58 55 58 51 48 44 61
FWD 10 2 66 63 60 62 56 55 52 66
3 70 67 63 65 59 59 57 69
1 62 58 55 58 51 48 44 61
FWD 12 2 66 63 60 62 56 55 52 66
3 70 67 63 65 59 59 57 69
1 66 65 65 65 57 50 46 68
FWD 14 2 73 72 69 71 64 59 57 74
3 78 76 73 75 69 64 63 78
1 68 72 64 64 56 52 50 69
FWD 20 2 76 76 68 71 65 61 61 75
3 78 79 71 74 69 66 66 78
CG-SVU010C-GB
Chilled Water Reset (CWR)
If:
Reset Ratio = -70%
Start Reset =32.22 °C
TOD =37.77°C
Maximum Reset =9.44 °C
How many Degrees of Reset will there be?
Degrees of Reset = Reset Ratio*(Start Reset - TOD)
Degrees of Reset = -.7*(32.22-37.77)
Degrees of Reset = 3.89

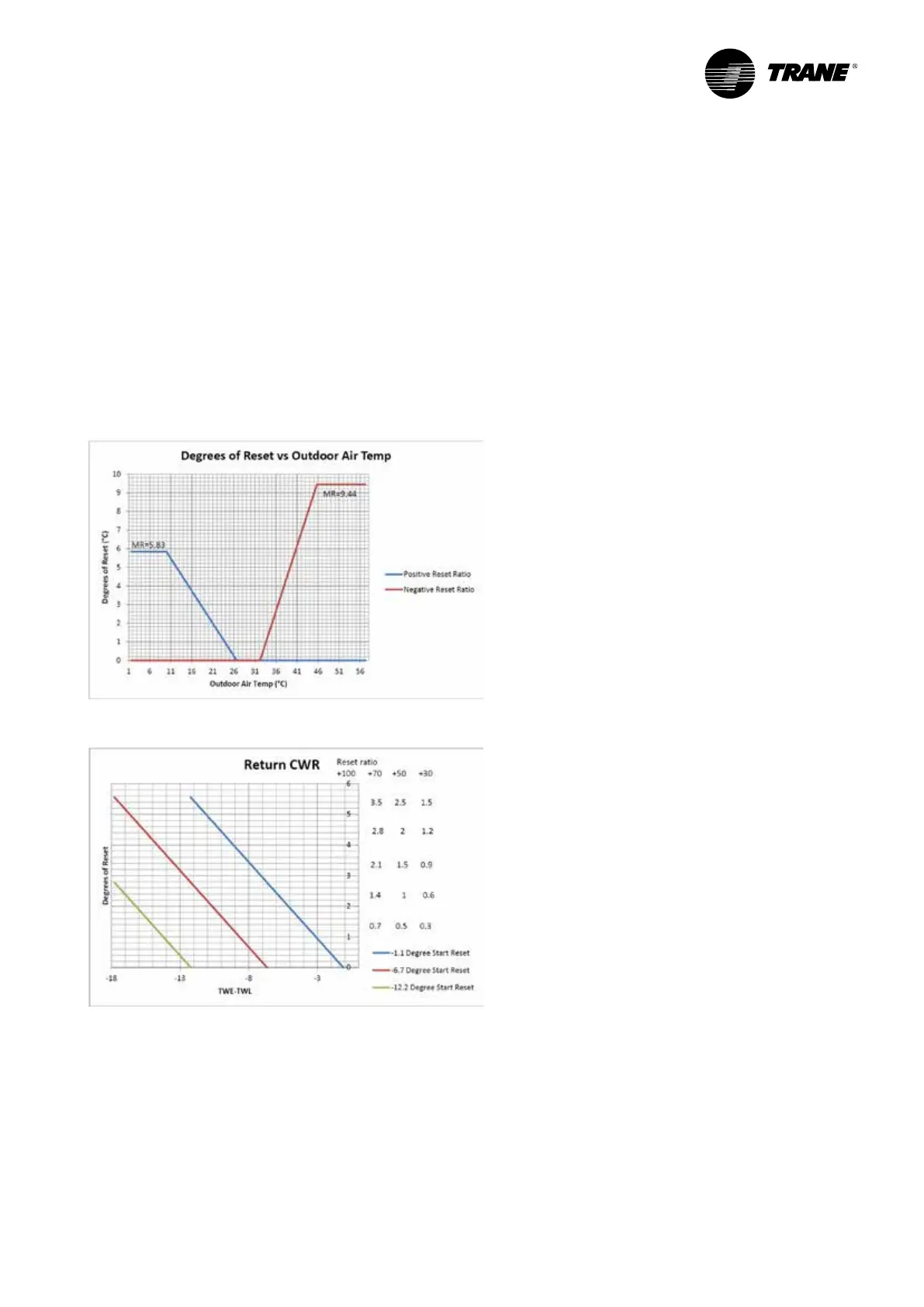

The following graph illustrates the reset functions of the above examples:
The following graph shows the reset function for Return Chilled Water Reset:
Note: This graph assumes Maximum Reset is set to -6.7°C.
TWE-TWL is the difference between the evaporator entering water temp and the evaporator leaving water temperature.
Using the Equation for calculating CWR for Return Water Temp
Example of Calculating Reset for Return Water Temp:
If:
Reset Ratio = 50%
Start Reset = -6.67°C
TWE = 18.3°C
TWL = 7.22°C
Maximum Reset = 4.44°C
