* The above figure for reference purpose only.

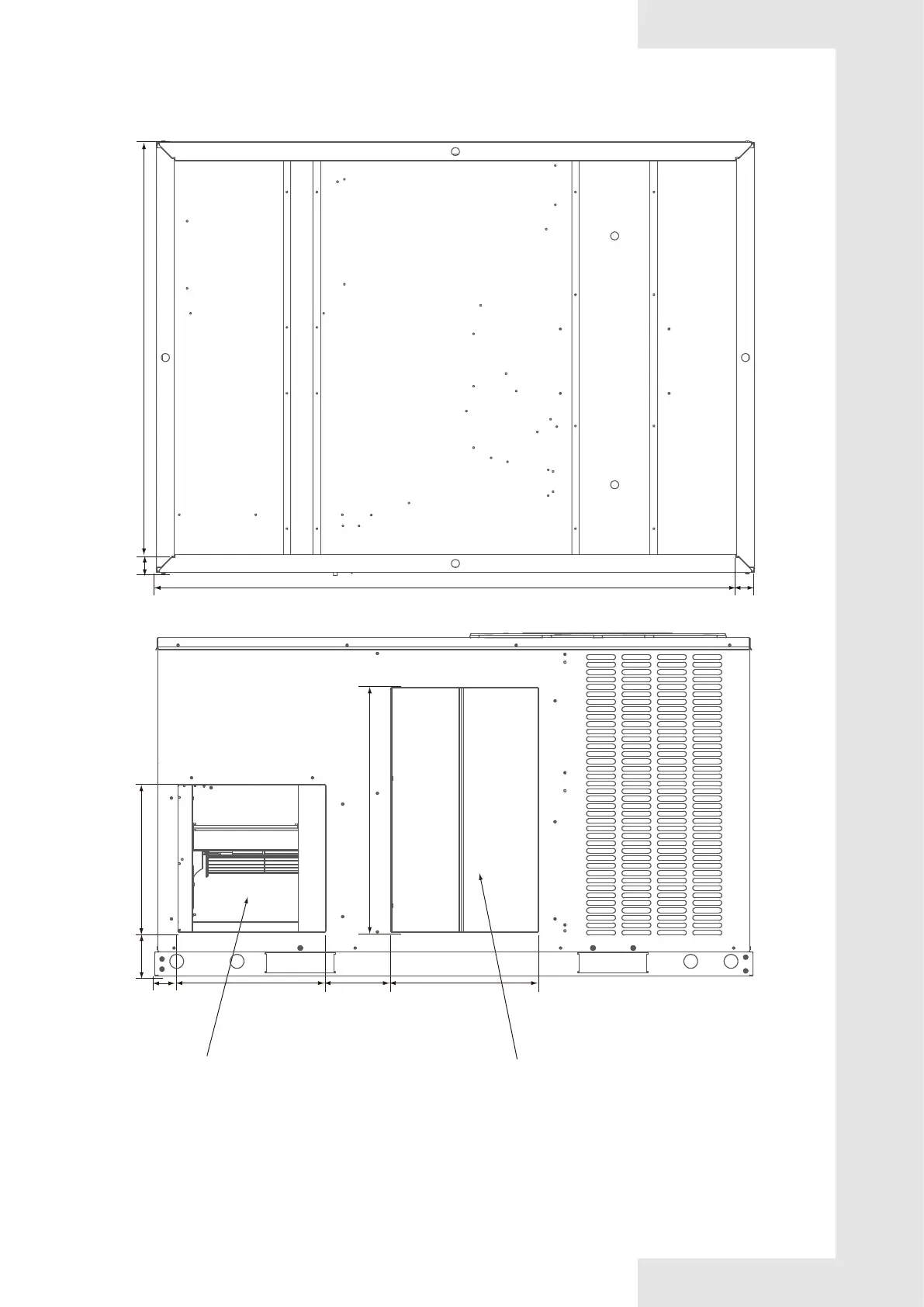

Fig. 2-5 Dimensions Back and Bottom
Bottom View
56-3/4″
1-3/4″
1-3/4″
40-1/4″
Back View
Side supply
air opening
Side return
air opening
2-1/4″ 14-1/2″
4-1/4″ 14-1/2″
24″
14-1/2″6-5/16″
Unit size: 042, 048, 060
