Trane 15 Series User Manual

These diagrams are subject to change without notice, please refer to the diagram supplied with the unit.
N(1)
N(1)
3
NOTE: Motor ground only
applies to metal clad
motors.
NOTE: Motor ground only
applies to metal clad
motors.

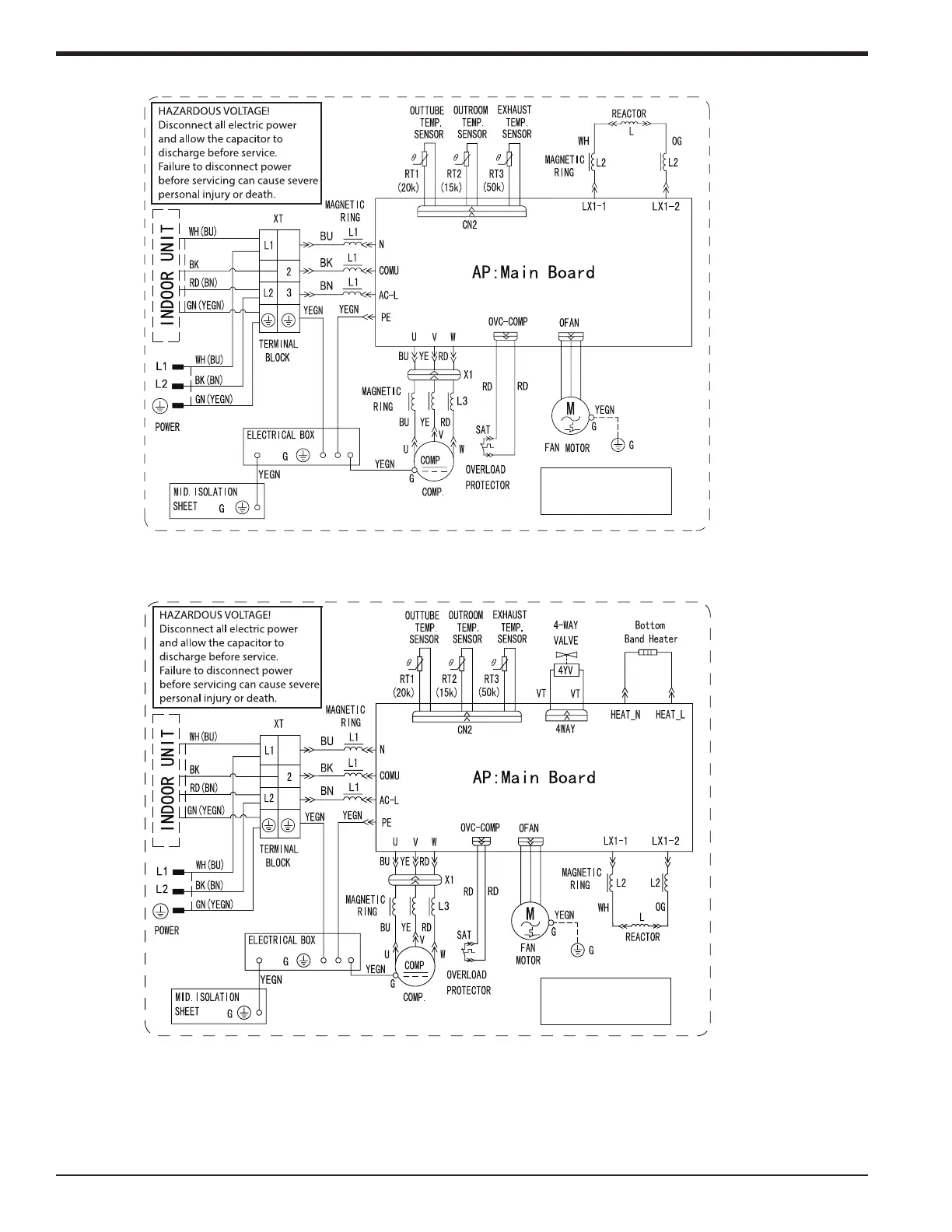

Outdoor Cooling Only Unit 9K-12K
Outdoor Heat Pump Only Unit 9K-12K
NOTE: The wiring diagrams in this guide are included as a reference. The manufacturer
has a policy of continuous product and product data improvement and reserves the right
to change design and specifications without notice. Always check the unit nameplate and
wiring diagram for the actual unit requirements.
32 88-M4MHW15-1D-EN
Installer's Guide

Trane 15 Series Specifications

General

Refrigerant	R-410A
HSPF	Not Applicable
SEER Rating	Up to 16.0
Cooling Capacity	1.5 to 5 tons
Sound Level	72 dB
Stages	Single-Stage
Warranty	10 year limited warranty on compressor
