Trane 15 Series - Page 36

30 9/16
21 1/4
12 3/5
82
11 1/4
20
10 1/8
Unit: inch
35
13 3/8
27 9/16
15 5/8
38
14 5/16
22
9K-12K Outdoor Units
18K-24K Outdoor Units

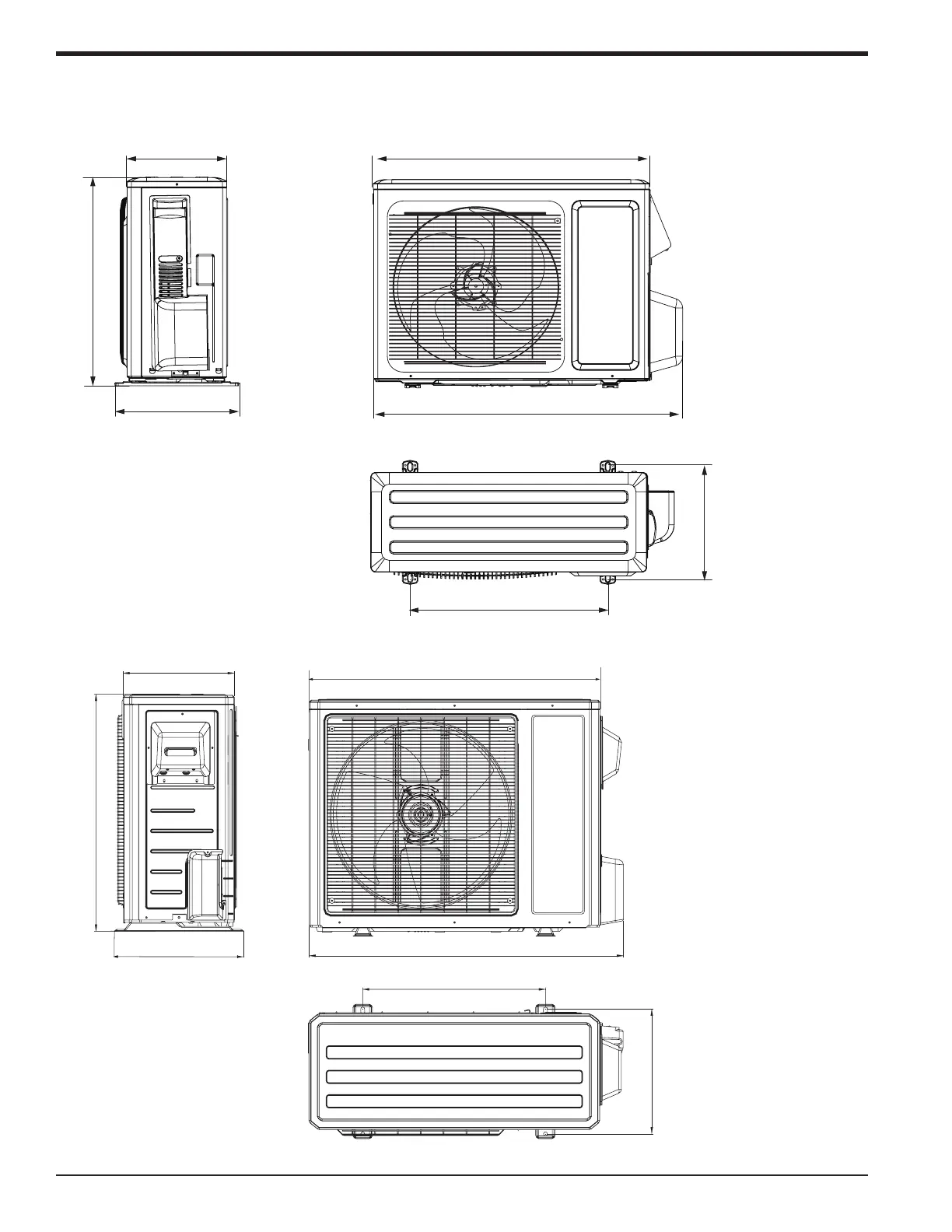

Outdoor Unit Dimensions
36 88-M4MHW15-1D-EN
Installer's Guide
