14 MS-SVN056C-EN
Cassette Unit Installation

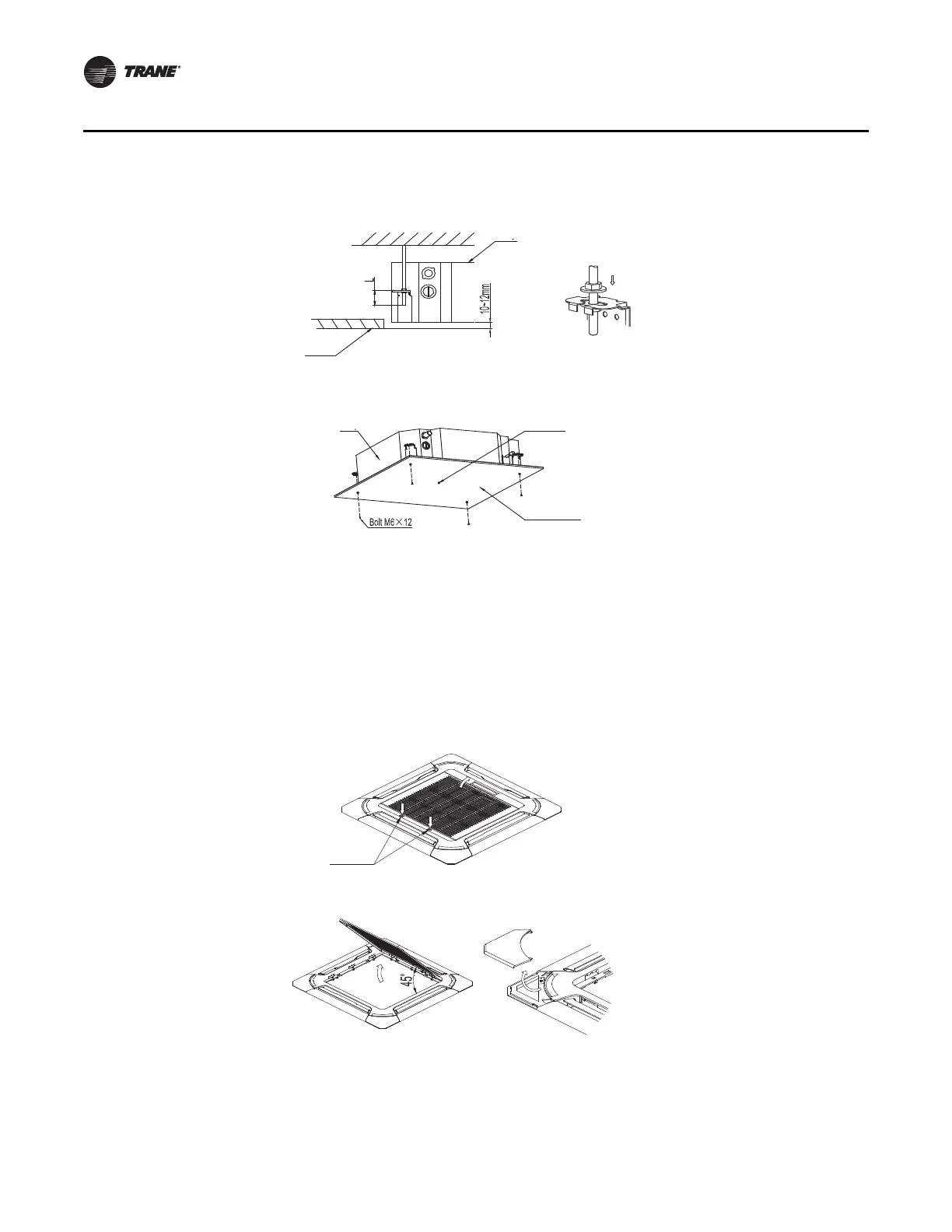

Panel Installation
Note: Never place the panel face down on the floor or against a wall or heavy object.
Protect it from being hit or being scratched.
1. Air grill removal
• Slide both sliding bars simultaneously towards the center and then lift them.
• Lift the air grill at an angle of 45 degrees and remove it.
2. Remove the 4 corner installation panels.
• Remove the screws, loosen the cable/wiring from the four corner panels, and proceed to
remove panels.
Body
Ceiling
Body
Center hole
Carton template
To Next Page
