Convertible Unit Installation
Convertible Unit Installation
Location

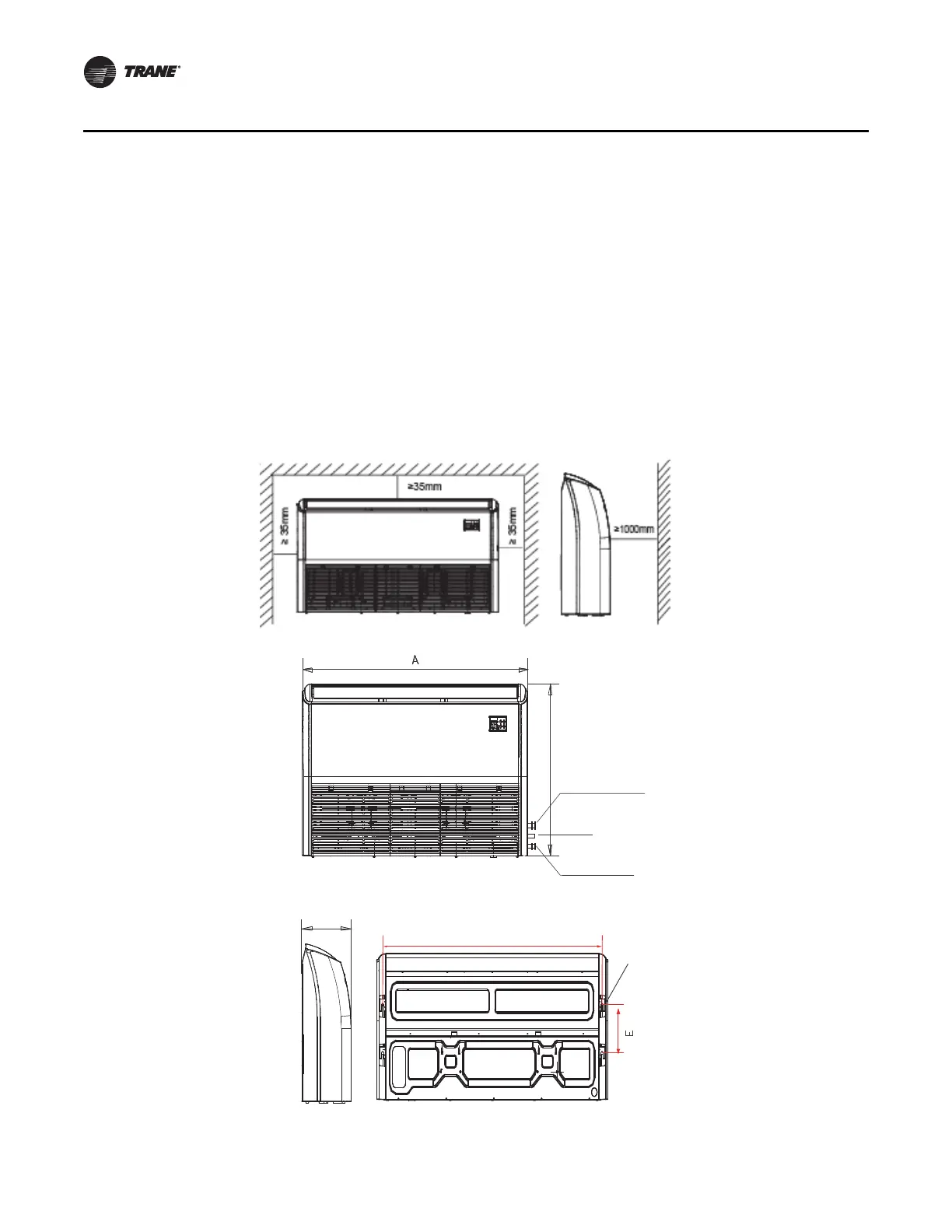

The unit must be installed in a place that complies with the following requirements:
•Full clearance for installation and maintenance procedures
• Unobstructed inlets and outlets and also free of outdoor air currents
• Appropriate capacity to allow the flow of air to reach the space designated for air conditioning
• Easy removal of all connecting and draining piping
• Space devoid of radiation and heat sources
Note: Keep the unit at a distance of at least 1 meter away from TV sets and radios to
avoid interference from sound and images coming from these devices.
B
E. Refrigerant pipe
connection
(D. gas side)
D. Refrigerant pipe
connection
(E. liquid side)
Draining point
C
D
hook
