Installer’s Guide

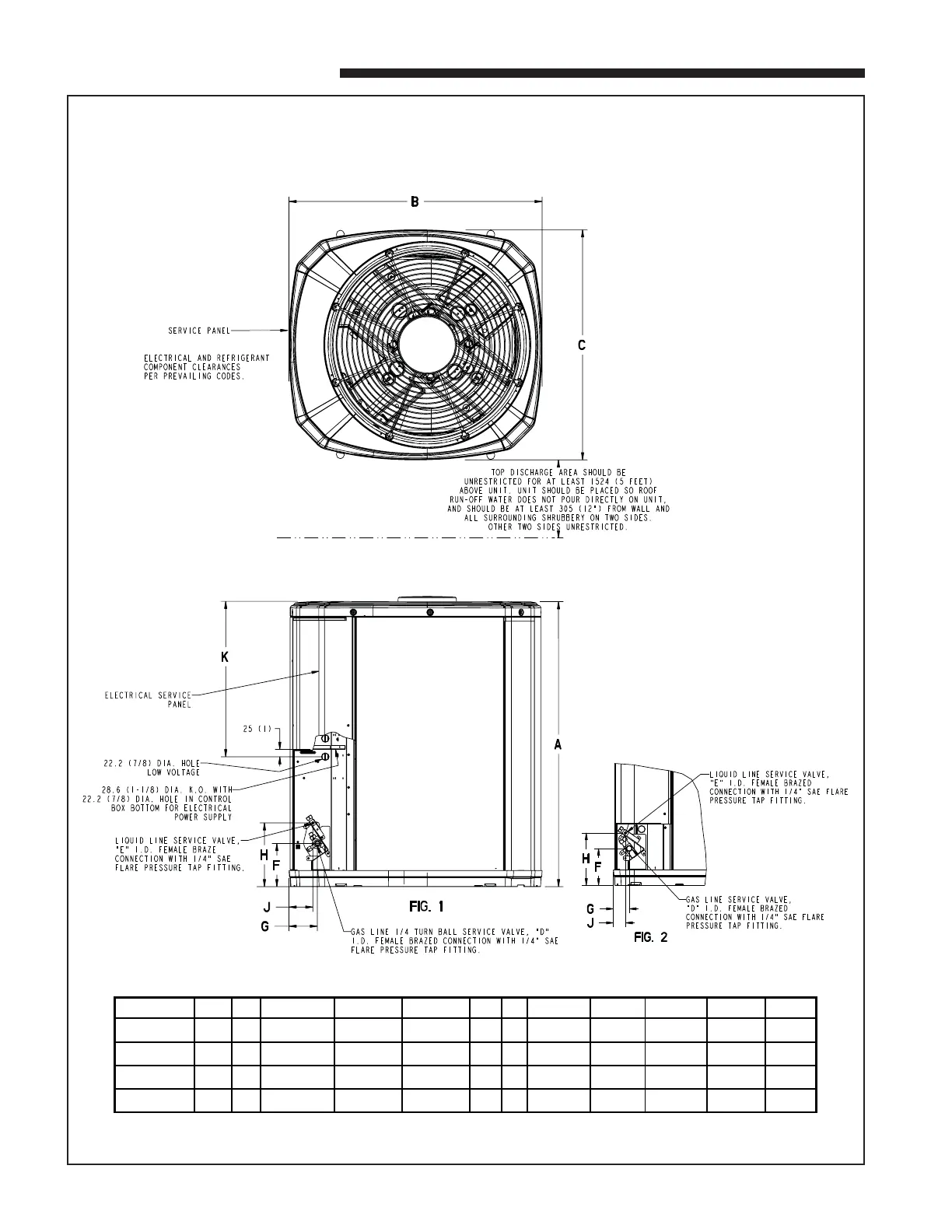

2TWA0030,40,50, & 60AD OUTLINE DRAWING
Note: All dimensions are in MM (Inches).
From Dwg. 21D153074 Rev. 5
MODELS BASE FIG. A B C D E F G H J K
2TWA0030AD 2 2 730 (28-3/4) 724 (28-1/2) 651(25-5/8) 7/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TWA0040AD 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 137 (5-3/8) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2TWA0050AD 4 1 841 (33-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2TWA0060AD 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
