18-BC51D5-5 7
Installer’s Guide

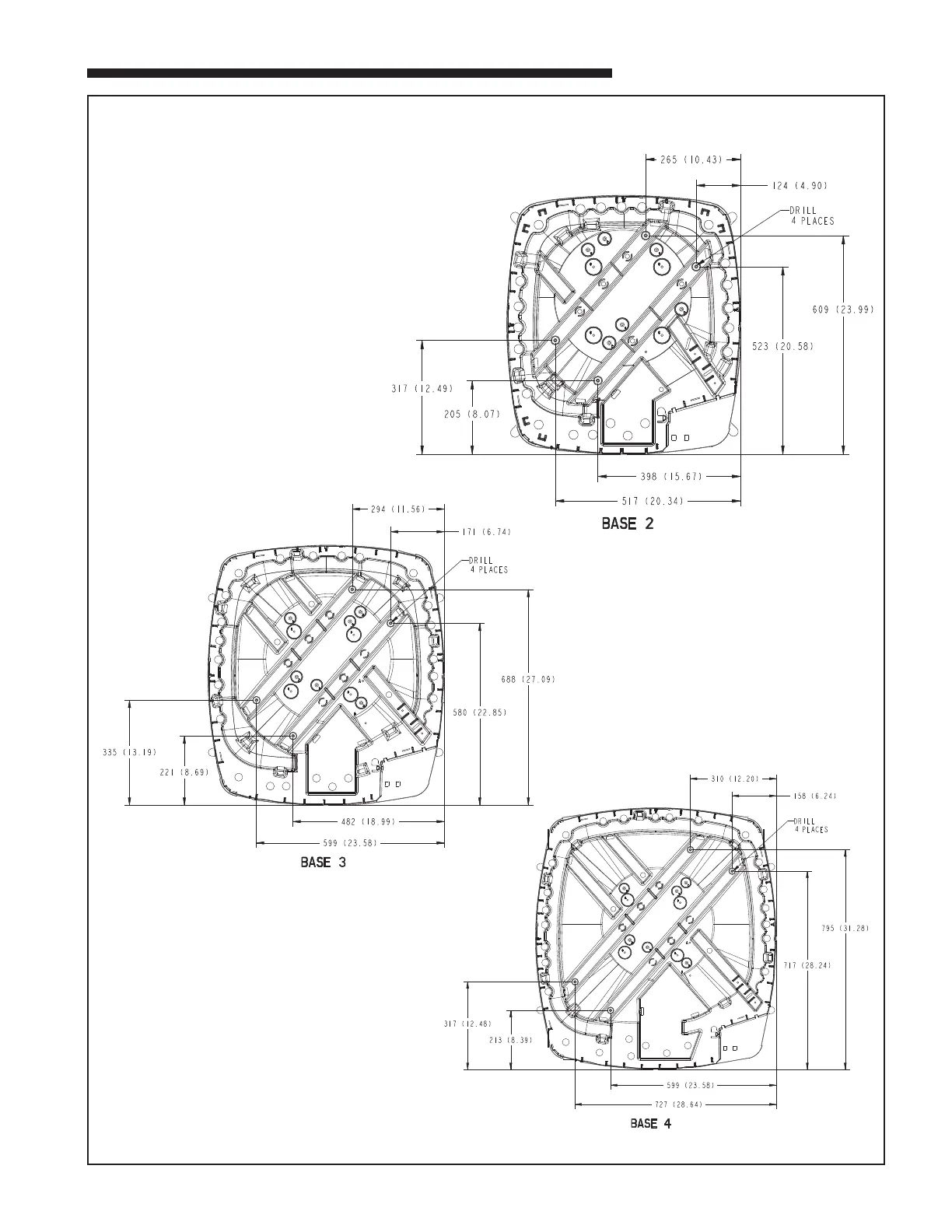

MOUNTING HOLE LOCATION
Note: All dimensions are in MM (Inches).
NOTE: For model base size,
see table on page 6.
From Dwg. 21D152989 Rev. 0
