Trane 2TWZ9 - 2 TWZ9 Outline Drawing

6 18-BC53D1-2
Installer’s Guide

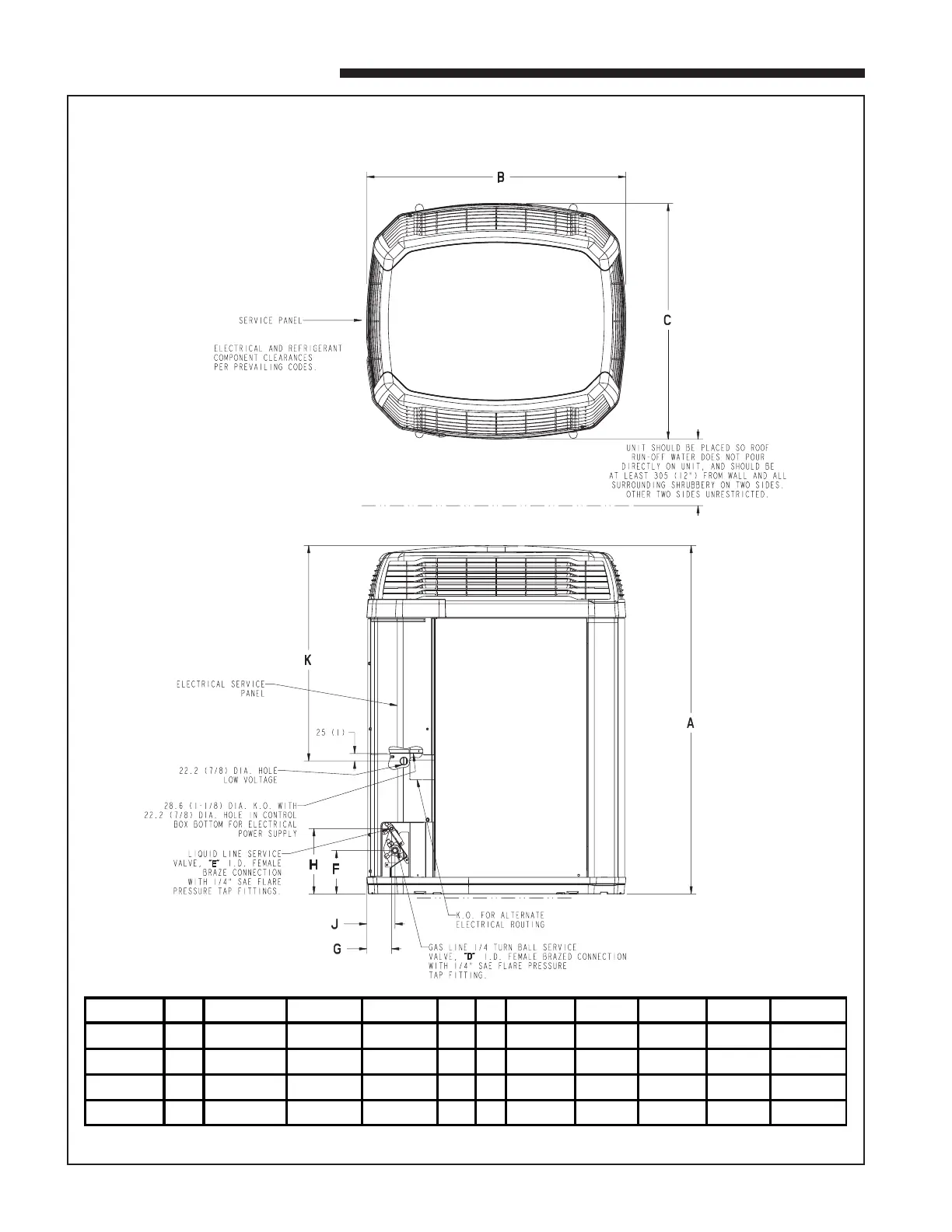

2TWZ9 OUTLINE DRAWING
NOTE: ALL DIMENSIONS ARE IN MM (INCHES).
From Dwg. 21D152635 Rev. 11
MODELS BASE A B C D E F G H J K
2TWZ9030B 4 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 933 (36-3/4)
2TWZ9036B 4 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 933 (36-3/4)
2TWZ9048B 4 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 933 (36-3/4)
2TWZ9060B 4 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 33 (36-3/4)
