Trane 2TWZ9 - Mounting Hole Location

Trane 2TWZ9
8 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
18-BC53D1-2 7
Installer’s Guide

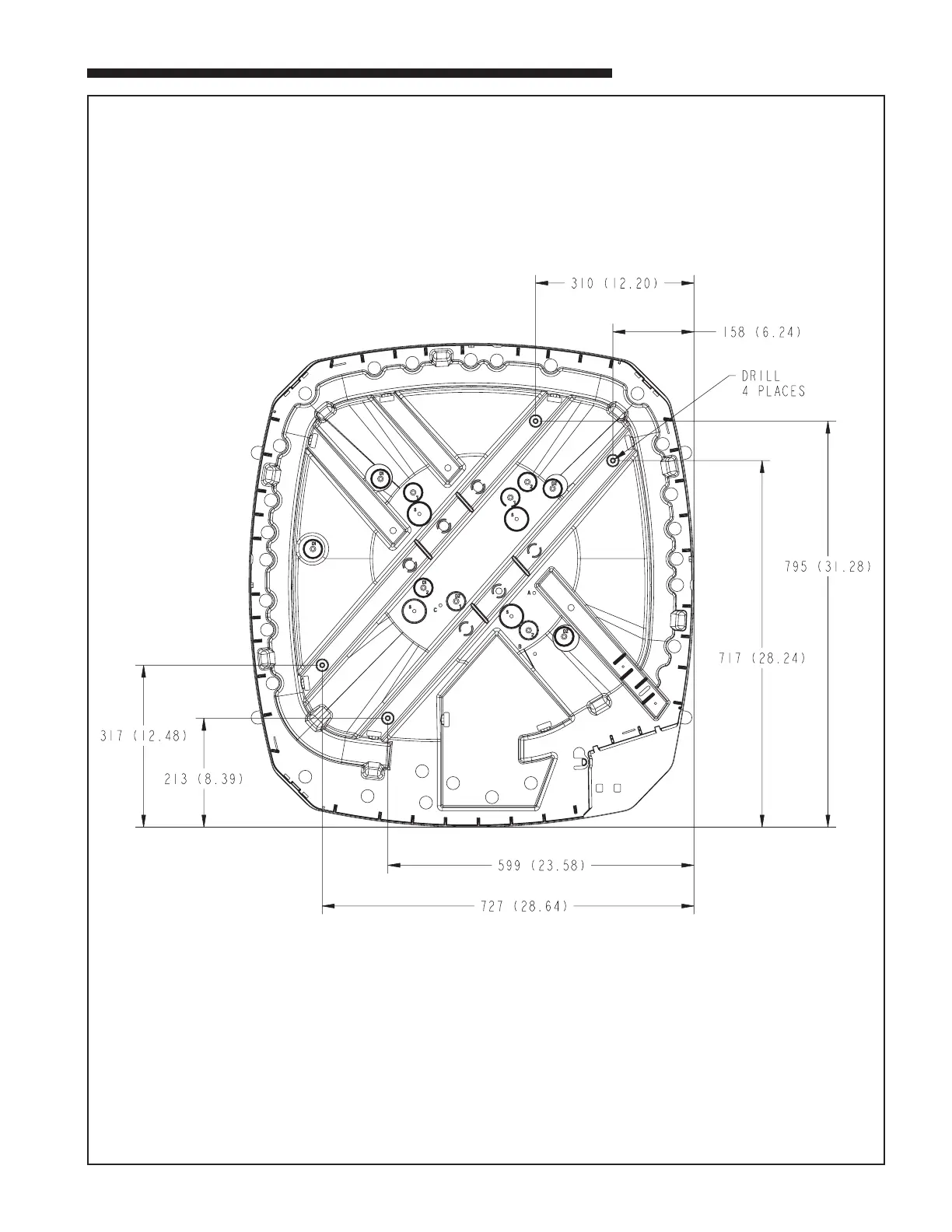

MOUNTING HOLE LOCATION
NOTE: ALL DIMENSIONS ARE IN MM (INCHES).
NOTE: For model base size,
see table on page 6.
From Dwg. 21D152637 Rev. 1
