Page 14
Installer’s Guide

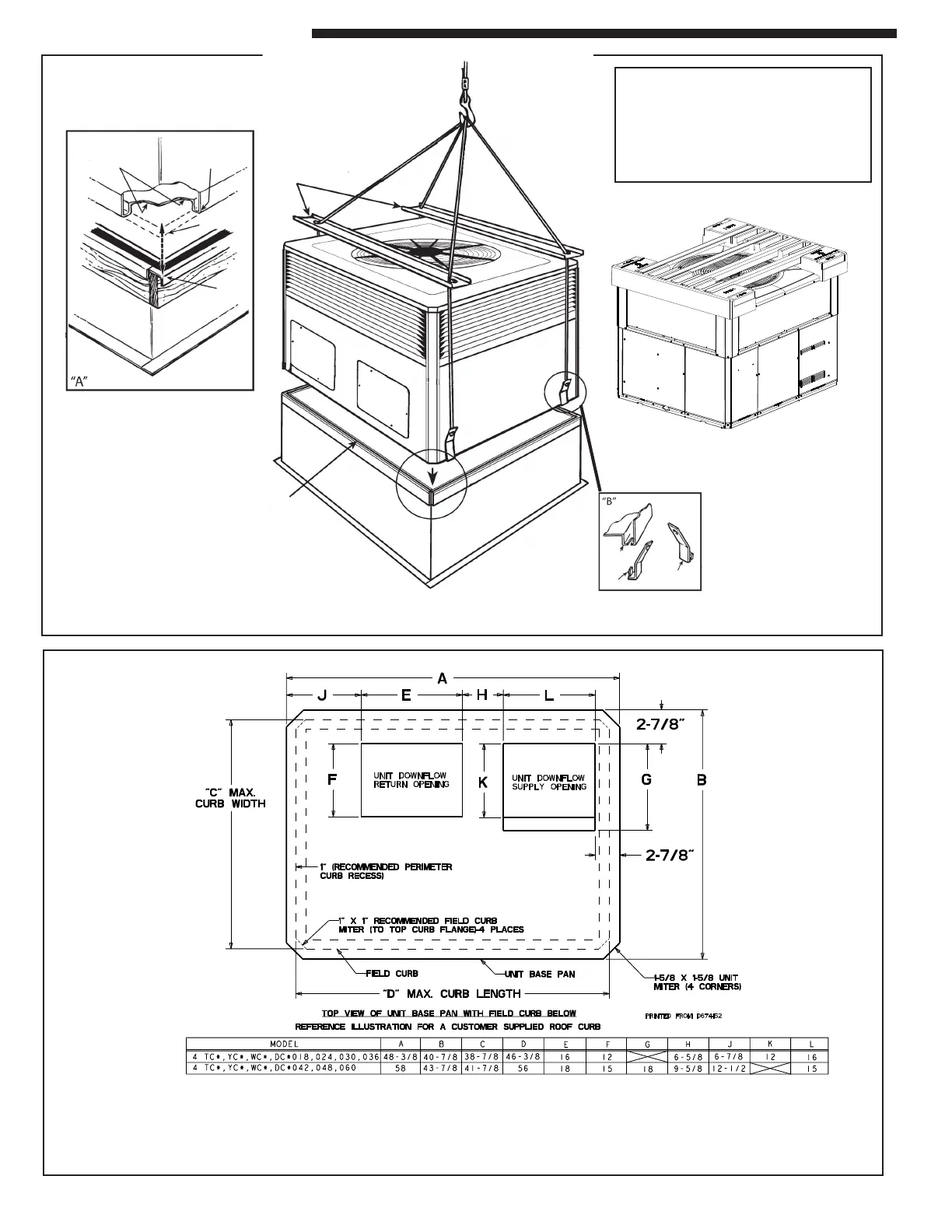

Figure 10. Lifting and Rigging
This drawing was prepared by the manufacturer in order to provide detail regarding job layout only. This drawing is not
intended to be used as a basis to construct, build or modify the item depicted in the drawing. The manufacturer is not
responsible for the unauthorized use of this drawing and expressly disclaims any liability for damages resulting from
such unauthorized use.
Gasket Seal
Spreader Bars
Base of unit
rest on top of
curb rails
Drip lip on
perimeter of
unit
Top shipping skid attached to unit
IMPORTANT: To prevent damage
to the sides and top of the unit when
hoisting, retain the top shipping skid
on the unit or use “spreader bars” as
shown in these illustrations.
Figure 11. Curb Dimensions
Drip Lip
Dimple
BAYLIFT002A
Lifting Lugs
